Cambo CS-32 Instruction Manual

Please read this manual carefully before using the Cambo CS-31> system!
Warnings
! ! ! !
Avoid exposure off direct sunrays on the loupe, the loupe (convex lens) acts as a burning-
Only "click off" the CS-30 loupe sideways, thus from "left to right" or from "right to left", DO NOT
"click off" the loupe "top to bottom" or "bottom to top", this will damage the CS-30 housing.
Overview parts

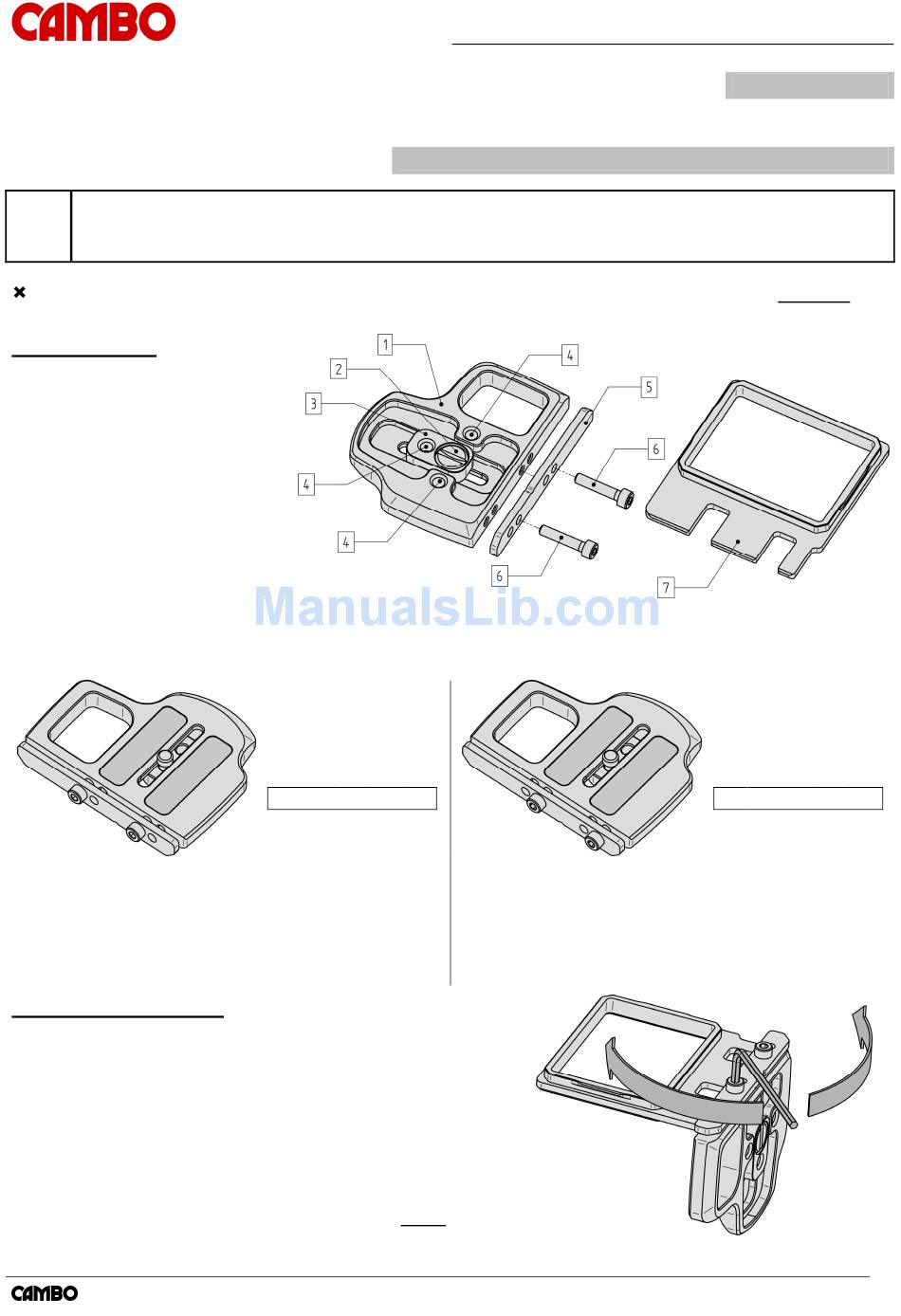

1 Base Plate
2 Camera Screw (1/4" 20 WW)
3 Screw Offset Adapter
4 Mounting Hole (1/4" 20 WW)
5 Clamp Plate (of the frame)
6 Hex Screw

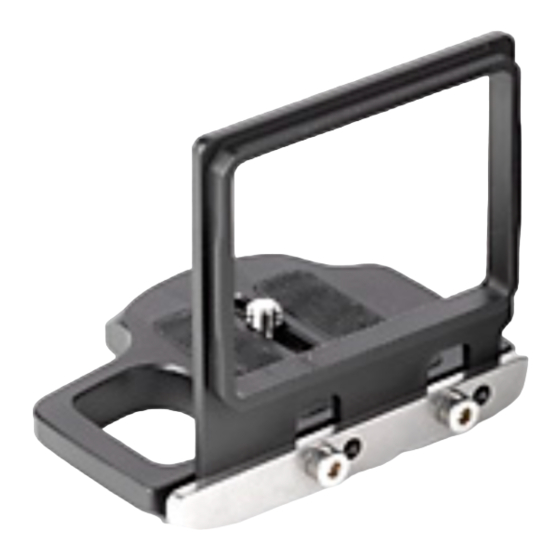

7 Mounting Frame CS-30 Loupe
(The image shows the CS-33 high frame)
8 Hex key (3mm DIN911)
To increase the compatibility with different camera bodies, the "clamp plate" can be mounted in two different
positions, according the images below. The positions of the "hex screws" relate to a particular camera model and
frame type. The camera models, "screw positions" and "frame type" are stated below.
Camera model Screw position
Canon 1D MKIV Left-Left
Canon 5D MKII Left-Left
Canon 7D Left-Left
Canon 550D Left-Left
Pentax K-x Left-Left
Mounting instructions
Note: in this instruction we use a Canon 5D MKII body as example, the instruction
steps are similar for other camera models (except for the positioning of the "hex
screws" and "frame type" used).
Note: Do not over tighten the hex screws when clamping the "mounting frame", this
will damage the "clamp plate".
Please set the screws in the position related to the used camera
model using the provided "hex key" (in this example its in the left-left
position). Please slide the frame (in this example a CS-33 high
frame) between the "clamp plate" and "base plate" in a way that the
screws are positioned in the slots of the frame, than gently tighten
the "hex screws".
CAUTION
glass and will damage the LCD surface.
= Hex screw
●
= Empty hole
○
L = Left
R = Right
● ○ ● ○
L L
Frame type
CS-34 1D frame
CS-33 high frame
CS-32 low frame
CS-32 low frame
CS-32 low frame
CAMERA MOUNTING SYSTEM CS-30 VIEWING LOUPE
INSTRUCTION MANUAL
(when using the CS-30 loupe)
Camera model Screw position
Nikon D300s Right-Right
Nikon D90 Right-Right
Pentax K-7, K-5 Right-Right
Canon 60D Right-Right
Instruction Manual CS-31> Camera Mounting Frame
CS-32/33/34
EN
= Hex screw
●
= Empty hole
○
L = Left
R = Right
○ ● ○
R
Frame type
CS-33 high frame
CS-32 low frame
CS-32 low frame
CS-32 low frame
●
R
