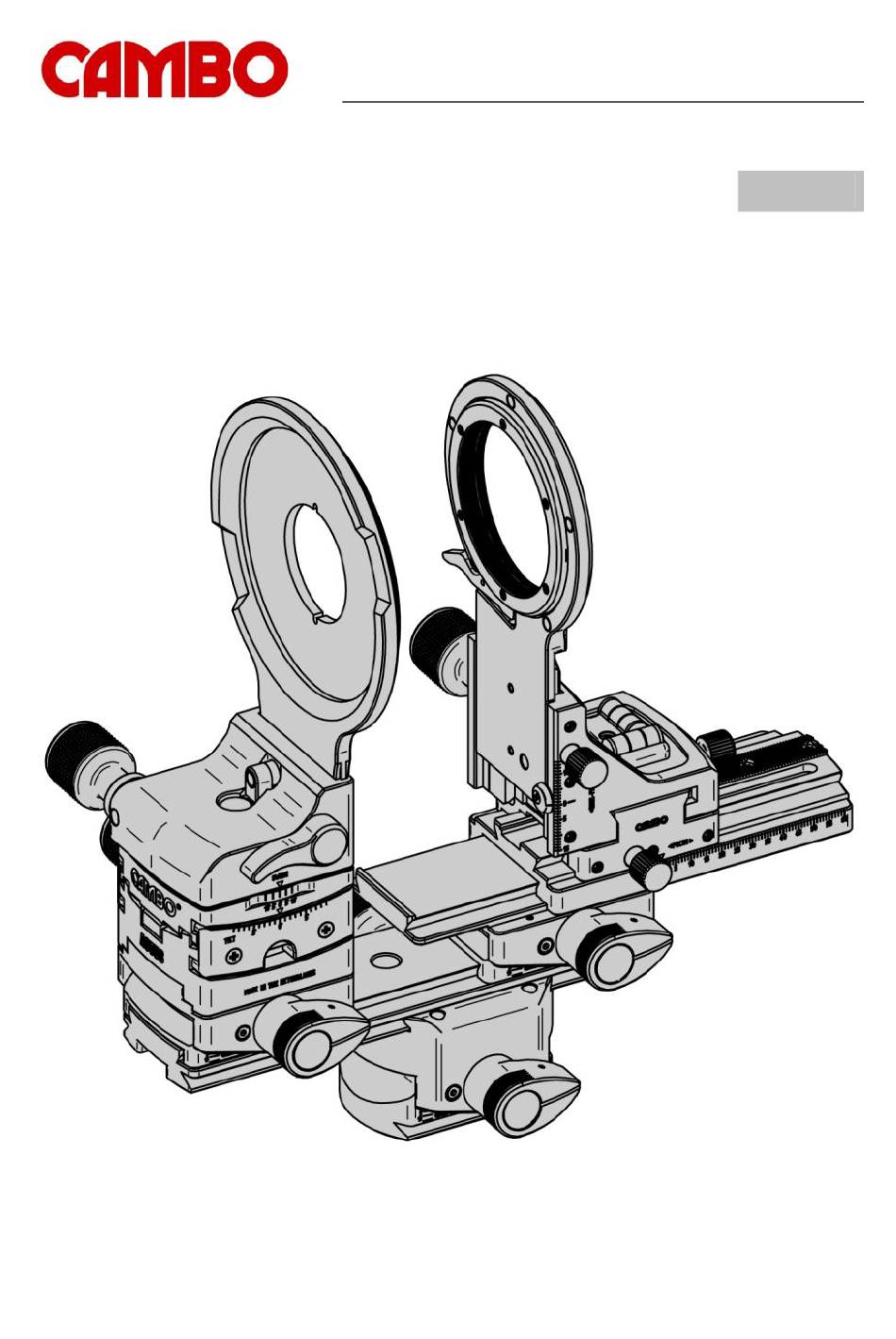

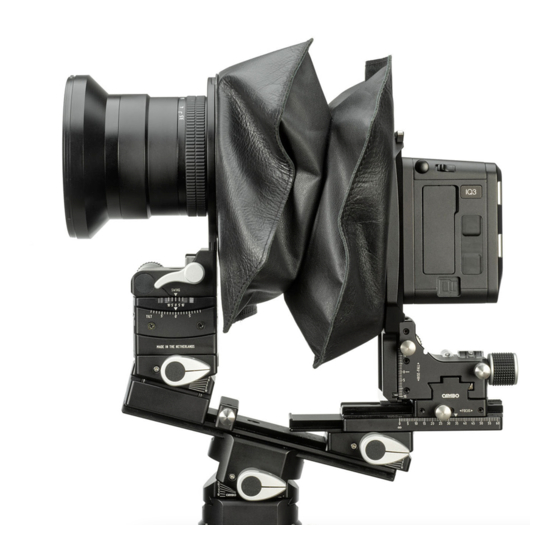

- Page 1 AC-375 Full Base Tilt For Actus-B, -G and DB INSTRUCTION MANUAL Please read this manual carefully before using the AC-375! Version 1.00...
- Page 2 Thank you for purchasing a Cambo product The AC-375 Full base tilt kit is an additional kit to the Actus-B, Actus-G or Actus-DB. This kit allows the front and rear standard, as well as the complete camera, to tilt +15º / -15º with fixed increments of 5º. The AC-375 also extends the telescopic rail system with 42mm extra travel.
- Page 3 Removing the rear standard Figure 2. Removing the rear standard. To remove the rear standard [4] from the Actus, simply slide the rear standard over the front end of the rail.
- Page 4 Reassembling the rear standard Figure 3. Installing the rear tilt unit. Start by installing the rear base tilt unit [7] to the Actus rail. Remove the M2x4 [5] from the rear base tilt unit by using the supplied 1,5mm Allen key [6]. Slide the rear base tilt unit over the rail until the rear base tilt unit reaches the end stop.
- Page 5 Reassembling the front standard Figure 4. Installing the spacers.(Left, Actus-B, Right, Actus-G and Actus-DB) Before fixing the tilt unit to the front standard, make sure the tilt unit is fixed in the 0º position. Keep the tilt unit fixed in the 0º position at all time during assembly.
- Page 6 To complete the full base tilt kit, the bottom tilt unit (See fig.6. [14]) can be fit to the Actus rail using the Arca compatible clamp. The bottom of the bottom tilt unit is fit with an Arca compatible dove tail to fit any Arca compatible tripod head like, for example, the Cambo PCH gear head.
- Page 7 Actus with AC-375 added features Figure 6. AC-375 Full base tilt unit. Now the AC-375 Full base tilt kit is assembled you have added a front [8] and rear base tilt unit [7] which allow the front and rear standards to tilt to a maximum of +/- 15º...
- Page 8 This instruction manual is prepared with care, although no responsibility, financial or otherwise, is accepted for any consequences related the information stated in this instruction manual. All specifications in this instruction manual are subject to change without notice. For more information please visit the Cambo web site: www.cambo.com...
