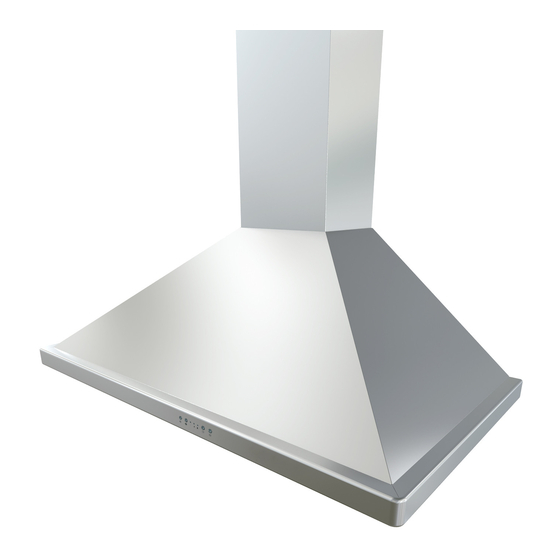

- Page 1 MODEL #. MH00630AS MH00636AS MH00730AG MH00736AG Installation, Use and Care Guide READ AND SAVE THESE INSTRUCTIONS 2014.NOV...
- Page 3 SAFETY NOTICE ..............LIST OF MATERIALS ............INSTALLATION Ducting Calculation Sheet ........Mounting Height & Clearance ........ Ducting Options ......................Mounting the Hood MH006 ........Mounting the Hood MH007 ......11 Ductless Recirculating ..........FEATURES & CONTROLS Electronic Controls .............
- Page 4 READ AND SAVE THESE INSTRUCTIONS WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT USE THIS FAN WITH ANY SOLID-STATE CONTROL DEVICE. WARNING TO REDUCE THE RISK OF FIRE ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING: a.
- Page 5 WARNING TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK. CAUTION attics, crawl spaces or garages. OPERATION and loose clothing. The manufacturer declines all responsibility in the event of failure to observe the instructions given here for installation, maintenance and suitable use of the product. The manufacturer further declines all responsibility for injury due to negligence and the warranty of the unit automatically expires due to improper maintenance.
-
Page 6: Hardware Package Contents
MODELS: MH006 and MH007 PARTS SUPPLIED 1 - Hood with internal blower 1 - Duct cover wall bracket 1 - Duct cover assembly (top and bottom) 1 - 6” round backdraft damper (pre-installed) 2 - 50W GU-10 halogen light bulbs 2 - Aluminum mesh filters 1 - Canopy, glass (MH007) 1 - Hardware package... - Page 7 Equivalent number Equivalent number Duct pieces Duct pieces length x used T otal length x used T otal 3- 1/ 4” x 10” 1 Ft. 6”- 8” Round 30 Ft. Rect., wall cap straight with damper 7” Round, 1 Ft. 6”- 8”...
- Page 8 Minimum mount height between range top to hood bottom should be no less than 26”. Maximum mount height should be no higher than * Min. ducted (A) 34”. Min. recirc. (B) Max. It is important to install the hood at the proper mounting height.
- Page 9 WARNING FIRE HAZARD NEVER exhaust air or terminate duct work into spaces between walls, crawl spaces, ceiling, attics or garages. All exhaust must be ducted to the outside, unless using the recirculating option. Use single wall rigid Metal ductwork only. Some Ducting Options Roof Pitch w/ Flashing &...
- Page 10 Standard Duct Cover Min. ducted 27 ” Min. recirc. 32” Max. ducted 42 ” RHEX001S Extension Min. ducted 46 ” Min. recirc. ” Max. ducted 80”...
- Page 11 Standard Duct Cover Min. ducted 23” Min. recirc. 27” Max. ducted 42” RHEX003S Extension Min. ducted 41 ” Min. recirc. ” Max. ducted 80”...
- Page 12 CAUTION: At least two installers are required due to the weight and size of the hood. Duct Cover Bracket 1. Measure from range top to hood bottom and mark line A. 3-1/2" 2" 2. Plum and mark center line. 4. Mark mounting spread from C/L on line B. From center 12"...
- Page 13 CAUTION: At least two installers are required due to the weight and size of the hood. 1. Measure from range top to hood bottom and mark line A. 2. Plum and mark center line. 15-3/8 do not tighten all the way. Note: Wood blocking may need to be added behind the drywall if no studs are present.
- Page 14 Ductless recirculation is intended for applications where an exhaust duct work is not possible to be installed. When converted, the hood functions as a recirculating hood rather than an exhaust hood. Fumes and exhaust circulated back within the home. We recommend to ALWAYS exhaust air outside of the home by employing existing or installing new duct is not possible should you recourse to converting the hood into a recirculating hood.
- Page 15 Blower On/Off Lights Bright/Dim/Off Blower Speed Selection Delay Off Timer Blower On/Off Press to turn blower on and off. If lights are on they will also switch off when this button is pressed. Blower Speed Selection Press to cycle through blowers speeds I, II and III Lights Bright/Dim/Off Press to cycle through light levels Bright, Dim and Off...
-
Page 16: Surface Maintenance
SURFACE MAINTENANCE: Clean periodically with hot soapy water and clean cotton cloth. Do not use corrosive or abrasive detergent , or steel wool/scouring pads which will scratch and damage surface. For heavier soil use liquid degreaser. After cleaning it is recommended that you use non-abrasive stainless steel polish/cleaners, to polish and buff out the stainless luster and grain. -
Page 17: Replacing Light Bulbs
REPLACING LIGHT BULBS CAUTION: Light bulb becomes extremely hot when turned on. DO NOT touch bulb until switched off and cooled. Touching hot bulbs could cause serious burns. Make sure all power is turned off and bulbs are not hot. stops and falls out. - Page 18 TROUBLESHOOTING PROCEDURES FOR MH006 AND MH007 Issue Cause What to do After installation, 1. The power source is not turned ON. 1. Make sure the circuit breaker and the unit’s the unit doesn’t power is ON. work. 2. The power line and the cable locking connector 2.
- Page 19 MH00630AS MH00636AS MH00730AG/MH00736AG...
- Page 20 DESCRIPTION PART# Replacement Parts Optional Accessories Order replacement parts from us by calling 1.888.750.1698...
- Page 21 STAPLE YOUR RECEIPT HERE Proof of the original purchase Limited Warranty date is needed to obtain service under warranty TO OBTAIN SERVICE UNDER WARRANTY OR FOR ANY SERVICE RELATED QUESTIONS, please call: 1-888-750-1698 Venting Services (referred to herein as “we” or “us”) warrants to the original consumer purchaser (referred to herein as “you”...
