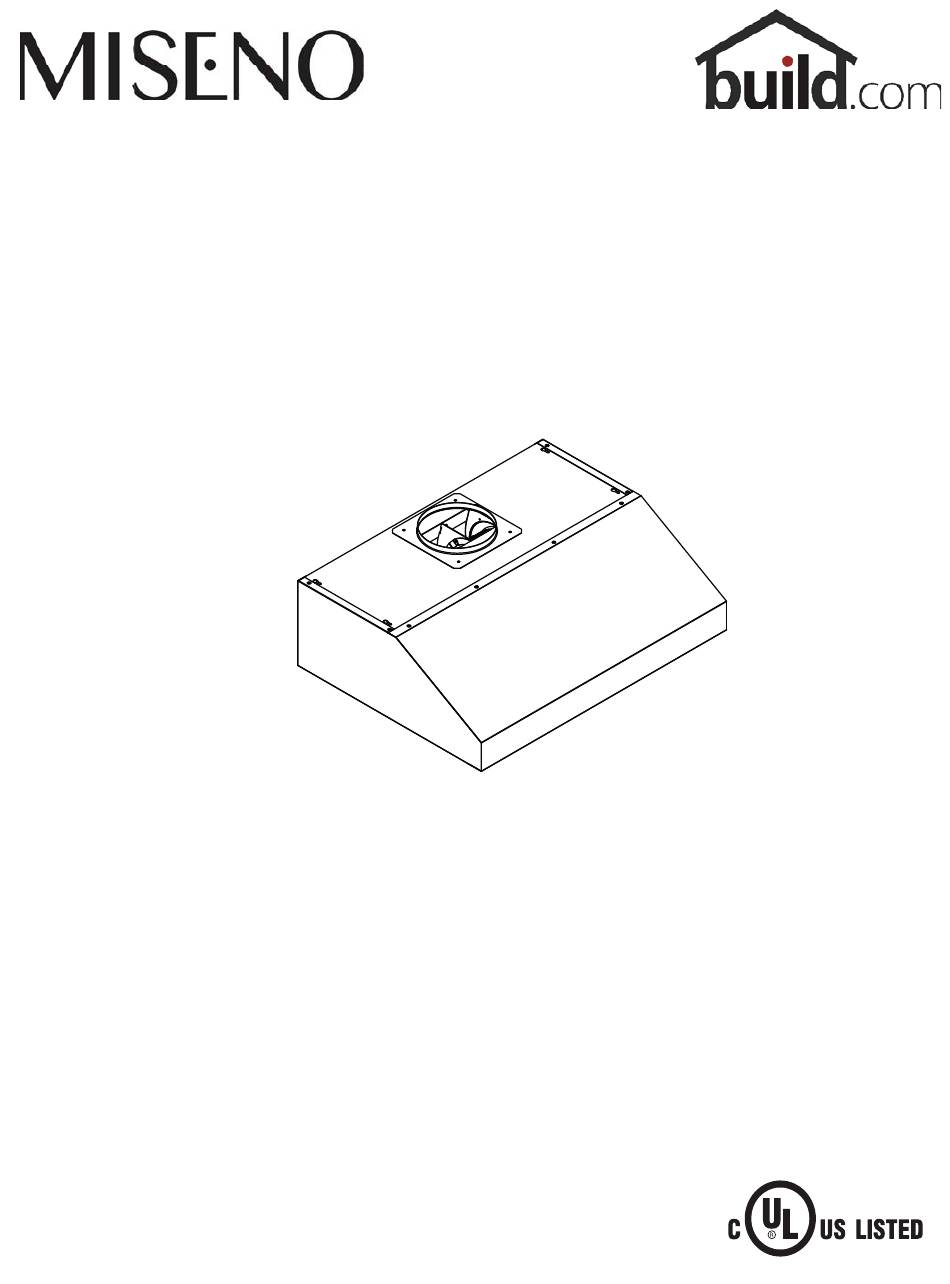

- Page 1 MODEL #. MH70130AS MH70136AS Installation, Use and Care Guide READ AND SAVE THESE INSTRUCTIONS 2014.SEP...
- Page 2 www.build.com...
- Page 3 SAFETY NOTICE ..............LIST OF MATERIALS ............INSTALLATION Ducting Calculation Sheet ........Mounting Height & Clearance ........ Ducting Options ............Specifi cations ............... Electrical ................. Mounting the Range Hood ........Horizontal Conversion 11-12 ..........FEATURES & CONTROLS Rotary Dial ..............MAINTENANCE Cleaning and Filter Removal ........
- Page 4 www.build.com READ AND SAVE THESE INSTRUCTIONS WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT USE THIS FAN WITH ANY SOLID-STATE CONTROL DEVICE. WARNING TO REDUCE THE RISK OF FIRE ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING: a.
- Page 5 WARNING TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK. CAUTION To reduce risk of fi re and to properly exhaust air outside - Do not vent exhaust air into spaces within walls, ceilings, attics, crawl spaces or garages. Not for use over an outdoor grill.
- Page 6 MODELS: MH70130AS, MH70136AS PARTS SUPPLIED 1 - Hood with internal blower 2 - Baf e lters 2 - Halogen light bulbs (pre-installed) 1 - Rectangular starting collar w/damper (for horizontal ducting) 1 - 7” round starting collar (for vertical ducting) 1 - 7”...
- Page 7 Equivalent number Equivalent number Duct pieces Duct pieces length x used T otal length x used T otal 3-1/ 4” x 10” 1 Ft. 6” Round 30 Ft. Rect., wall cap straight with damper 6” Round, 1 Ft. 6” Round, 30 Ft.
- Page 8 www.build.com Minimum mount height between range top to hood bottom should be no less than 26”. Maximum mount height should be no higher than 34”. It is important to install the hood at the proper mounting height. Hoods mounted too low could result in heat damage and fi...
- Page 9 WARNING FIRE HAZARD NEVER exhaust air or terminate duct work into spaces between walls, crawl spaces, ceiling, attics or garages. All exhaust must be ducted to the outside. Use metal ductwork only. Fasten all connections with sheet metal screws and tape all joints with certifi ed Silver Tape or Duct Tape. Some Ducting Options Roof Pitch w/ Flashing &...
- Page 10 www.build.com ” (30“) , 33 ” (36”) 12” 3” 9” elec 3” ” ” (30“) , 35 ” (36”) 15/16 15/16 side ” ” 7/16 ” 13/16 elec back...
- Page 11 ELECTRICAL WARNING All Electrical work must by performed by qualifi ed electrician or person with similar technical know how and background. For personal safety, remove house fuse or open circuit breaker before beginning installation. Do not use extension cord or adapter plug with this appliance. Follow national electrical codes or prevailing local codes and ordinances.
- Page 12 www.build.com For Mounting Under a Kitchen Cabinet 1. Select preferred duct location (vertical or horizontal). 2. Begin installation by removing the baffl e fi lters. 5. Duct 3. Reinforce cabinet with 1”x2” wood strips if additional opening cutout strengthening is required or if cabinets are framed. 4.
- Page 13 This range hood is equipped standard with a 7” round vertical duct option. To convert from 7” round vertical to 3-1/4” x 10” horizontal ducting please following the instructions below. VERTICAL TO HORIZONTAL DUCTING CONVERSION 1. Unscrew (2) screws holding each left and right 2.
- Page 14 www.build.com 7. Picture of blower turned 180 degrees. 8. Position blower inside hood body so that the (4) blower mount nuts line up with the (4) screw holes at back of hood body. 9. Using the (4) previously removed blower screws 10.
- Page 15 1 Blower On/Off/Speed Selection 2 Lights Dim/Bright/Off 1 Blower On/Off/Speed Selection Rotate dial to change speed levels, (1) for low speed, (2) for medium speed and (3) for high speed 2 Lights Dim/Bright/Off Rotate dial to change light settings, (1) for dim light and (2) for bright light...
- Page 16 www.build.com SURFACE MAINTENANCE: Clean periodically with hot soapy water and clean cotton cloth. Do not use corrosive or abrasive detergent, or steel wool/scouring pads which will scratch and damage surface. Do not use products containing chlorine bleach or orange cleaners. For heavier soil use liquid degreaser.
- Page 17 REPLACING LIGHT BULBS CAUTION: Light bulb becomes extremely hot when turned on. DO NOT touch bulb until switched off and cooled. Touching hot bulbs could cause serious burns. Make sure all power is turned off and bulbs are not hot. Remove by turning bulb counter clockwise.
- Page 18 www.build.com TROUBLESHOOTING PROCEDURES FOR MH701 After installation, 1. The power source is not turned ON. 1. Make sure the circuit breaker and the unit’s the unit doesn’t power is ON. work. 2. The power line and the cable locking connector 2.
- Page 19 MH70130AS MH70136AS...
- Page 20 www.build.com DESCRIPTION PART # Replacement Parts Light Bulb MR16 (GU10) 50W (each) Z0B-0020 To order parts, email us at vsupport@ventingservices.com or call us at 1.888.750.1698...
- Page 21 STAPLE YOUR RECEIPT HERE Proof of the original purchase Limited Warranty date is needed to obtain service under warranty TO OBTAIN SERVICE UNDER WARRANTY OR FOR ANY SERVICE RELATED QUESTIONS, please call: 1-888-750-1698 Venting Services (referred to herein as “we” or “us”) warrants to the original consumer purchaser (referred to herein as “you”...
