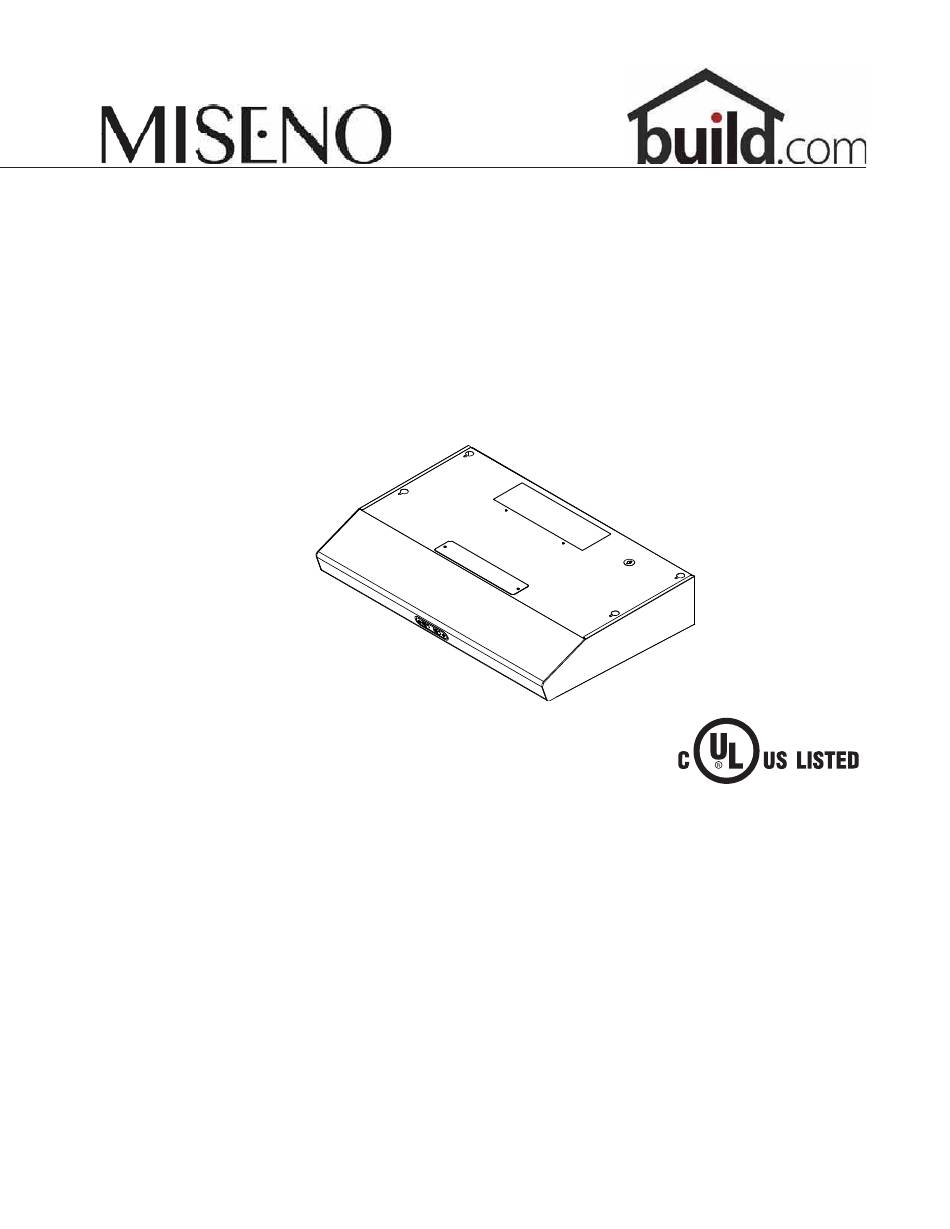

- Page 1 MODEL #. MH20330AS Installation, Use and Care Guide READ AND SAVE THESE INSTRUCTIONS 2015.JUL...
- Page 3 SAFETY NOTICE ..............LIST OF MATERIALS ............INSTALLATION Ducting Calculation Sheet ........Mounting Height & Clearance ........ Ducting Options .......................... Preparing Electrical ............ Preparing Electrical and Ducting ......Converting to Air Recirculating Mode 11-12 ....Mounting the Range Hood ......13 FEATURES &...
- Page 4 READ AND SAVE THESE INSTRUCTIONS WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT USE THIS FAN WITH ANY SOLID-STATE CONTROL DEVICE. WARNING TO REDUCE THE RISK OF FIRE ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING: a.
-
Page 5: Operation
15 or 20 ampere circuit breaker or time delay fuse. Wiring must be 2 wire with ground. Please also refer to Electrical Diagram on product. and install appropriate connector if necessary. MH20330AS - 142 Watts, 1.3 Amps... -
Page 6: Hardware Package Contents
MODELS: MH20330AS PARTS SUPPLIED 1 - Hood 2 - Aluminum Mesh Filters 1 - 6” Round starting collar 1 - 3-1/4”x10” Rectangular starting collar with damper 1 - Hardware package HARDWARE PACKAGE CONTENTS M6 x 2” (4) M6 x 1-1/2” (4) M6 x 1”... - Page 7 Equivalent number Duct pieces Equivalent number Duct pieces length x used T otal length x used T otal 3- 1/ 4” x 10” 1 Ft. 3- 1/ 4” x 10” 5 Ft. Rect., Rect. to straight 6” round transition 6”, 7”, 8”, 10” 1 Ft.
- Page 8 Minimum mount height between range top to hood bottom should be no less than 24”. Maximum mount height should be no higher than 32”. It is important to install the hood at the proper mounting height. Hoods mounted too low could 5-1/2”...
- Page 9 WARNING FIRE HAZARD NEVER exhaust air or terminate duct work into spaces between walls, crawl spaces, ceiling, attics or garages. All exhaust must be ducted to the outside, unless using the recirculating option. Use single wall rigid metal ductwork only. Some Ducting Options Roof Pitch w/ Flashing &...
- Page 10 3 1/4”x10” Rect. Ducting 6” Round Ducting 27 13/16” 27 13/16” 10” 10” elec. C/L of elec. 6” duct 5 7/8” 5 7/8” 6” 2” 2” Air Recirculating Louver Plate Air Recirculating Louver Plate BACK SIDE 20 3/16” 10” 14 3/8” 5 7/8”...
- Page 11 ELECTRICAL WARNING how and background. For personal safety, remove house fuse or open circuit breaker before beginning installation. Do not use extension cord or adapter plug with this appliance. Follow national electrical codes or prevailing local codes and ordinances. Electrical Supply: This appliance requires a 120V 60Hz electrical supply, and connected to an individual, properly grounded branch circuit, protected by a 15 or 20 ampere circuit breaker or time delay fuse.
- Page 12 2. Remove cover from junction box to 1. Remove filters gain access to electrical wiring. 3. If using a cable lock, pry open the 4. If using hood in air recirculating desired electrical knockout either on mode skip steps 4 and 5. top or back of hood.
- Page 13 NOTE: Skip the recirculating preparation pages if you are ducting the air out of your home. 1. Secure each of the (2) spring clips to the An air recirculating kit (optional) must be safety grille body (A). Do this by inserting purchased before using hood in recirculat- the screw through the spring and into the ing mode.
- Page 14 NOTE: Skip this page if you are ducting the air out of your home. 5. Remove each of the 5 screws holding 6. Remove (2) interior recirculating panels. the (2) interior recirculating panels. 7. Place louvered recirculating plate over top opening and secure using the screws previously removed.
- Page 15 For Mounting Under a Kitchen Cabinet (Fig 1) electrical ducting air out of kitchen. Refer to page 10 for details. Duct opening 3. Reinforce cabinet with 1”x2” wood strips if additional cutout strengthening is required or if cabinets are framed. 4.
- Page 16 Blower On/Off/Speed Selection Lights Off/Dim/Bright This switch turns the blower on and off and controls the speed selection. is off, is low speed and is high speed . Lights Off/Dim/Bright is off, is dim and is bright.
-
Page 17: Surface Maintenance
SURFACE MAINTENANCE: Clean periodically with hot soapy water and clean cotton cloth. Do not use corrosive or abrasive detergent, or steel wool/scouring pads which will scratch and damage surface. Do not use products containing chlorine bleach or orange cleaners. For heavier soil use liquid degreaser. After cleaning, you may use non-abrasive stainless steel polish/cleaners, to polish and buff out the stainless Aluminum Mesh Filters never need replacing, they are required to be cleaned every 30 days or more often depending on cooking... -
Page 18: Replacing Light Bulbs
REPLACING LIGHT BULBS CAUTION: Light bulb becomes extremely hot when turned on. DO NOT touch bulb until switched off and cooled. Touching hot bulbs could cause serious burns. Make sure all power is turned off and bulbs are not hot. Remove by turning bulb counter clockwise. - Page 19 TROUBLESHOOTING PROCEDURES FOR MH203 Issue Cause What to do After installation, 1. The power source is not turned ON. 1. Make sure the circuit breaker and the unit’s the unit doesn’t power is ON. work. 2. The power line and the cable locking connector 2.
- Page 20 MH20330AS...
- Page 21 DESCRIPTION PART # Replacement Parts Optional Accessories Recirculating Kit RHRK203S Order replacement parts from us by calling 1.888.750.1698...
- Page 22 STAPLE YOUR RECEIPT HERE Proof of the original purchase Limited Warranty date is needed to obtain service under warranty TO OBTAIN SERVICE UNDER WARRANTY OR FOR ANY SERVICE RELATED QUESTIONS, please call: 1-888-750-1698 Venting Services (referred to herein as “we” or “us”) warrants to the original consumer purchaser (referred to herein as “you”...
