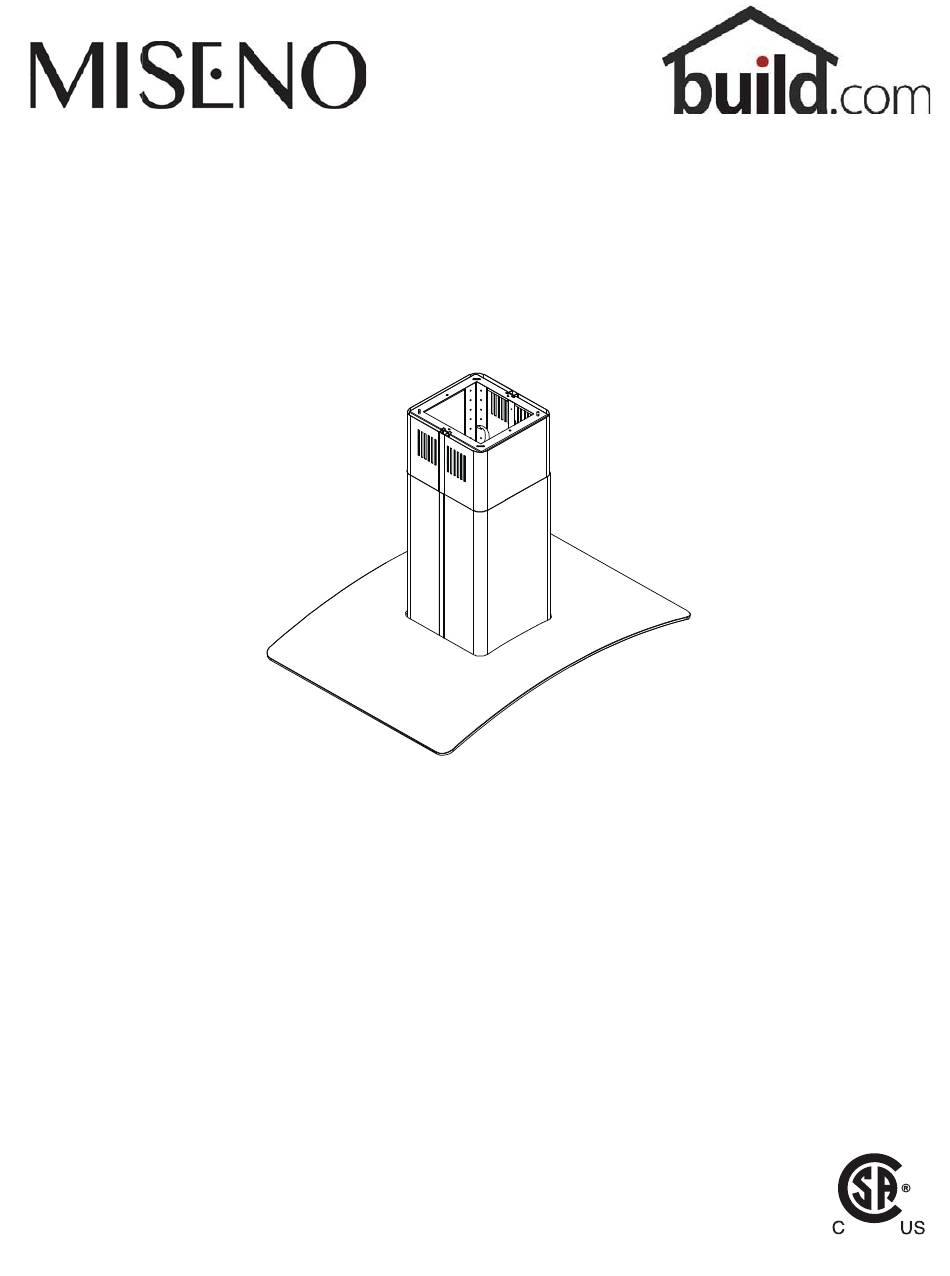

- Page 1 MODEL #. MH00436G Installation, Use and Care Guide READ AND SAVE THESE INSTRUCTIONS 2014.SEP...
- Page 2 www.build.com...
- Page 3 SAFETY NOTICE ..............LIST OF MATERIALS ............INSTALLATION Ducting Calculation Sheet ........Mounting Height & Clearance ........ Ducting Options ............Hood Specifi cations ........... Mounting the Hood 9-11 ............. Ductless Recirculating ..........FEATURES & CONTROLS Mechanical Controls ..........MAINTENANCE Hood and Filter Cleaning .........
- Page 4 www.build.com READ AND SAVE THESE INSTRUCTIONS WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT USE THIS FAN WITH ANY SOLID-STATE CONTROL DEVICE. WARNING TO REDUCE THE RISK OF FIRE ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING: a.
- Page 5 15 or 20 ampere circuit breaker or time delay fuse. Wiring must be 2 wire with ground. Please also refer to Electrical Diagram on product. A cable locking connector (not supplied) might also be required by local codes. Check with local requirements, purchase and install appropriate connector if necessary. MH00436G - MAX 426 Watts, 3.5 Amps...
- Page 6 MODELS: MH00436G PARTS SUPPLIED 1 - Top support frame 2 - Top duct covers 2 - Thick trim pieces Front of Hood Cut-Out Shaded Area 1 - Paper ceiling template 2 - Bottom duct covers 2 - Thin trim pieces 1 - Bottom support frame 1 - 6”...
- Page 7 Equivalent number Equivalent number Duct pieces Duct pieces length x used T otal length x used T otal 3- 1/ 4” x 10” 1 Ft. 6”- 8” Round 30 Ft. Rect., wall cap straight with damper 7” Round, 1 Ft. 6”- 8”...
- Page 8 www.build.com Minimum mount height between range top to hood bottom should be no less than 26”. Maximum mount height should be no higher than Min. ducted 28” 34”. Min. recirc. 28” Max. 38” It is important to install the hood at the proper mounting height.
- Page 9 WARNING FIRE HAZARD NEVER exhaust air or terminate duct work into spaces between walls, crawl spaces, ceiling, attics or garages. All exhaust must be ducted to the outside, unless using the recirculating option. Use single wall rigid Metal ductwork only. Fasten all connections with sheet metal screws and tape all joints w/ certifi...
- Page 10 www.build.com ” ” Min. Ducted - 28” Min. Recirc. - 28” Maximum - 38” 15/16 ” ” 3/16 ” 9/16 ” FRONT SIDE 8” ” 1/4” elec. k/o ” ” 3/16 TOP of HOOD TOP SUPPORT FRAME (top view)
- Page 11 WARNING: Electrical wiring must be done by a qualified person(s) in accordance with all applicable codes and standards. This range hood must be properly grounded. Turn off electrical power at service entrance before wiring. PAPER TEMPLATE Front of Hood Ceiling Joists Cut-Out Shaded Area Wood Blocking Top Support Frame...
- Page 12 www.build.com CAUTION: At least two installers are required due to the weight and size of the hood. BLOWER HOUSING ELECTRONICS MOUNTING BRACKET FIG. E FIG. D FIG. F 5. Remove tape securing electronics mounting bracket to hood. (FIG. D, #1) Remove (3) screws from top of hood body and set screws aside.
- Page 13 cut trim piece if necessary Top support frame Top duct covers Thick trim piece (top) Thin trim piece (bottom) Bottom duct covers Bottom support frame FIG. G 10. *Secure top duct covers (with louver holes) to top support frame using (2) M4 x 8 screws. (FIG. G, #1). Note: If using hood in “ducted mode”...
- Page 14 Kit includes charcoal lters, charcoal lter brackets and air diverter plate. Hood Model Part No. Filters in Pkg. MH00436G RHRK004S 1. Purchase recirculating kit per the part number above 2. Secure air diverter plate to top support frame. (FIG. H) Run 6” ducting from top of hood and secure to air diverter plate.
- Page 15 Blower Off Lights On/Off Blower Speed Selection Blower Off The blower will be powered off by pressing: Blower Speed Selection Select one of three speed levels by pressing: Lights On/Off Power lights on and off by pressing:...
- Page 16 www.build.com SURFACE MAINTENANCE: Clean periodically with hot soapy water and clean cotton cloth. Do not use corrosive or abrasive detergent, or steel wool/scouring pads which will scratch and damage surface. For heavier soil use liquid degreaser. After cleaning it is recommended that you use non-abrasive stainless steel polish/cleaners, to polish and buff out the stainless luster and grain.
- Page 17 REPLACING LIGHT BULBS CAUTION: Light bulb becomes extremely hot when turned on. DO NOT touch bulb until switched off and cooled. Touching hot bulbs could cause serious burns. Make sure all power is turned off and bulbs are not hot. Remove by turning bulb counter clockwise.
- Page 18 TROUBLESHOOTING PROCEDURES FOR MH00436G After installation, 1. The power source is not turned ON. 1. Make sure the circuit breaker and the unit’s the unit doesn’t power is ON. work. 2. The power line and the cable locking connector 2.
- Page 19 MH00436G...
- Page 20 www.build.com DESCRIPTION PART# Replacement Parts Light Bulb GU-10 50W (each) Z0B-0020 Optional Accessories Recirculating Kit RHRK004S Replacement Charcoal Filter RHCF001 Duct Cover Extension (up to 12’ ceiling) RHEX004S To order parts, email us at vsupport@ventingservices.com or call us at 1.888.750.1698...
- Page 21 STAPLE YOUR RECEIPT HERE Proof of the original purchase Limited Warranty date is needed to obtain service under warranty TO OBTAIN SERVICE UNDER WARRANTY OR FOR ANY SERVICE RELATED QUESTIONS, please call: 1-888-750-1698 Venting Services (referred to herein as “we” or “us”) warrants to the original consumer purchaser (referred to herein as “you”...
