Summary of Contents for miseno MH10836BS

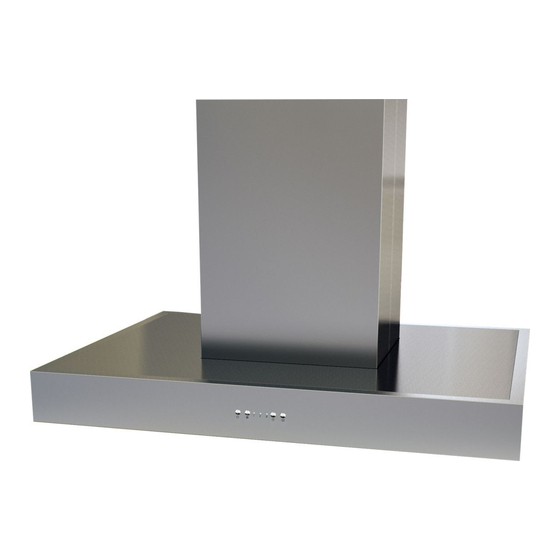

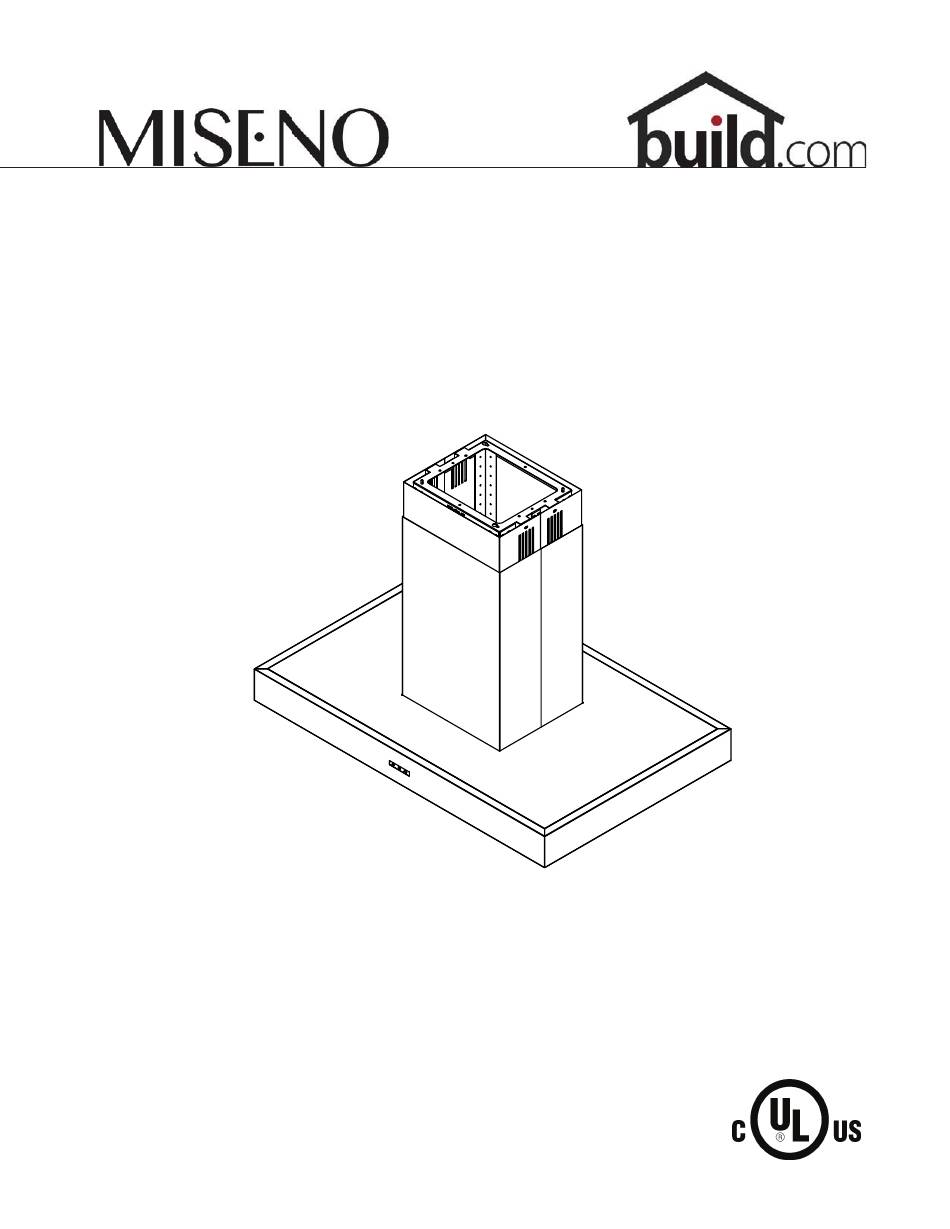

- Page 1 MODEL #. MH10836BS MH10842BS 2018.SEP...
- Page 3 SAFETY NOTICE ..............LIST OF MATERIALS ............INSTALLATION Ducting Calculation Sheet ........Mounting Height & Clearance ........ Ducting Options ............Hood Specifications ........... Mounting the Hood 9-10 ............. Ductless Recirculating ..........FEATURES & CONTROLS Touch Controls ............. MAINTENANCE Hood and Filter Cleaning .........
- Page 4 READ AND SAVE THESE INSTRUCTIONS WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT USE THIS FAN WITH ANY SOLID-STATE CONTROL DEVICE. WARNING TO REDUCE THE RISK OF FIRE ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING: a.
- Page 5 A cable locking connector (not supplied) might also be required by local codes. Check with local requirements, purchase and install appropriate connector if necessary. MH10836BS, MH10842BS - 330 Watts, 2.75 Amps Power consumption shown above is the default power specs. Hoods with CFM Selector Technology enabled will consume...
- Page 6 MODELS: MH10836BS, MH10842BS PARTS SUPPLIED (2) Top Duct Covers (1) Top Support Frame Front of Hood Cut-Out Shaded Area (1) Paper ceiling template (1) Bottom Support Frame (2) Bottom Duct Covers (1) 6” round damper (pre-installed) (4) 3/16" x 3 / ” mounting screws (pre-installed)
- Page 7 Equivalent number Duct pieces Equivalent number Duct pieces length x used T otal length x used T otal 3- 1/ 4” x 10” 1 Ft. 3- 1/ 4” x 10” 5 Ft. Rect., Rect. to straight 6” round transition 6”, 7”, 8”, 10” 1 Ft.
- Page 8 ALWAYS, when possible, reduce the number of transitions and turns. If a long duct run is required, increase duct size from 6” to 7” or 8”. If turns or transitions are required: Install as far away from duct opening and as far apart between the two transitions as possible.
- Page 9 and installer. WARNING FIRE HAZARD NEVER exhaust air or terminate duct work into spaces between walls, crawl spaces, ceiling, attics or garages. All exhaust must be ducted to the outside, unless using the recirculating option. Use single wall rigid metal ductwork only. Fasten all connections with sheet metal screws and tape all joints w/ certified Silver Tape or Duct Tape.
- Page 10 Side Front 12” 14” STANDARD min. ducted - 28” min. recirc. - 32” max. - 39” RHEX108S EXTENSION min. ducted - 50 1/2” min. recirc. - 50 1/2” max. - 80” , 41 ” 7/8” ” "...
- Page 11 CAUTION: At least two installers are required due to the weight and size of the hood. Ceiling Joists Wood Blocking Top Support Frame Support Frame Arm FIG. B Bottom Support Frame Top Support Frame Bottom Support Frame (secures to top of blower housing) back Blower Housing Mounting Screws...
- Page 12 Cable Lock Top Support Frame A cable locking connector (not supplied) might be required by local codes. Check with local requirements and codes, purchase and install appropriate Top Duct Covers connector if necessary. Cable Lock Bottom Duct Covers FIG. E Bottom Support Frame FIG.
- Page 13 RECIRCULATING KIT (REQUIRED IF NO DUCTING IS USED) Kit includes charcoal filters, brackets and air diverter plate. Hood Models Part No. Filters & Brackets in pkg. MH10836BS RHRK108BS MH10842BS RHRK108BS 1. Purchase recirculating kit per the part number above 2. Secure air diverter plate to top support frame Open sides of air diverter plate should face left and right to direct air through the louver holes located on the top duct cover.
- Page 14 Power / Delay Off - Power / Delay o button will turn power on and o for the entire hood (fan and lights). - The hood will remember the last speed and light level it was last turned o at. - Delay O Feature: With the fan on, press and hold the power button for three seconds.
- Page 15 SURFACE MAINTENANCE: Do not use corrosive detergents, abrasive detergents or oven cleaners. Do not use any product containing chlorine bleach or any product containing chloride. Do not use steel wool or abrasive scrubbing pads which will scratch and damage surface. Cleaning Stainless Steel Clean periodically with warm soapy water and clean cotton cloth or micro fiber cloth.
- Page 16 CFM SELECT Some local codes limit the maximum amount of CFM a range hood can move. CFM Select allows you to control the maximum blower CFM of the range hood without the need for expensive make up air kits. CFM Select enables the installer to easily set the maximum blower speed to one of two most commonly specified CFM levels;...
- Page 17 MH10836BS MH10842BS GRAY Power consumption shown for default maximum CFM blower configuration...
- Page 18 TROUBLESHOOTING PROCEDURES FOR MH108 Issue Cause What to do After installation, 1. The power source is not turned ON. 1. Make sure the circuit breaker and the unit’s the unit doesn’t power is ON. work. 2. The power line and the cable locking connector 2.
- Page 19 DESCRIPTION PART# Replacement Parts Baffle Filter 50210034 Optional Accessories Recirculating Kit, MH10836BS RHRK108BS Recirculating Kit, MH10842BS RHRK108BS Replacement Charcoal Filters (each) Z0F-C005 Extension Duct Cover RHEX108S Order replacement parts from us by calling 1.888.750.1698...
- Page 20 STAPLE YOUR RECEIPT HERE Proof of the original purchase Limited Warranty date is needed to obtain service under warranty TO OBTAIN SERVICE UNDER WARRANTY OR FOR ANY SERVICE RELATED QUESTIONS, please call: 1-888-750-1698 Venting Services (referred to herein as “we” or “us”) warrants to the original consumer purchaser (referred to herein as “you” or “your”) of range hoods (the “Products”) that such Products will be free from defects in materials or workmanship as follows: One Year Limited Warranty for Parts: For one year from the date of your original purchase of the Products, we will provide,...
