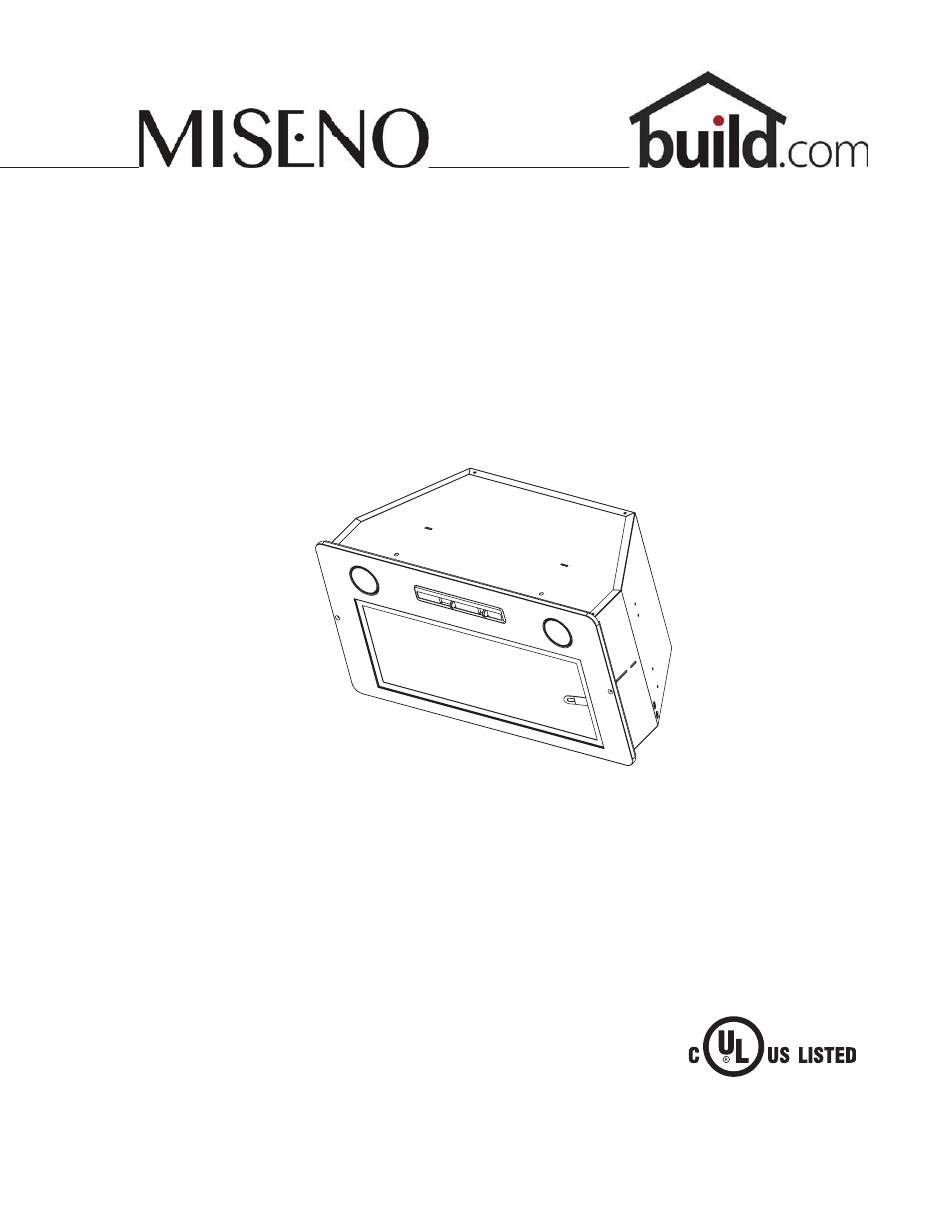

- Page 1 MODEL #. MH80120AS Installation, Use and Care Guide READ AND SAVE THESE INSTRUCTIONS 2017.APR READ AND SAVE THESE INSTRUCTIONS...
-
Page 3: Table Of Contents
SAFETY NOTICE ..............LIST OF MATERIALS ............INSTALLATION Ducting Calculation Sheet ........Mounting Height & Clearance ........ Ducting Options ............Specifications ............... Electrical ................. Installing the Power Pack ........FEATURES & CONTROLS Slide Controls ............... MAINTENANCE Cleaning and Installing Filters ....... - Page 4 READ AND SAVE THESE INSTRUCTIONS WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT USE THIS FAN WITH ANY SOLID-STATE CONTROL DEVICE. WARNING TO REDUCE THE RISK OF FIRE ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING: a.
- Page 5 WARNING TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK. CAUTION To reduce risk of fire and to properly exhaust air outside - Do not vent exhaust air into spaces within walls, ceilings, attics, crawl spaces or garages. OPERATION Always leave safety grilles and filters in place. Without these components, operating blowers could catch onto hair, fingers and loose clothing. The manufacturer declines all responsibility in the event of failure to observe the instructions given here for installation, maintenance and suitable use of the product.
- Page 6 MODELS: MH80120AS PARTS SUPPLIED 1 - Power Pack 1 - Aluminum mesh filter 2 - Halogen light bulbs (pre-installed) 1 - Single internal blower (pre-installed) 1 - Hardware package HARDWARE PACKAGE CONTENTS Suction Cup (1) M4 x 1-1/2” (4) M4 x 1” (4) PARTS NOT SUPPLIED - Ducting, conduit and all installation tools - Cable connector (if required by local codes)
- Page 7 Equivalent number Equivalent number Duct pieces Duct pieces length x used T otal length x used T otal 3- 1/ 4” x 10” 1 Ft. 3- 1/ 4” x 10” 5 Ft. Rect., Rect. to straight 6” round transition 6”, 7”, 8”, 10” 1 Ft.
- Page 8 Minimum mount height between range top to hood bottom should be no less than 26”. Maximum mount height should be no higher than 34”. It is important to install the hood at the proper mounting height. Hoods mounted too low could result in heat damage and fire hazard; while hoods mounted too high will be hard to reach and will lose its performance and efficiency.
-
Page 9: Ducting Options
WARNING FIRE HAZARD NEVER exhaust air or terminate duct work into spaces between walls, crawl spaces, ceiling, attics or garages. All exhaust must be ducted to the outside. Use metal ductwork only. Fasten all connections with sheet metal screws and tape all joints with certified Silver Tape or Duct Tape. Some Ducting Options side wall cap side wall cap w/ gravity damper w/ gravity damper Soffit or crawl space... - Page 10 19-1/2” 12-1/8” 5-1/16” 10-5/8” 20-9/16” front 14-3/16” 9-15/16” 16-9/16” bottom side...
-
Page 11: Electrical
ELECTRICAL WARNING All Electrical work must be performed by qualified electrician or person with similar technical know how and background. For personal safety, remove house fuse or open circuit breaker before beginning installation. Do not use extension cord or adapter plug with this appliance. Follow national electrical codes or prevailing local codes and ordinances. - Page 12 CAUTION: At least two installers are ” required due to the weight and size of the hood. 1. Install optional AK084xAS Stainless Steel Liner. Review manual included with liner for more details. 2. If no liner is used cut out an opening in the bottom of the cabinet by following the dimensions in FIG 1.
- Page 13 Blower On/Off Speed Selection Lights Bright/Dim/Off I I I BLOWER ON/OFF/SPEED SELECTION 0 is off, I is low speed, II is medium speed and III is high speed. LIGHTS BRIGHT/DIM/OFF 0 is off, I is dim, and II is bright.
- Page 14 Remove and clean by hand or in dishwasher on low heat. Spray degreasing detergent and leave to soak if heavily soiled. Dry filters and re-install before using hood. Removing Aluminum Mesh Filter 1. Push in filter latch. 2. Tilt filter down and remove from hood. Hood Model: Part No. Qty. to Order MH80120AS 50200054...
-
Page 15: Recirculating Kit
When converted to recirculating mode, a charcoal filter is required to be installed on top of the standard metal mesh filter and a return air vent is needed to direct air back into the kitchen. The standard metal mesh filter is intended to capture residue from cooking and the optional charcoal filter helps to purify fumes exhausted from cooking in recirculating mode. Purchase recirculating kit as follows, Hood Model: Part No. Qty. to Order MH80120AS ZRC-8400A Charcoal filters must be replaced approximately every 3 months based off an average usage of 1 hour a day. Order replacement charcoal filters as follows: Hood Model: Part No. Qty. to Order MH80120AS Z0F-C084 For detailed installation instructions please refer to manual included with recirculating kit. -
Page 16: Lights
REPLACING LIGHT BULBS CAUTION: Light bulb becomes extremely hot when turned on. DO NOT touch bulb until switched off and cooled. Touching hot bulbs could cause serious burns. Make sure all power is turned off and bulbs are not hot. Remove by turning bulb counter clockwise. -
Page 17: Troubleshooting
TROUBLESHOOTING PROCEDURES Issue Cause What to do After installation, 1. The power source is not turned ON. 1. Make sure the circuit breaker and the unit’s the unit doesn’t power is ON. work. 2. The power line and the cable locking connector 2. - Page 18 DESCRIPTION PART # Replacement Parts Light Bulb MR16 (GU10) 35W (each) Z0B-0023 Aluminum Mesh Filter (each) 50200054 Charcoal Filter (each) Z0F-C084 Optional Accessories Liner, 30” AK0840AS Liner, 36” AK0846AS Recirculating Kit ZRC-8400A Light Bulb MR16 GU-10 LED (each) Z0B-0040 To order parts, call us at 1.888.750.1698...
-
Page 19: Warranty
STAPLE YOUR RECEIPT HERE Proof of the original purchase Limited Warranty date is needed to obtain service under warranty TO OBTAIN SERVICE UNDER WARRANTY OR FOR ANY SERVICE RELATED QUESTIONS, please call: 1-888-750-1698 Venting Services (referred to herein as “we” or “us”) warrants to the original consumer purchaser (referred to herein as “you”...
