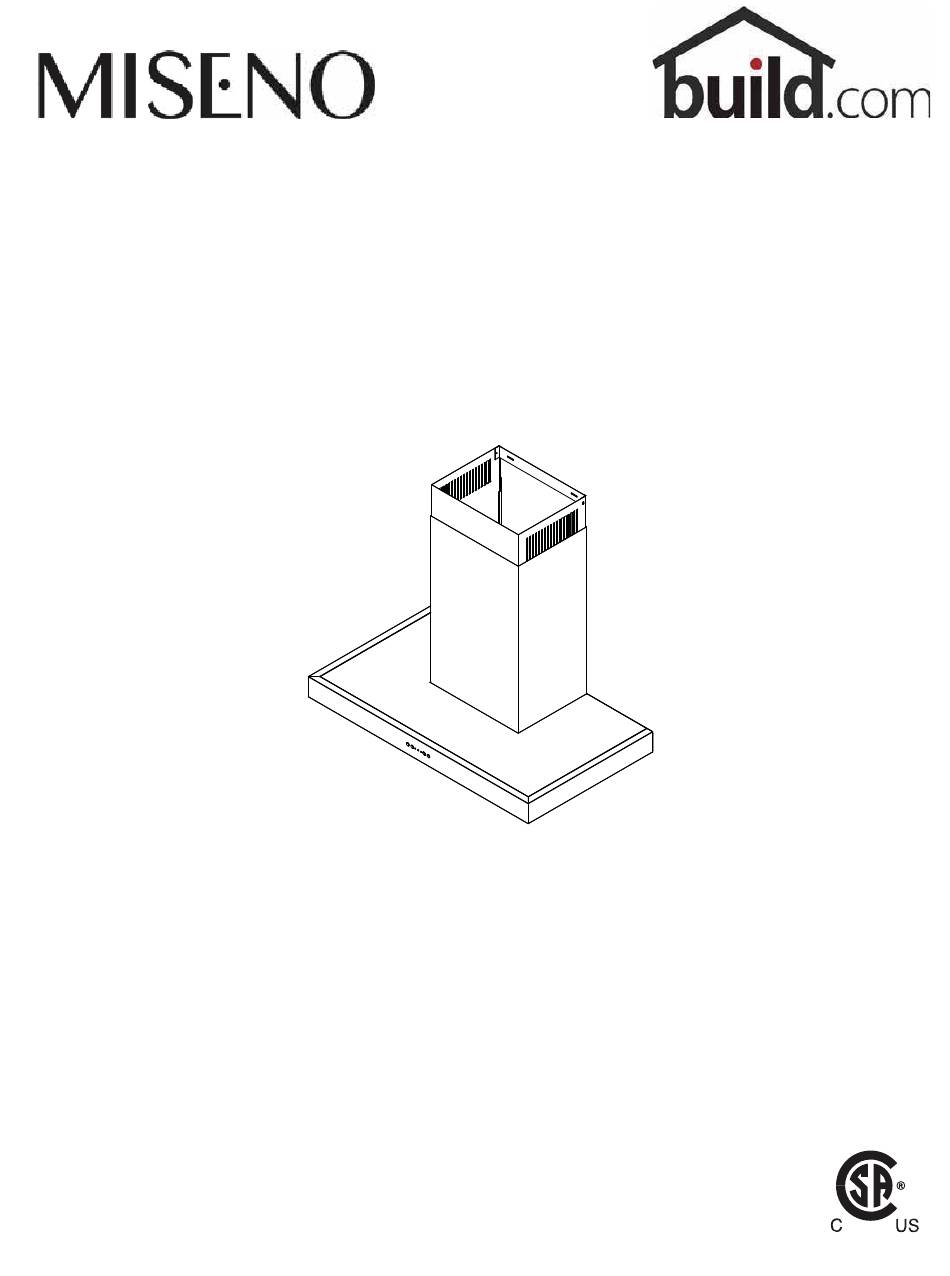

- Page 1 MODEL #. MH00830AS MH00836AS Installation, Use and Care Guide READ AND SAVE THESE INSTRUCTIONS 2014.NOV...
- Page 3 SAFETY NOTICE ..............LIST OF MATERIALS ............INSTALLATION Ducting Calculation Sheet ........Mounting Height & Clearance ........ Ducting Options ......................Mounting the Hood ............. Ductless Recirculating ..........FEATURES & CONTROLS Electronic Controls ............. MAINTENANCE Hood and Filter Cleaning ......... Light Bulbs ..............
- Page 4 READ AND SAVE THESE INSTRUCTIONS WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT USE THIS FAN WITH ANY SOLID-STATE CONTROL DEVICE. WARNING TO REDUCE THE RISK OF FIRE ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING: a.
- Page 5 15 or 20 ampere circuit breaker or time delay fuse. Wiring must be 2 wire with ground. Please also refer to Electrical Diagram on product. and install appropriate connector if necessary. MH00830AS, MH00836AS - 400 Watts, 3.4 Amps...
-
Page 6: Hardware Package Contents
MODELS: MH00830AS, MH00836AS PARTS SUPPLIED 1 - Hood with internal blower 1 - Duct cover wall bracket 1 - Duct cover assembly (top and bottom) 1 - Hardware package 1 - 6” round backdraft damper (pre-installed) 2 - 50W GU-10 halogen light bulbs... - Page 7 Equivalent number Equivalent number Duct pieces Duct pieces length x used T otal length x used T otal 3- 1/ 4” x 10” 1 Ft. 6”- 8” Round 30 Ft. Rect., wall cap straight with damper 7” Round, 1 Ft. 6”- 8”...
- Page 8 ALWAYS, when possible, reduce the number of transitions and turns. If a long duct run is required, increase duct size from 6” to 7” or 8”. If turns or transitions are required: Install as far away from duct opening and as far apart between the two transitions as possible.
- Page 9 WARNING FIRE HAZARD NEVER exhaust air or terminate duct work into spaces between walls, crawl spaces, ceiling, attics or garages. All exhaust must be ducted to the outside, unless using the recirculating option. Use single wall rigid metal ductwork only. Some Ducting Options Roof Pitch w/ Flashing &...
- Page 10 11” ” ” 1/16 STANDARD min. ducted - 26” min. recirc. - 31” max. - 53” RHEX008S EXTENSION min. ducted - 42” min. recirc. - 46” max. - 80” ” 1/16 , 35 ” 15/16” 7/16 FRONT SIDE ” 3/16...
- Page 11 CAUTION: At least two installers are required due to the weight and size of the hood. 1. Measure from range top to desired hood bottom location and Duct Cover Bracket ” 2. Plum and mark center line. ” 1/16 tighten all the way. Note: Wood blocking may need to be added behind the drywall if no studs are present.
- Page 12 Ductless recirculation is intended for applications where an exhaust duct work is not possible to be installed. When converted, the hood functions as a recirculating hood rather than an exhaust hood. Fumes and exhaust circulated back within the home. We recommend to ALWAYS exhaust air outside of the home by employing existing or installing new duct is not possible should you recourse to converting the hood into a recirculating hood.
- Page 13 Blower On/Off Lights Bright/Dim/Off Blower Speed Selection Delay Off Timer Blower On/Off Press to turn blower on and off. If lights are on they will also switch off when this button is pressed. Blower Speed Selection Press to cycle through blowers speeds I, II and III Lights Bright/Dim/Off Press to cycle through light levels Bright, Dim and Off...
-
Page 14: Surface Maintenance
SURFACE MAINTENANCE: Clean the hood surface periodically with hot soapy water and clean cotton cloth. Do not use corrosive or abrasive detergent, or steel wool/scouring pads which will scratch and damage surface. For heavier soil use liquid degreaser. After cleaning it is recommended that you use non-abrasive stainless steel polish/cleaners, to polish and buff out the stainless luster and grain. -
Page 15: Replacing Light Bulbs
REPLACING LIGHT BULBS CAUTION: Light bulb becomes extremely hot when turned on. DO NOT touch bulb until switched off and cooled. Touching hot bulbs could cause serious burns. Make sure all power is turned off and bulbs are not hot. stops and falls out. - Page 16 TROUBLESHOOTING PROCEDURES FOR MH008 Issue Cause What to do After installation, 1. The power source is not turned ON. 1. Make sure the circuit breaker and the unit’s the unit doesn’t power is ON. work. 2. The power line and the cable locking connector 2.
- Page 17 MH00830AS, MH00836AS...
- Page 18 DESCRIPTION PART# Replacement Parts Optional Accessories Recirculating Kit RHRK008S Extension Duct Cover RHEX008S Order replacement parts from us by calling 1.888.750.1698...
- Page 19 STAPLE YOUR RECEIPT HERE Proof of the original purchase Limited Warranty date is needed to obtain service under warranty TO OBTAIN SERVICE UNDER WARRANTY OR FOR ANY SERVICE RELATED QUESTIONS, please call: 1-888-750-1698 Venting Services (referred to herein as “we” or “us”) warrants to the original consumer purchaser (referred to herein as “you”...
