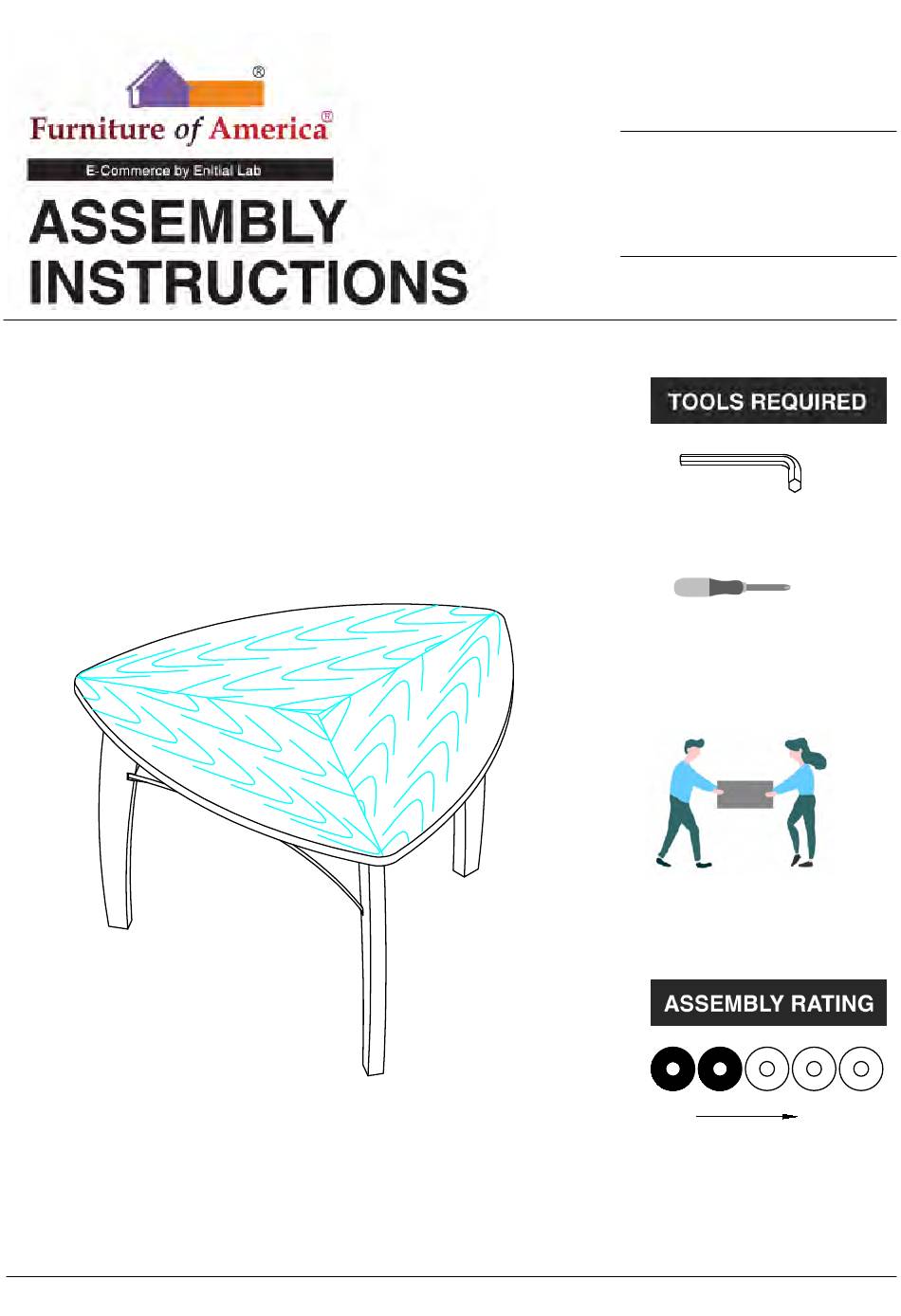

VERSION # 20-0 7-20
1 / 7
MODEL #
CM3433PT
Questions?
GIVE US CALL: 1-888-980-5122
MON-FRI 8:30AM - 5:30PM (PST)
Allen Wrench
(Included)
Phillips
Screwdriver
(Not Included)
2 - People
Recommended
EASY
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
DIFFICULT
Advertisement
Related Manuals for Furniture of America Hurley CM3433PT
Summary of Contents for Furniture of America Hurley CM3433PT
- Page 1 MODEL # CM3433PT Questions? GIVE US CALL: 1-888-980-5122 MON-FRI 8:30AM - 5:30PM (PST) Allen Wrench (Included) Phillips Screwdriver (Not Included) 2 - People Recommended EASY DIFFICULT The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product.
- Page 2 America Furniture FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 4 4 / X X X X X X X 7...
- Page 5 TABLE CM3433PT PARTS PARTS #1 1pc #2 1pc #3 3pcs Table Top Shelf HARDWARE HARDWARE #A 6pcs #B 6pcs #C 6pcs #D 1pc Bolt Ø5/16" x 3" Lock washer Flat washer Allen Wrench #E 6pcs #F 3pcs Screw M4x20mm Bass L 5 / 7...
- Page 6 ASSEMBLY INSTRUCTIONS Align two legs (#3) to the shelf (#2) and top (#1). Part #1 x1pc Part #2 x1pc Part #3 x2pcs Align last leg (#3) to the shelf and top. Part #3 x1pc Hardware #A x 4pcs Hardware #B x 4pcs Hardware #C x 4pcs Secure two legs to top by using bolts (#A) with washers (#B,C).
- Page 7 ASSEMBLY INSTRUCTIONS Hardware #A x 2pcs Hardware #B x 2pcs Hardware #C x 2pcs Secure last leg to the top by using bolts (#A) with washers (#B,C). Hardware #E x 6pcs Align brackets (#F) to the shelf and legs, then secure by using screws (#E). Hardware #F x 3pcs 7 / 7...
Need help?
Do you have a question about the Hurley CM3433PT and is the answer not in the manual?
Questions and answers
I need a video of how to put together
To assemble the Furniture of America Hurley CM3433PT:
1. Preparation:
- Assemble near the intended location.
- Ensure enough space to move around.
- Use cardboard, blankets, or a carpeted area to avoid scratches.
- Ensure the surface is flat and level.
2. Parts:
- #1: Table Top (1 piece)
- #2: Shelf (1 piece)
- #3: Legs (3 pieces)
3. Hardware:
- #A: Bolt Ø5/16" x 3" (6 pieces)
- #B: Lock washer (6 pieces)
- #C: Flat washer (6 pieces)
- #D: Allen Wrench (1 piece)
- #E: Screw M4x20mm (6 pieces)
- #F: Bass L (3 pieces)
4. Step-by-Step Assembly:
- Step 1: Attach two Legs (#3) to the Shelf (#2) using 4 sets of #A, #B, and #C.
- Step 2: Attach the remaining Leg (#3) to the Shelf (#2) using 2 sets of #A, #B, and #C.
- Step 3: Attach the assembled leg and shelf unit to the Table Top (#1) using 6 screws (#E).
Use the Allen Wrench (#D) to tighten bolts. Ensure all legs touch the floor evenly.
