VERSION # 20-04-27
1 / 7
MODEL #
CM3474
Questions?
GIVE US CALL: 1-888-980-5122
MON-FRI 8:30AM - 5:30PM (PST)
Allen Wrench
(Included)
Phillips
Screwdriver
(Not Included)
2 - People
Recommended
EASY
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
DIFFICULT
Advertisement
Table of Contents
Related Manuals for Furniture of America CM3474
Summary of Contents for Furniture of America CM3474

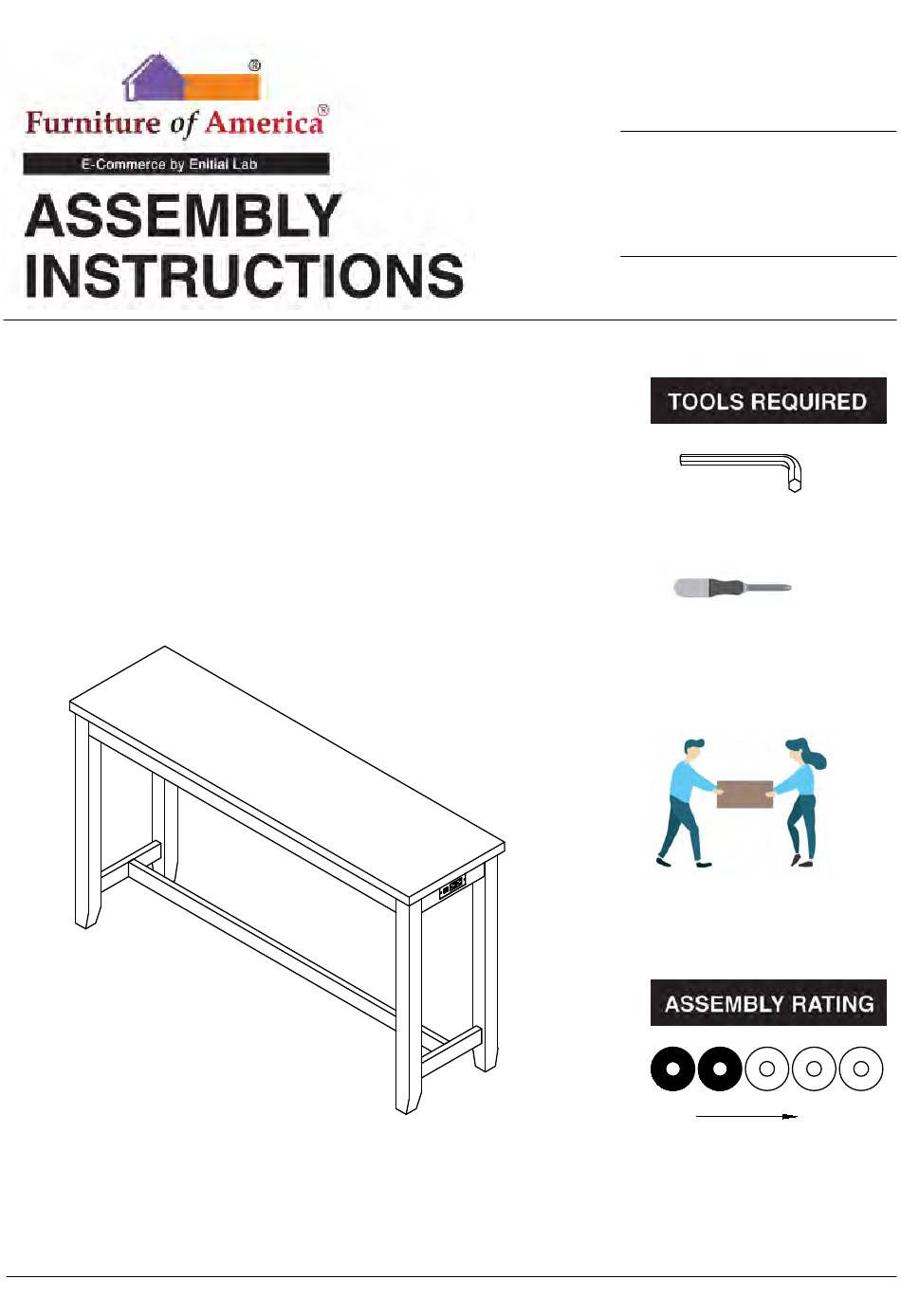

- Page 1 MODEL # CM3474 Questions? GIVE US CALL: 1-888-980-5122 MON-FRI 8:30AM - 5:30PM (PST) Allen Wrench (Included) Phillips Screwdriver (Not Included) 2 - People Recommended EASY DIFFICULT The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product.
- Page 2 America Furniture FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 4 4 / X X X X X X X 7...
- Page 5 HIGHT TABLE CM3474 #1 1pc #2 4pcs #3 2pcs #4 1pc Side Stretcher Table Top Center Stretcher #A 8pcs #B 8pcs #C 8pcs Lock Washer Ø5/16" Flat Washer Ø5/16" Bolt Ø5/16" x 2-1/2" #D 1pc #E 2pcs #F 4pcs #G 6pcs...
- Page 6 ASSEMBLY INSTRUCTIONS Part #1 x1pc Align legs (#2) to the top (#1), then Part secure by using bolts (#A) with washers #2 x4pcs (#B,C). Hardware #A x8pcs Hardware #B x8pcs Hardware #C x8pcs 6 / 7...
- Page 7 ASSEMBLY INSTRUCTIONS Align stretchers (#3) to the legs (#2), then secure by using screws (#F). Part #3 x2pcs Hardware #F x4pcs Align plate (#E) to the stretchers (#3,4), then secure by using screws Part (#G). #4 x 1pc Hardware #E x2pcs Hardware #G x6pcs 7 / 7...
