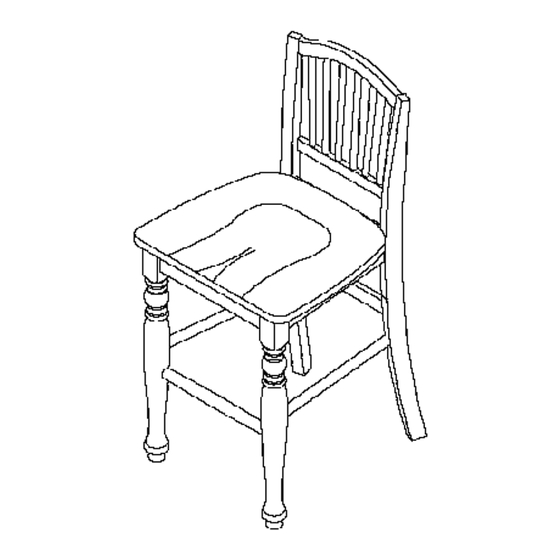

Assembly Instructions
CM3431PC-2PK
ASSEMBLY RATING
Tools Required for Assembly:
The Assembly Rating is a 5-point system that
shows the degree of effort needed in
Allen Wrench
assembling a specific product (with 1 being
(Included)
easy and 5 being difficult). For some
products, two persons are recommended.
Phillips Screwdriver
(Not Included)
DIFFICULT
EASY
Page 1 of 5
Rev.14-09-19
Advertisement
Related Manuals for Furniture of America CM3431PC-2PK
Summary of Contents for Furniture of America CM3431PC-2PK
- Page 1 Assembly Instructions CM3431PC-2PK ASSEMBLY RATING Tools Required for Assembly: The Assembly Rating is a 5-point system that shows the degree of effort needed in Allen Wrench assembling a specific product (with 1 being (Included) easy and 5 being difficult). For some products, two persons are recommended.
- Page 2 Page 2 of 5...
- Page 3 Before you begin, please read Page 2 of “Assembly and Care Advice”. And remember, do not tighten until each step is completed or instructed. Parts List Hardware List #1 x 1 pc x 2 #A x 4 pcs x 2 Backrest w/Legs Bolt 5/16”x3”...
- Page 4 Place the backrest with legs (#1) on a protected surface. Insert a wood dowel (#H) into the center hole of the backrest with legs (#1). Align the seat (#2) with the wood dowel (#H) and the pre-drilled holes of the backrest with legs (#1). III.
- Page 5 Insert the front leg support (#4) between the two front #C x 4 pcs legs (#3). Then insert the two #D x 4 pcs #E x 4 pcs side leg supports (#5) into the backrest with legs (#1) and the two front legs (#3). II.
