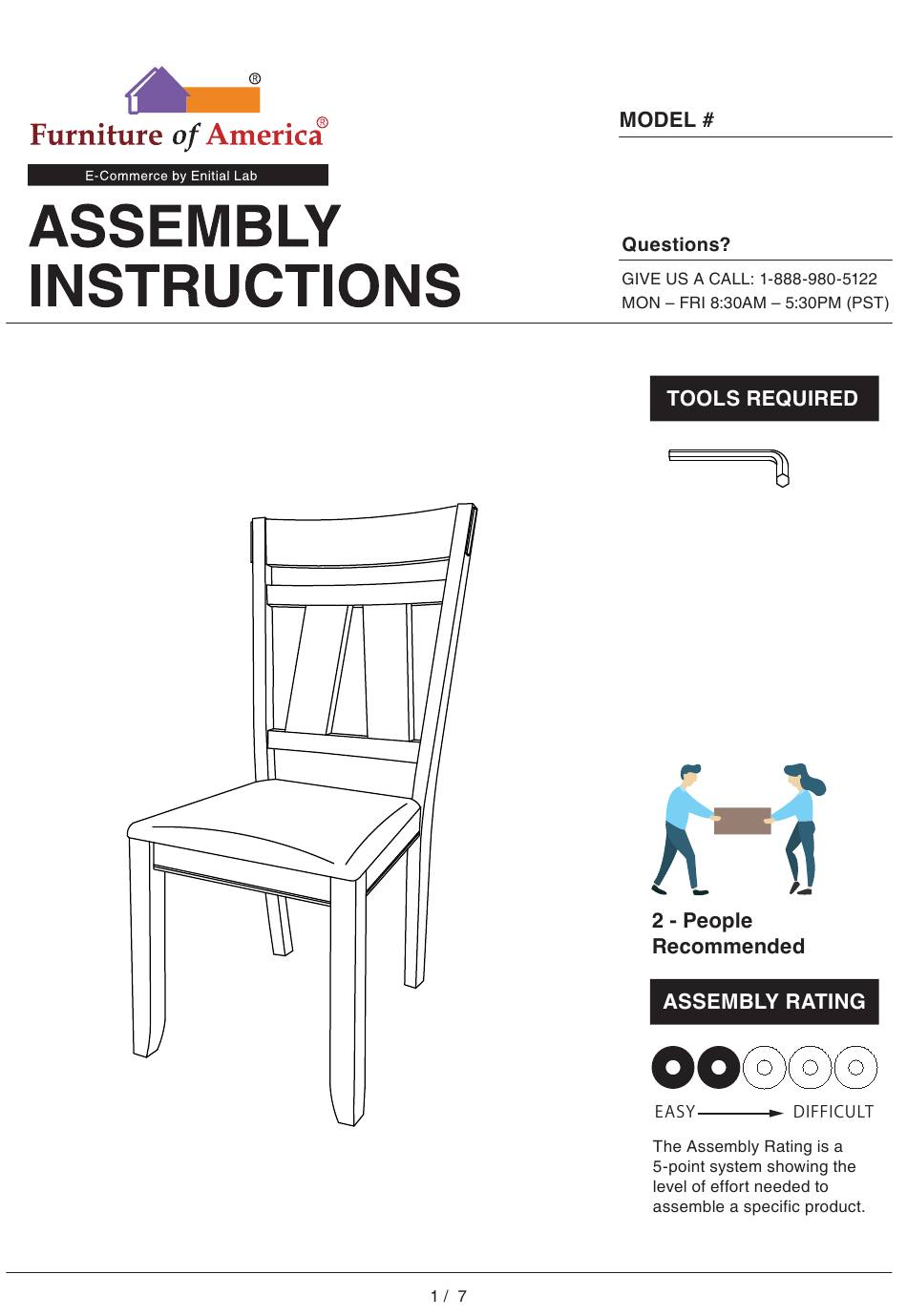

- Page 1 CM3487SC-2PK Allen Wrench (Included) VERSION # 21-01-11...
- Page 5 SIDE CHAIR CM3487SC-2PK #1 1pc #2 1pc #3 2pcs Chair Back Cushion Seat Front Leg #A 4pcs #B 4pcs #C 2pcs #D 10pcs Jcbc Screw Jcbc Screw Jcbc Screw Lock Washer M6 x 80MM M6 x 60MM M6 x 35MM...
- Page 6 Part x1pc Part x1pc Hardware x2pcs Hardware x2pcs Hardware x2pcs Hardware x1pc Hardware x1pc Insert dowel (#G) to the chair back (#1), then align seat (#2) to chair back (#1). Secure by using bolts (#C) with washers (#D,E). Secure corner holes of the seat Hardware x4pcs (#2) to chair back (#1) by using...
- Page 7 Part x2pcs Hardware x4pcs Hardware x4pcs Hardware x4pcs Hardware x1pc Align legs (#3) to the seat (#2), then secure by using bolts (#B) with washers (#D,E). 7 / 7...
