VERSION # 20-10-09
1 / 9
MODEL #
CM3474PT-4PK
Questions?
GIVE US CALL: 1-888-980-5122
MON-FRI 8:30AM - 5:30PM (PST)
Allen Wrench
(Included)
Phillips
Screwdriver
(Not Included)
2 - People
Recommended
EASY
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
DIFFICULT
Advertisement
Related Manuals for Furniture of America CM3474PT-4PK
Summary of Contents for Furniture of America CM3474PT-4PK

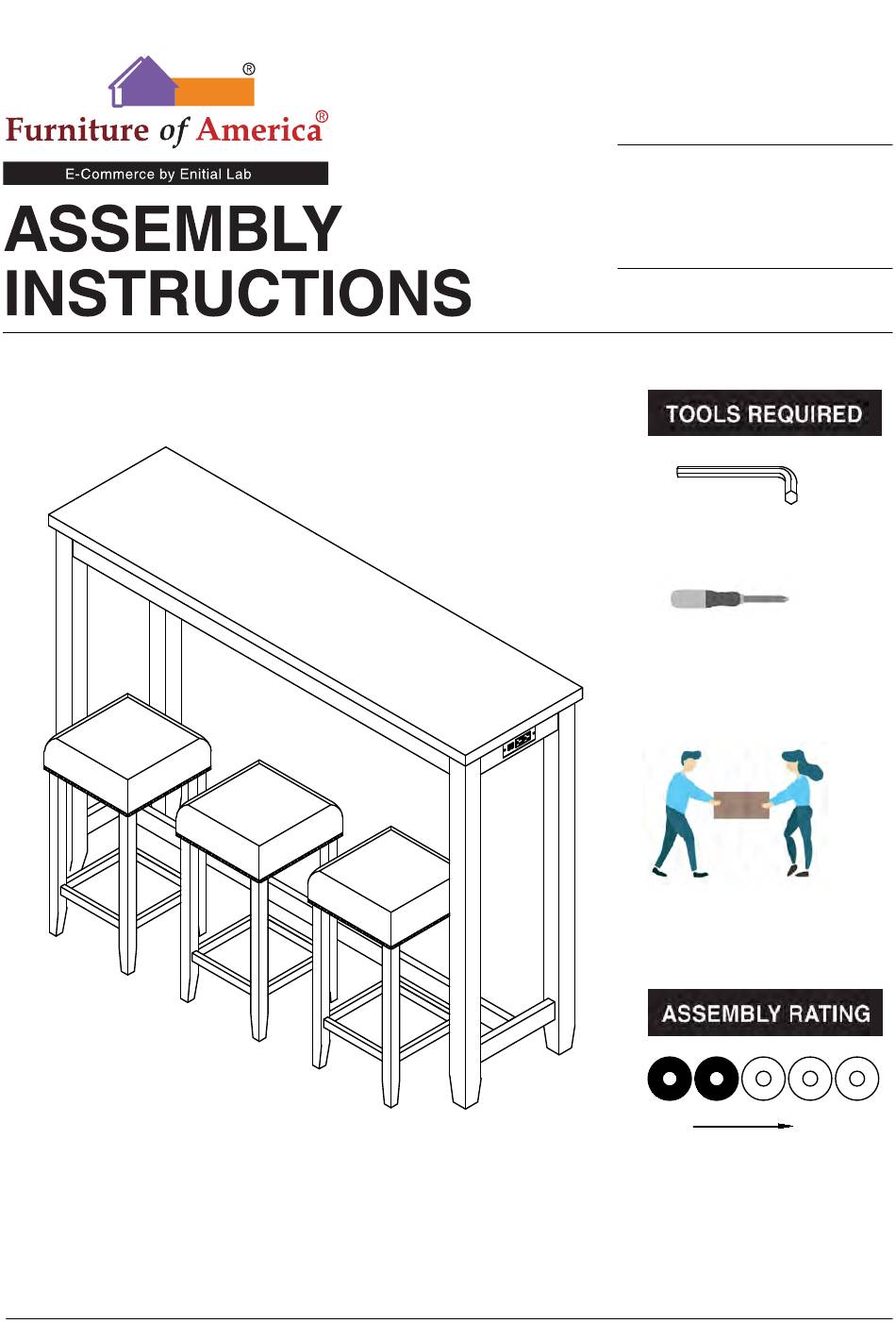

- Page 1 MODEL # CM3474PT-4PK Questions? GIVE US CALL: 1-888-980-5122 MON-FRI 8:30AM - 5:30PM (PST) Allen Wrench (Included) Phillips Screwdriver (Not Included) 2 - People Recommended EASY DIFFICULT The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product.
- Page 2 America Furniture FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 4 4 / X X X X X 9...
- Page 5 TABLE SET CM3474PT-4PK #1 1pc #2 4pcs #3 2pcs #4 1pc Table Top Side Stretcher (L/R) Center Stretcher #6 4pcs x3 #5 1pc x3 #7 4pcs x3 Bar Stool Seat Stretcher (L/R) #A 8pcs #C 32pcs #D 32pcs #B 24pcs...
- Page 6 6 / 9...
- Page 7 ASSEMBLY INSTRUCTIONS Align legs (#2L/R) to the top (#1), then secure by using bolts (#A) with washers (#C,D). Part #1 x1pc Part #2 x4pcs Hardware #A x8pcs Hardware #C x8pcs Hardware #D x8pcs Align side stretchers (#3) to the legs (#2), then secure by using screws (#G).
- Page 8 ASSEMBLY INSTRUCTIONS Align plate (#F) to the stretchers (#3,4), then secure by using screws (#H). Part #4 x 1pc Hardware #F x2pcs Hardware #H x6pcs Align legs (#6 L/R) to the seat (#5), then Part #5 x1pc secure by using bolts (#B) with Part #6 x4pcs washers (#C,D).
- Page 9 ASSEMBLY INSTRUCTIONS Align stretchers (#7) to the legs (#6), then secure by using screws (#G). Part #7 x4pcs Hardware #G x8pcs 9 / 9...
