Summary of Contents for Furniture of America Foster CM3437T

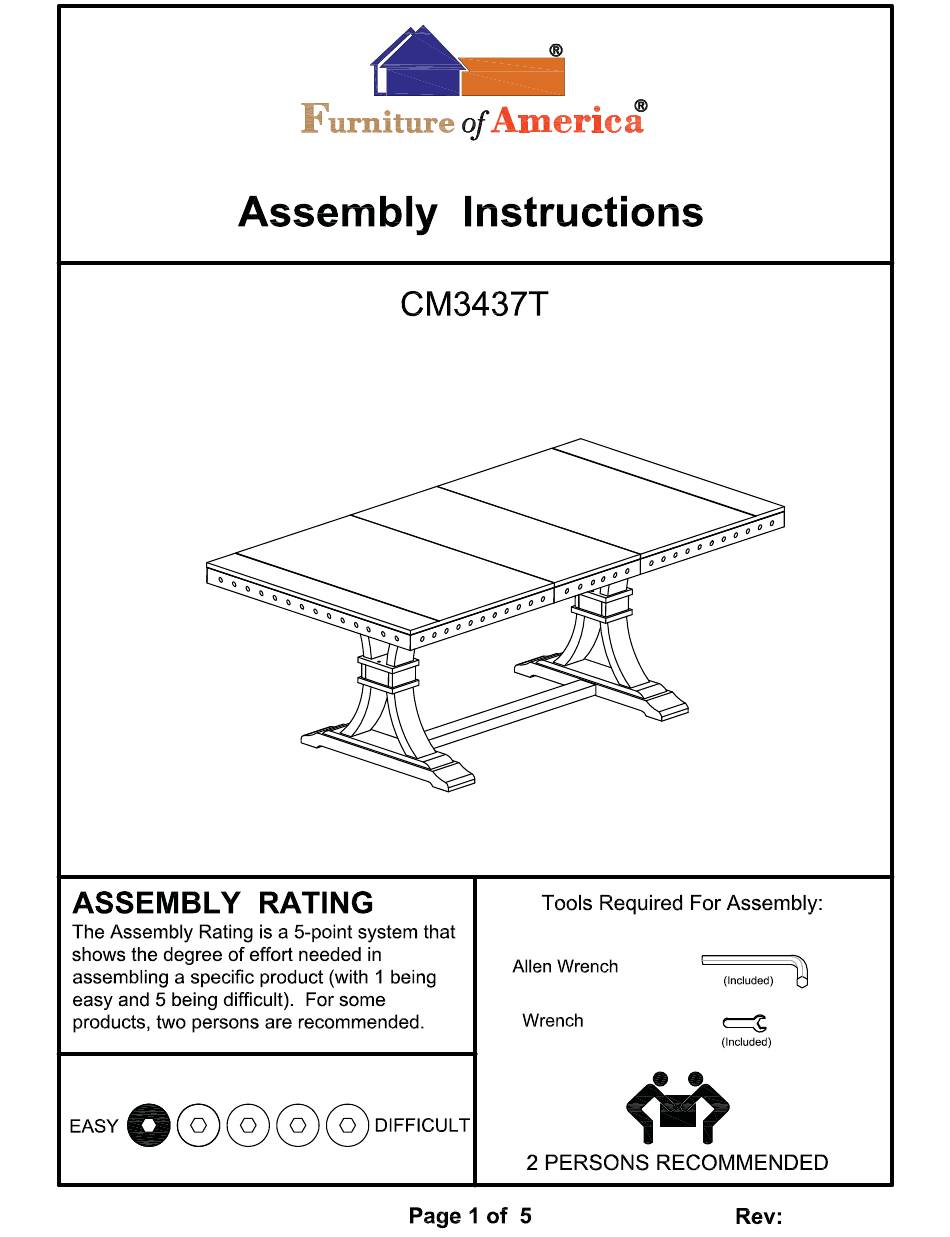

- Page 1 16-07-21...
- Page 3 12mm 12mm...
- Page 4 1. Align the pre-drilled holes on the base (#4) with the pre-drilled holes on the leg stand (#3). 2. Insert two bolts (#A) and secure using the Allen wrench (#E). Repeat process on the other leg stand (#3). 1. Insert the bolt (#D) into the top pre-drilled holes, turn right to tighten.
- Page 5 1. Insert the table top (#1) onto the threaded ends on top of the leg stands. 2. Apply a flat washer (#F), lock washer (#G), then hex nut (#H) in that order onto the threaded ends from within the table. Secure using the wrench (#I). To insert the table leaf (#2) unlock the latches located under the table top (#1).
- Page 6 1. Once unlocked, slide outward on both ends of the outer-piece table until there is sufficient opening to place the table leaf (#2). Then slide inward on both ends of the outer-piece table until they are touching and sitting flush with the table leaf (#2). 2.
