VERSION
# 20-07-07

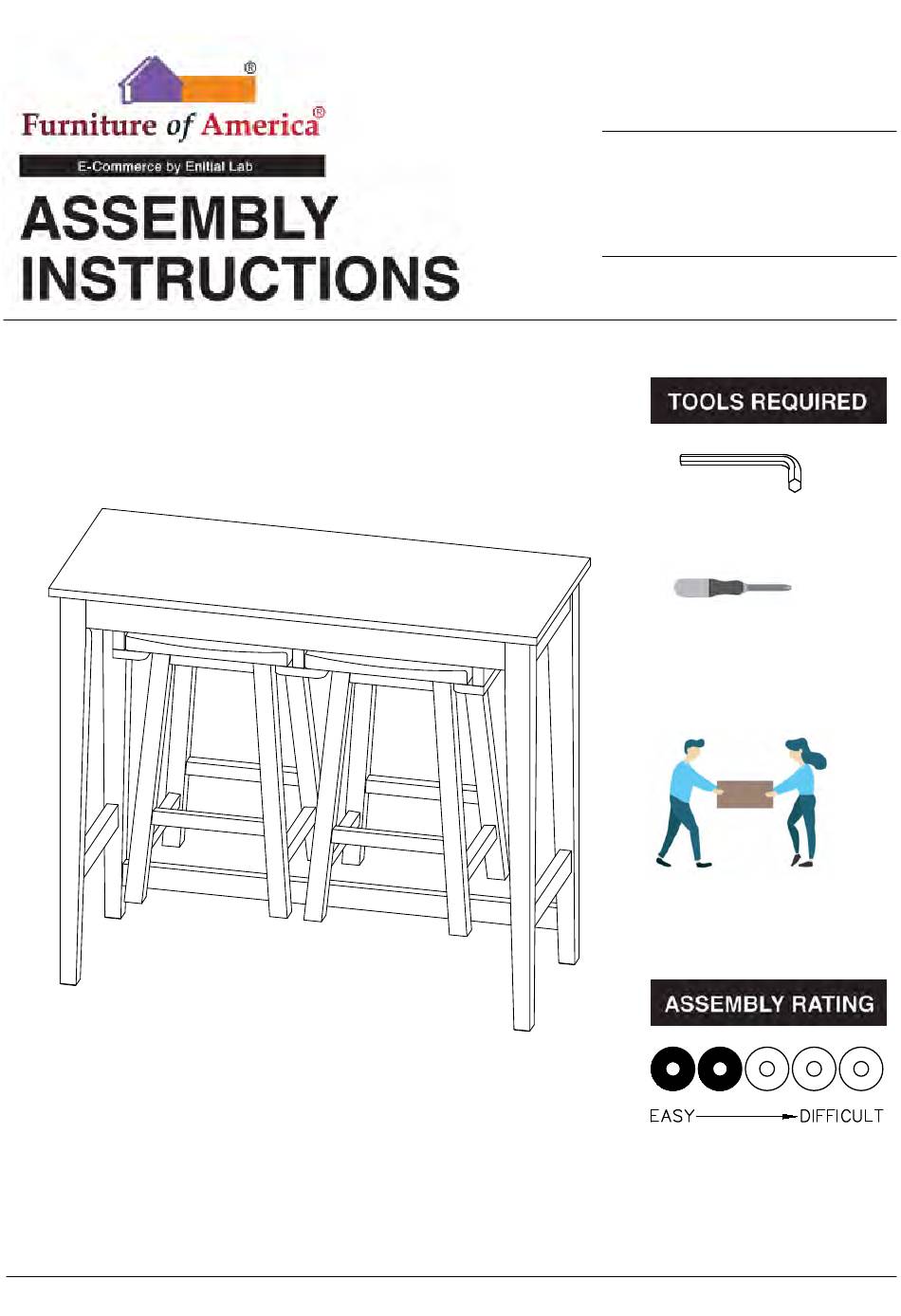

MODEL #
CM3475PT-3PK
Questions?
GIVE US CALL: 1-888-980-5122
MON-FRI 8:30AM - 5:30PM (PST)
1 / 9
Allen Wrench
(Included)
Phillips
Screwdriver
(Not Included)
2 - People
Recommended
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
Advertisement
Related Manuals for Furniture of America CM3475PT-3PK
Summary of Contents for Furniture of America CM3475PT-3PK
- Page 1 MODEL # CM3475PT-3PK Questions? GIVE US CALL: 1-888-980-5122 MON-FRI 8:30AM - 5:30PM (PST) Allen Wrench (Included) Phillips Screwdriver (Not Included) 2 - People Recommended The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product.
- Page 2 America Furniture FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 4 4 / X X X X X X X 9...
- Page 5 HEIGHT TABLE SET CM3475-PT-3PK #1 1pc #2 1pc #3 1pc #4 1pc Table Top Right Stool Support Mid Stool Support Left Stool Support #5 1pc #6 1pc #7 1pc #8 1pc Table Leg #5 Table Leg #6 Table Leg #7 Table Leg #8 #9 1pc #10 2pcs...
- Page 6 #A 8pcs #B 8pcs #C 8pcs #D 6pcs Lock washer Flat washer Bolt Ø5/16"x 2-1/8" Bolt Ø1/4"x 3" Ø5/16"x 12mm Ø5/16"x 19mm #E 6pcs #F 22pcs #G 1pc #H 8pcs Bolt Ø1/4"x 2" Hex nut Ø10x 30mm Screw #4 x 38mm Allen key 4mm #J 8pcs #K 8pcs...
- Page 7 ASSEMBLY INSTRUCTIONS Align table legs (#5,6) with stretcher (#9) to the top (#1), then secure by using bolts (#A) with washers (#B,C). Part #1 x 1pc Part #5 x 1pc Part #6 x 1pc Part #9 x 1pc Hardware #A x 4pcs Hardware #B x 4pcs Hardware...
- Page 8 ASSEMBLY INSTRUCTIONS Secure stretchers to legs by using screws (#F). Hardware #F x 6pcs Part #2 x 1pc Insert dowels (#E) to stool supports Part #3 x 1pc (#2,3,4). Align stool supports (#2,3,4) to Part #4 x 1pc the top, then secure by using bolts (#D). Hardware #D x 6pcs Hardware...
- Page 9 ASSEMBLY INSTRUCTIONS Align stool legs (#12,13) to the seat (#11) as shown in the diagram, then secure by using bolts (#H) with washers (#J,K). Part #11 x 2pcs Part #12 x 4pcs Part #13 x 4pcs Hardware #H x 8pcs Hardware #J x 8pcs Hardware...
