Summary of Contents for Furniture of America Foster CM3437RT

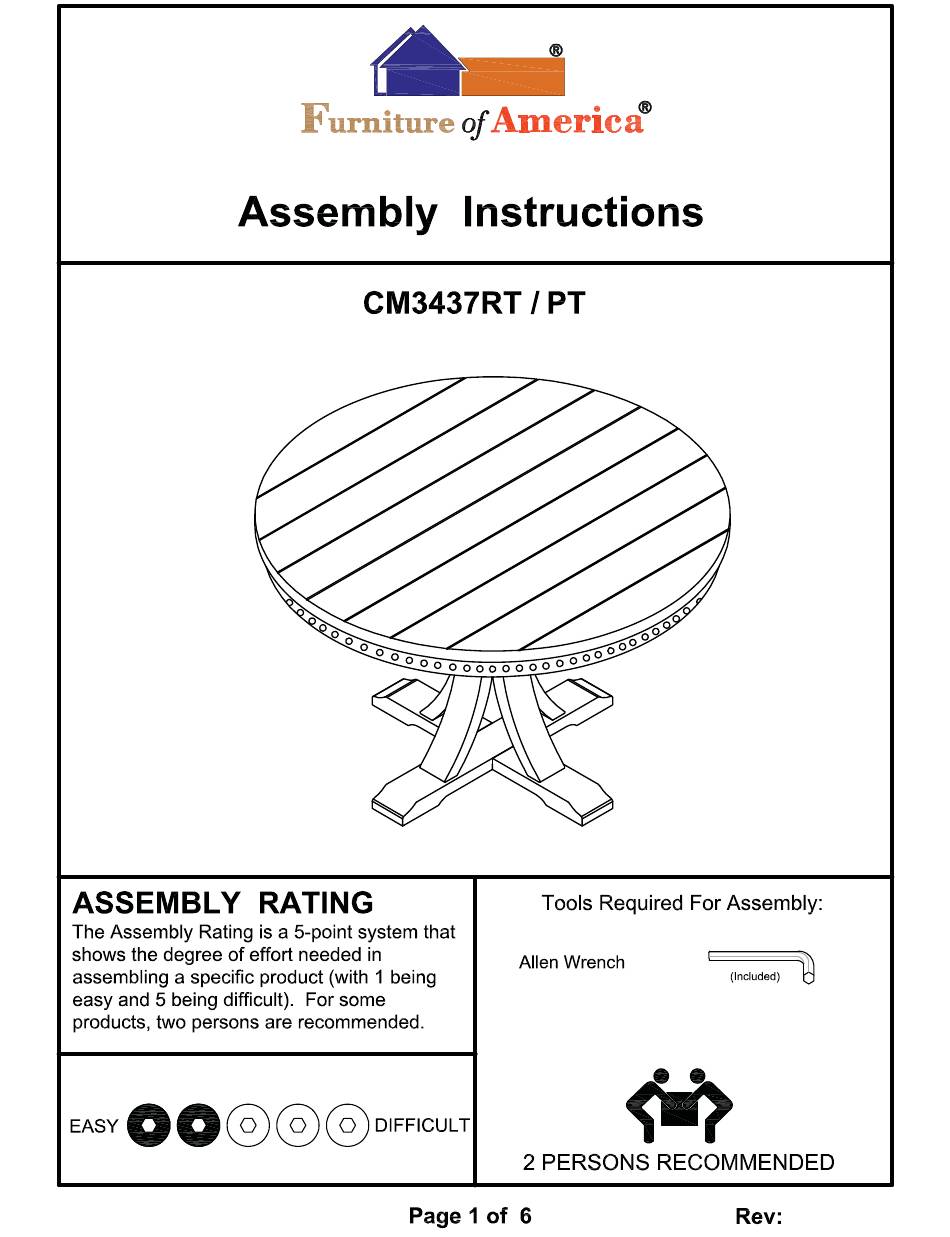

- Page 1 16-07-21...
- Page 3 Before you begin, please read Page 2 of "Assembly and Care Advice". And remember, do not tighten until each step is completed or instructed. #1 x 1 pc Table Top #2 x 4 pcs Subjoin leg #3 x 1 pc Leg Stand #4 x 1 pc Base A...
- Page 4 Align subjoin legs (#2) to the leg stand (#3) then insert. Align base A and B (#4, #5) to the leg stand (#3), then secure with bolts (#A, #H) using the Allen wrench (#G).
- Page 5 Align subjoin legs (#2) to the leg stand (#3) then insert. 1) Prepare 4 bolt assemblies. Place lock washer (#C) onto the long bolt (#A), then place flat washer (#B) onto the same long bolt (#A). 2) Align the support shelf (#6) to the leg stand (#3), then insert bolts (#A) and secure.
- Page 6 1) Prepare 4 bolt assemblies. Place lock 1) Prepare 4 bolt assemblies. Place lock washer (#F) onto bolts (#D), then flat washer (#F) onto bolts (#D), then flat washer (#E) onto the same bolts (#D). washer (#E) onto the same bolts (#D). 2) Align the leg stand to the table top, then 2) Align the leg stand to the table top, then secure with bolts (#D) by using an Allen...
