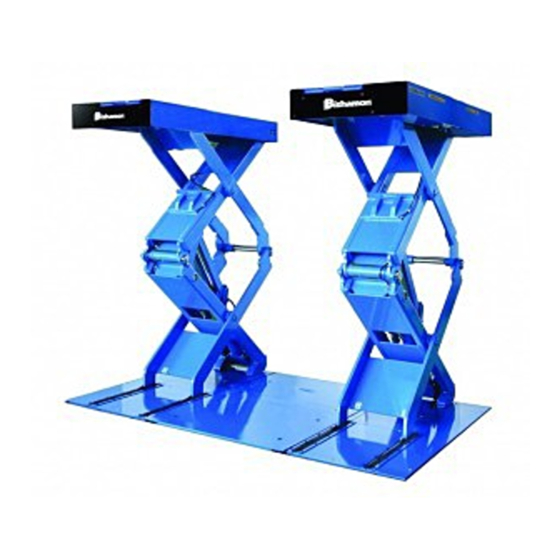

Bishamon ESC32UF Operation Manual

Status lift
Hide thumbs

Advertisement

Quick Links

Download this manual
Dear Users,
Thank you for purchasing our Bishamon Status lift. Before using the lift, read through and
be familiar with this manual. Fully understand the precautions, directions, and other
information contained in this manual to ensure correct use. Failure to do so may result
not only in insufficient performance of the lift but also in falling of the vehicle, serious
injury and death, and damage to properties.
Keep this manual in a safe place for future reference. In case of loss, immediately request
a new copy.
If the product is supplied with a wrong manual, contact your lift supplier for a correct copy.
Perform periodic maintenance inspection of the lift to ensure safe work
with the lift and keep the lift fully functional.
Sugiyasu Corporation
Nov. 2020

Advertisement

loading
Need help?

Need help?

Do you have a question about the ESC32UF and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bishamon ESC32UF

Summary of Contents for Bishamon ESC32UF

  • Page 1 Dear Users, Thank you for purchasing our Bishamon Status lift. Before using the lift, read through and be familiar with this manual. Fully understand the precautions, directions, and other information contained in this manual to ensure correct use. Failure to do so may result not only in insufficient performance of the lift but also in falling of the vehicle, serious injury and death, and damage to properties.
  • Page 2 Bishamon Status lift Thank you for purchasing our . Before using the lift, read through and be familiar with this manual. Fully understand the precautions, directions, and other information contained in this manual to ensure correct use. Failure to do so may result not only in insufficient performance of the lift but also in falling of the vehicle, serious injury and death, and damage to properties.
  • Page 3 3) ～ 5) 25) ～ 26) 29) ～ 30)

  • Page 4: Caution For Safety

    This product is a lift to be used for oil and parts replacement, general maintenance, motor vehicles inspection and maintenance etc. of mini-to ordinary sized passenger cars, small sized trucks, and the like. Caution for Safety As there are very important to protect operators from accidents which may result in injury and death,and damage to cars and properties, make sure to understand fully before operating lift.

  • Page 5: Electrical Hazard

    Drive in vehicle straight Read the Operation Manual DO NOT lower the lift thoroughly before using while any stand, jack or and parallel to the lift. the lift. support is in position Vehicle MUST BE positioned Important Warnings are under vehicle. evenly.
  • Page 6 1. This lift is designed for motor vehicle servicing. DO NOT Use for other purpose. 2. If any of safety device does not work properly, DO NOT use lift. 3. Drive in and out vehicle slowly, and DO NOT start and stop suddenly. 4.
  • Page 7 CG Label Capacity Label Caution Label CG Label Capacity Label Serial Plate Labels feature descriptions on important matters for preventing accidents and property damages, as well as capacity of the lift. Purchase and apply these lables promptly when they become worn, damaged or peeled off while the lift is used.
  • Page 8 Swing Arm Sliding Supporter Hyd. Unit Sliding Supporter Upper Sub Cylinder (S Cylinder) Control Box Air Filter Regulator Control Switch Storage Box Flat Kit Upper Main Cylinder (M Cylinder)
  • Page 9 Lift Lift Level Right Left Seeing from car entrance direction, Left side supporter rise up and lowers down.
  • Page 11 Pressure Adjustment Knob Air Pressure Gage Drain Valve...
  • Page 13 Thermal Relay sense the excessive electric current and shut off the citcuit and protect motor from burning. Thermal Relay is installed at magnet contactor. Thermal Relay Lowering Stop Device are installed at each cylinder to prevent lift from lowering in case of oil leaking and breakage of hydraulic hoses etc.
  • Page 15 Depressurize Pressurize Screw Pressure adjustment knob Air pressure gauge Caution The appropriate value of the pressure of air (primary side pressure) supplied to the air filter regulator is 0.7 ～ 1.0 MPa. The air filter regulator may be damaged if the pressure is greater than 1.0 MPa.
  • Page 16 Caution Lower the lift to lower limit, and store the Swing Arms into Swing Arm Case. If Swing Arms are not stored in the case, vehicle may hit the Supporter and Swing Arms and could result in damage to the lift and vehicle. If the lift does not lower to lower limit by pushing Lowering button, it is possible Upper Lift is not lowered to lowest.
  • Page 17 Warning ● Make suer to use Lifting Point car manufacturer designated, and do not use other spot of the vehicle for lifting up. Using other spot may result in unbalance of the vehicle and damage vehicle. Do not lift up if the Lifting Point is not clear.
  • Page 18 Danger NEVER go and stand under the vehicle during lift operation. Warning ・ DO NOT lift vehicles with passengers, baggage or cargo etc. inside (on board). ・ When operating the lift, NEVER look aside, and pay constant attention to the area around the vehicle and the lift, or it could result in serious accident.
  • Page 19 Warning ・ DO NOT shake the raised vehicle hard. The Supporter Pads could come off and vehicle could fall. ・ Pay close attention when removing or installing heavy parts to prevent the vehicle from falling. Balance could be lost and vehicle could fall. Danger NEVER go and stand under the vehicle during lift operation.
  • Page 20 Caution ・ Check and make sure the lift is lowered to the lowest. If the lift is left at midway, it could result in damage to the lift and vehicle. ・ If the Sliding Supporter is not retracted (stored back), it could result in the damage to the lift and vehicle.
  • Page 21 こちら側の受台が昇降 受台段差 Level と または を同時に押す DOWN Caution When performing rectifying operation, only Left side Supporter seeing from car entrance direction would rise or lower. Pay close attention to the movement of both sides supporters to avoid increasing the unbalance by pushing wrong side button of 『...
  • Page 25 → Check the cable for connection and ・Power cable improperly connected or broken the breakage of the wire ・Magnet contactor thermal relay activated → Identify the cause and reset ・Primary-side circuit breaker tripped → Reset primary-side circuit breaker ・Pressure of air supplied to lift is too low →...
  • Page 26 Display Device (400) (73) Function ・ Inspection Advice Air Filter Regulator ・ Number of use Air Hose (9m) Push Button Switch Motor Cable VCTF 4 Core 2 SQ 9m (Φ 9.5) Control Cable VCTF 20 Core 0.75SQ 9m (Φ14.5) 3PH 200V (Locally prepared - 4 Core bigger than 2SQ...
  • Page 28 Display Device Circuit Board...
  • Page 31 As this lift is not weatherproof, or washing model, the defects casued by rust, corrosion, short circuit from water would not be covered under warranty.
  • Page 33 3-21, 4-Chome, Hongo-Cho, Takahama City, Aichi, Japan 444-1394 Tel. 81-566-53-1126, Fax. 81-566-53-1844 http//www.bishamon.co.jp/...
