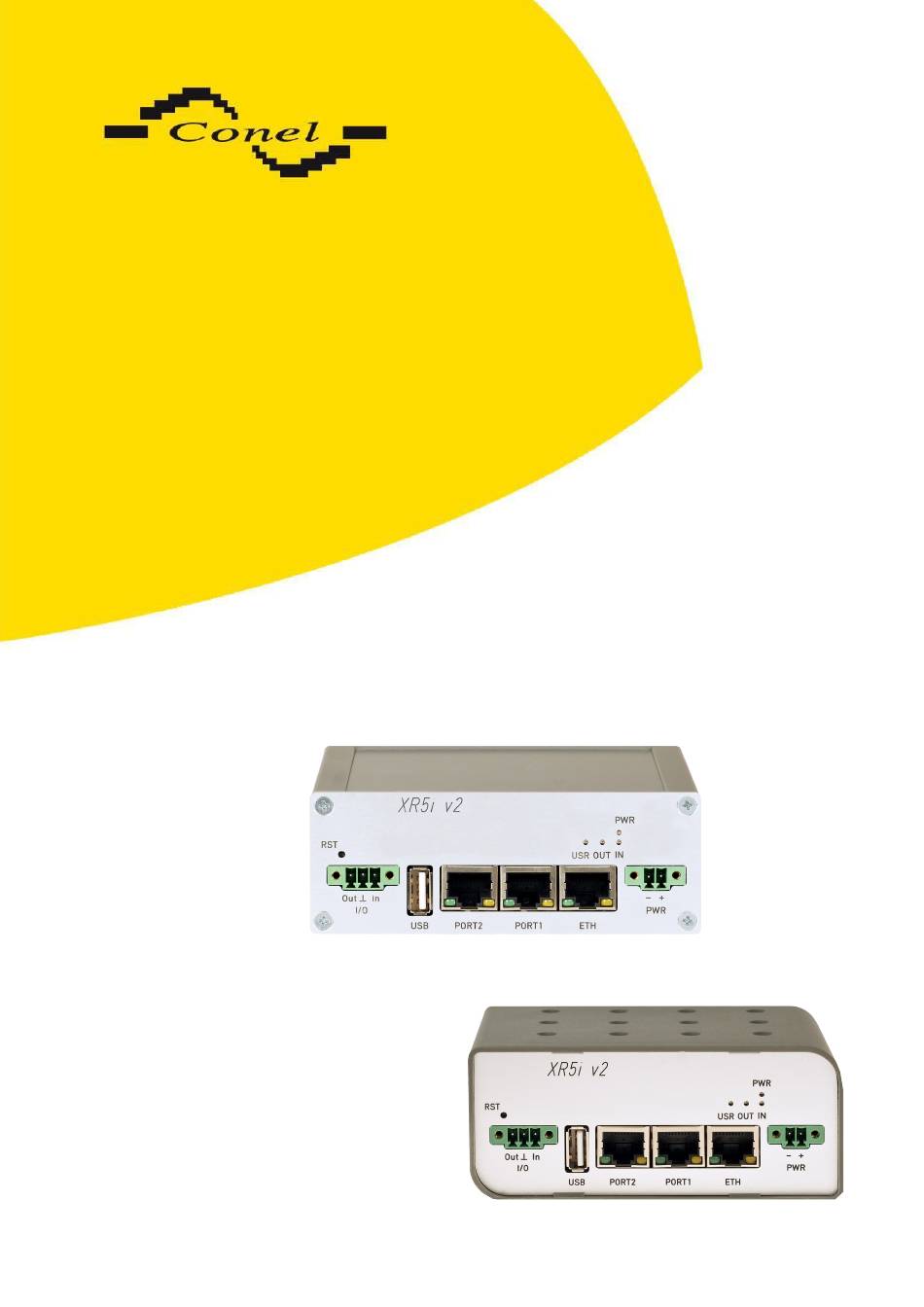

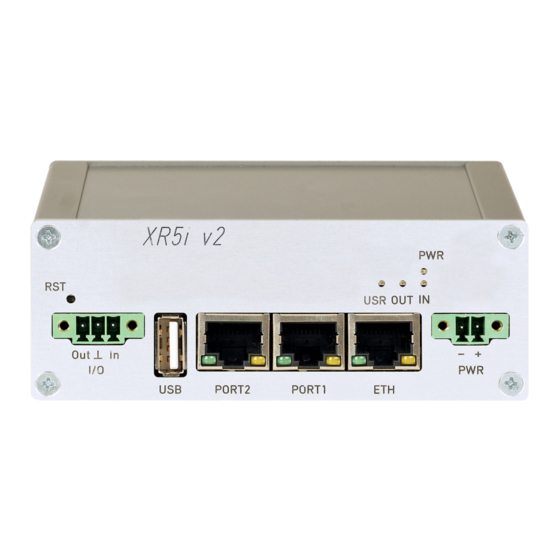

  • Page 1 XR5i v2 Industrial router XR5i v2 SL USER’S GUIDE...
  • Page 2 Information, notice – information, which contains useful advice or special interest. GPL license Source codes under GPL license are available free of charge by sending an email to info@conel.cz. Declared quality system ISO 9001 Conel s.r.o., Sokolska 71, 562 04 Usti nad Orlici, Czech Republic Manual issued in CZ, 4/17/2012...

  • Page 3: Table Of Contents

    CONTENTS Contents 1.Safety instruction 2.Product disposal instructions 3.Router description 4.Contents of package 5.Router design 5.1.Version 5.2.Delivery identification 5.3.Ordering code 5.4.Basic dimensions plastic box 5.5.Basic dimensions metal box 5.6.Mechanical external dimensions and mounting recommendations 5.7.User interfaces (connectors) 5.7.1.Status indication 5.7.2.Power connector PWR 5.7.3.Ethernet port 5.7.4.PORT1 5.7.5.PORT2...
  • Page 4 IMAGE LIST Image list Fig. 1: Contents of package Fig. 2: Front panel XR5i v2F SL Fig. 3: Front panel XR5i v2F SL Fig. 4: Label XR5i v2F Fig. 5: Label XR5i v2F SL Fig. 6 Basic dimensions plastic box Fig.
  • Page 5 TABLE LIST Table list Table 1: Expansion port possibilities Table 2: Router version Table 3: Delivery identification Table 4: Ordering code of full version Table 5: Front panel description Table 6: Router status indication Table 7: Connection of power connector Table 8: Connection of Ethernet connector Table 9: Connection of USB connector Table 10: Connection of I/O port...

  • Page 6: Safety Instruction

    SAFETY INSTRUCTION 1. Safety instruction Please, observe the following instructions: • The router must be used in compliance with all applicable international and national laws and in compliance with any special restrictions regulating the utilization of the router in prescribed applications and environments. •...

  • Page 7: Product Disposal Instructions

    PRODUCT DISPOSAL INSTRUCTIONS 2. Product disposal instructions The WEEE (Waste Electrical and Electronic Equipment: 2002/96/EC) directive has been introduced to ensure that electrical/electronic products are recycled using the best available recovery techniques to minimize the impact on the environment. This product contains high quality materials and components which can be recycled.

  • Page 8: Router Description

    Industrial router XR5i v2 is used to a secure connection of two local networks (LAN) via two Ethernet interfaces 10/100. Connection is secured by use tunnels IPSec, OpenVPN or L2TP. The other use of XR5i v2 is converter from serial line RS232, RS485, M-BUS... to IP local area network (LAN EHTERNET 100/10).

  • Page 9: Contents Of Package

    ROUTER DESCRIPTION 4. Contents of package Basic delivered set of router includes: • router, • power supply, • crossover UTP cable, • clips for the DIN rail, • installation CD containing instructions, • paper start guide. Fig. 1: Contents of package The router box and DIN mount are supplied in a metal case in the SL version of the router.

  • Page 10: Router Design

    ROUTER DESCRIPTION 5. Router design 5.1. Version PORT1 PORT2 XR5i v2F set Plastic XR5i v2F SL set Metal Table 2: Router version Fig. 2: Front panel XR5i v2F SL Fig. 3: Front panel XR5i v2F SL 5.2. Delivery identification Trade name Type name Other XR5i v2F...

  • Page 11: Ordering Code

    ROUTER DESCRIPTION 5.3. Ordering code Optional port Possible participation Ordering code Version without optional port XR5i v2F set Version with optional Ethernet port PORT1 XR5i v2F ETH set Version with optional RS232 port PORT1 a PORT2 XR5i v2F RS232 set Version with optional RS485 port PORT1 a PORT2 XR5i v2F RS458 set...

  • Page 12: Basic Dimensions Plastic Box

    ROUTER DESCRIPTION 5.4. Basic dimensions plastic box Fig. 6 Basic dimensions plastic box 5.5. Basic dimensions metal box Fig. 7: Basic dimensions metal box...

  • Page 13: Mechanical External Dimensions And Mounting Recommendations

    ROUTER DESCRIPTION 5.6. Mechanical external dimensions and mounting recommendations Mounting recommendations: • possibility to be put on a work surface, • DIN rail with clips CPD2 (Elpac clip SL for SL version) are included. For the most of applications with a built-in router in a switch board it is possible to recognize two kinds of environments: •...
  • Page 14 ROUTER DESCRIPTION Fig. 10: Space in front connectors Fig. 11: Space in front connectors SL version • for correct function of the router we recommend to use in the switch-board earth- bonding distribution frame for grounding of power supply of router, data cables and antenna,...

  • Page 15: User Interfaces (Connectors)

    ROUTER DESCRIPTION 5.7. User interfaces (connectors) On the front panel is located: Label Connector Description 2-pin Connector for connection the power supply adapter. RJ45 Connector for connection into the local computer network. Connector for connection equipment over RS232, RS458/422, PORT1 RJ45 ETHERNET, M-BUS, CNT or XC-SW.

  • Page 16: Status Indication

    ROUTER DESCRIPTION 5.7.1. Status indication About router status inform four led indicators on the front panel and on every port are two LED indicators, which inform about port status. Label Color Description Blinking ......router is ready Green Permanently on ………..starting of the router Yellow Function selected by user Green...

  • Page 17: Power Connector Pwr

    ROUTER DESCRIPTION 5.7.2. Power connector PWR Panel socket 2-pin. Signal Description number mark VCC (+) Positive pole of DC supply voltage (+10 to +30 VDC) GND (-) Negative pole of DC supply voltage Table 7: Connection of power connector Fig. 14: Power connector Power supply for router is required between +10 V to +30 V DC supply.

  • Page 18: Ethernet Port

    ROUTER DESCRIPTION 5.7.3. Ethernet port Panel socket RJ45. Signal mark Description Data flow direction number TXD+ Transmit Data – positive pole Input/Output TXD- Transmit Data – negative pole Input/Output RXD+ Receive Data – positive pole Input/Output RXD- Receive Data – negative pole Input/Output Table 8: Connection of Ethernet connector Fig.
  • Page 19 ROUTER DESCRIPTION The ETH router connection: Fig. 19: Example of router connection...

  • Page 20: Port1

    ROUTER DESCRIPTION 5.7.4. PORT1 The PORT1 is equipped with one of the offered options ports. For PORT1 are available on the interface. PORT1 RS232, RS485/422, ETHERNET, M-BUS, CNT, XC-SW (together with PORT2) Description, connection and examples of optional connection ports can be found in separate manuals expansion ports.

  • Page 21: Usb Port

    ROUTER DESCRIPTION 5.7.6. USB port Panel socket USB-A. Signal mark Description Data flow direction number Positive pole of 5V DC supply voltage USB data - USB data signal – negative pole Input/Output USB data + USB data signal – positive pole Input/Output Negative pole of DC supply voltage Table 9: Connection of USB connector...

  • Page 22: I/O Port

    ROUTER DESCRIPTION 5.7.7. I/O port Panel socket 3pin. Signal Description Data flow direction mark BIN0 Binary input Input Signal ground OUT0 Binary output Output Table 10: Connection of I/O port Fig. 25: I/O connector The user interface I/O is for processing of binary input signal and to control (settings) of binary output signal.

  • Page 23: Reset

    ROUTER DESCRIPTION 5.7.8. Reset It is important to distinguish between reset and reboot the router. Action Router behavior Invoking events Reboot Turn off and then turn on router Disconnect and connect the power. Press the reboot button in the web configuration.

  • Page 24: First Use

    ROUTER DESCRIPTION 6. First use 6.1. Connecting the router before first use Before you give up the router, it is necessary to connect all components needed for the operation of your applications and the SIM card must be inserted. (See bellow picture) In operation, the router must be connected to the antenna, otherwise damage to the router.

  • Page 25: Start Router

    ROUTER DESCRIPTION 6.2. Start router The router is set up connecting the power supply to the router. Device on the Ethernet port DHCP server will assign addresses. The behavior of the router can be modified by means of the web or Telnet interface, which is described in the configuration manual. The power consumption during receiving is 1W.

  • Page 26: Technical Parameters

    Consumption Reception 300 mW Dimensions 42x76x113 mm (DIN 35mm) Weight XR5i v2 – 150 g XR5i v2 SL – 280 g User interface ETH and PORT1 Ethernet (10/100 Mbit/s) USB 2.0 type A host PORT2 Optional RS232, RS485/422 or M-BUS Table 12: Technical parameters of router 7.2.

  • Page 27: Recommended Literature

    8. Recommended literature [1] Conel: Start guide, [2] Conel: Configuration manual, [3] Conel: User’s manual - Expansion port RS232, [4] Conel: User’s manual - Expansion port RS485/RS422, [5] Conel: User’s manual - Expansion port M-BUS, [6] Conel: User’s manual - Expansion port CNT, [7] Conel: User’s manual - Expansion port ETH,...

  • Page 28: Faq

    10. FAQ  I can’t get from internet on equipment, which is connected to router and I have NAT enabled.  The device's gateway has to be configured as the router.  Router resets itself, connection on Ethernet fails.  It is necessary to use an antenna, which will be situated far from power supply.

  • Page 29: Customers Support

    During cleaning of the router do not use aggressive chemicals, solvents and abrasive  cleaners! Conel Company hereby declares that the router narrated in this user’s guide fits all basic demands of directive 1999/5/EC (R&TTE). Router fits values of coefficient SAR defined by association ICNIRP and values of “About protection of health before non-ionized radiation“.
