- Page 1 Assembly Instruction D-GG001PST-F1 Production Number:2018xxxx...
- Page 2 Our clear, easy to follow, step by step instructions will guide you through the project from start to finish Please do not return this product to the store. For technical assistance or replacement parts, please call Sunjoy Group at 1 (866) 578-6569 between 8:00 AM EST and 8:00 PM PST. You may fax your replacement parts form (which is included in the packaging) to 1 (740) 283-3549 or email to customer.care@sunjoygroup.com...
- Page 3 Parts List Post (1) Post (2) Post (3) Big Beam Big Connector Small Beam Long Screen Short Screen Glass Panel Glass Panel Hook rack Bolt Bolt Big Canopy Small Canopy Hook LED Light...

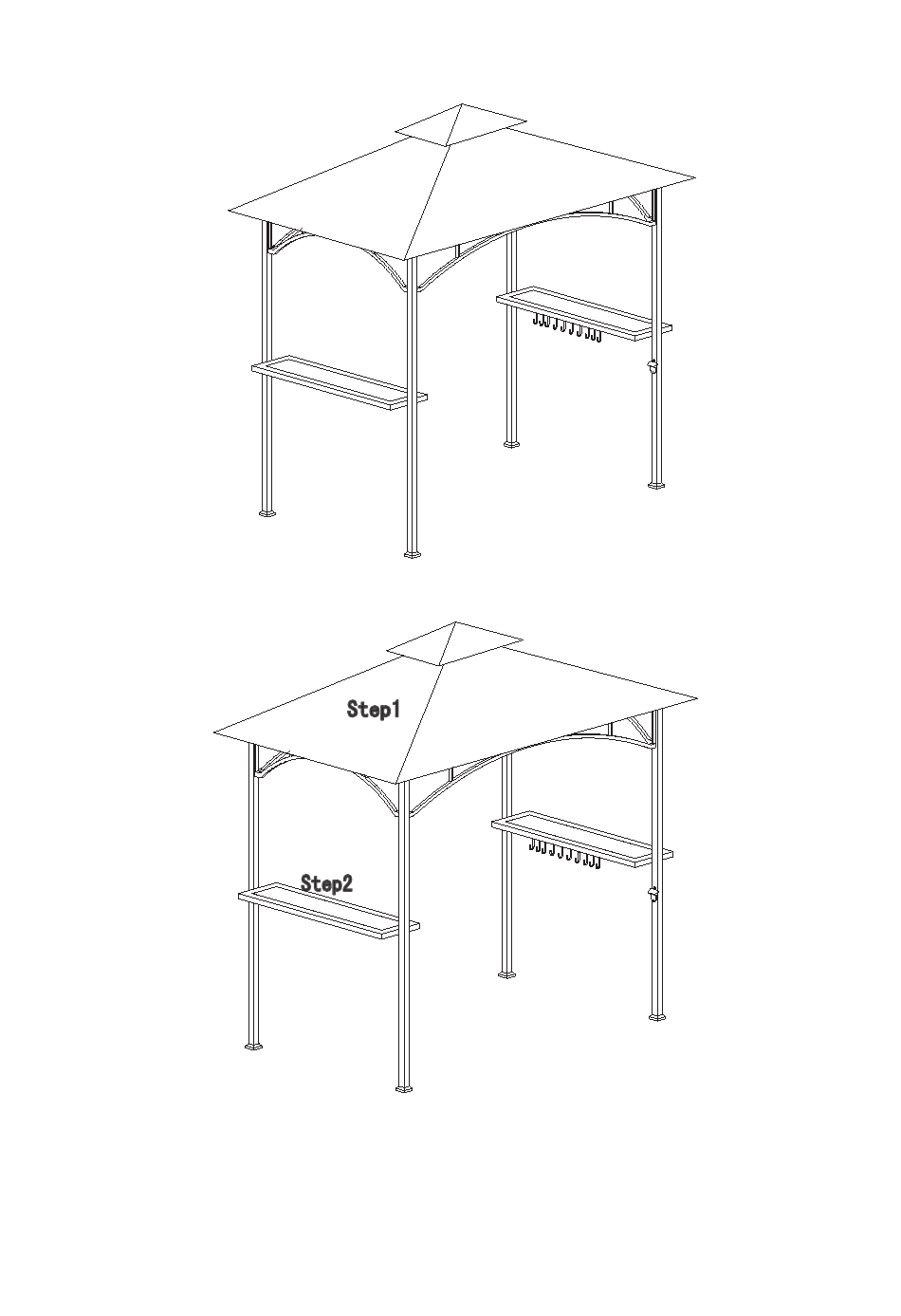

- Page 4 Fig.1: Attach the Long Screen (E) and the Short Screen (F) to Post (A1、A2、A3) with the Bolt (I). Fig.2: Attach the Big Beam (B) to the Big Connector (C), and then attach the Hook (L ) to the Big Connector (C). Fig.3: Insert the connector of the Big Beam (B) into the intubation tube of Post (A1, A2, A3), then put the Big Canopy (J) on big top, do not fully spread.
- Page 5 Hardware Pack Φ 6X230MM Floor Nail 8PCS Fig.7: Extend the Big Canopy (J) onto the big top by fixing the canopy at four corners of top. Fig.7-1 Attach the Hook (H) to Glass Panel (G2) with the Bolt (II). Fig.8: Insert the Glass Panel (G1, G2) into the Post (A1, A2, A3), then attached them tightly with the Bolt (I).
