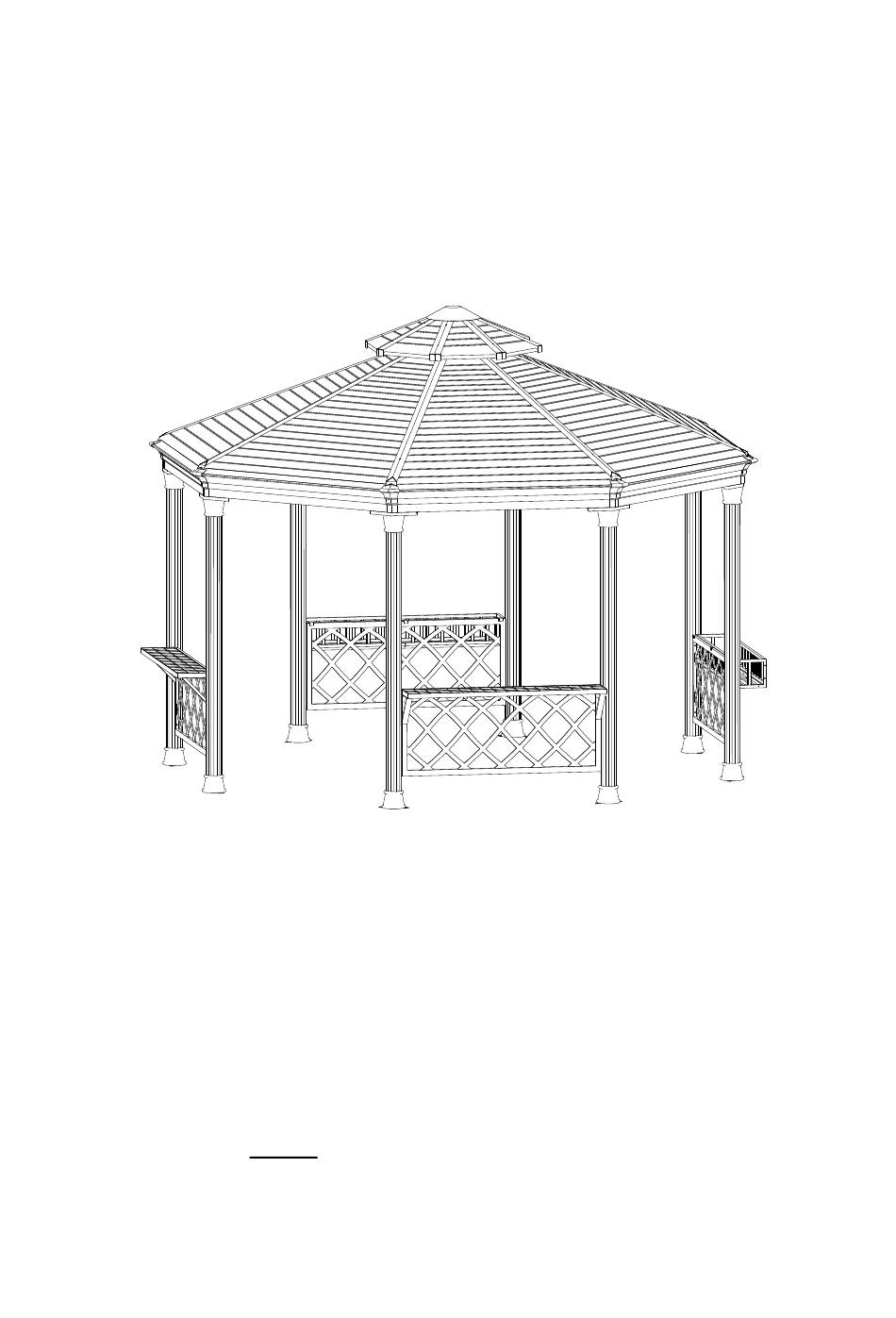

ASSEMBLY INSTRUCTIONS
Item#: D-GZ845PCO-AS-134/D-GZ845PCO-H (Black Top)
D-GZ845PCO-AS-234/D-GZ845PCO-H1 (Faux Copper Top)
Thank you for your purchase!
Our clear, easy-to-follow, step-by-step instructions will guide you through the project from start
to finish. The final product will be a quality piece that will go together smoothly and give years
of enjoyment. All you will need is a screwdriver, a hammer and two ladders (not included)
whose height is no less than 2.5m (8 ft.)
Note: THIS UNIT IS HEAVY!
Do NOT assemble this item alone for safety. Six people are necessary.
Item Identification: For ease of identification, all parts are labeled to correspond to the Step
number in which the part is used.
1 / 15
Advertisement
Table of Contents
Related Manuals for Sunjoy D-GZ845PCO-AS-134
Summary of Contents for Sunjoy D-GZ845PCO-AS-134
- Page 1 ASSEMBLY INSTRUCTIONS Item#: D-GZ845PCO-AS-134/D-GZ845PCO-H (Black Top) D-GZ845PCO-AS-234/D-GZ845PCO-H1 (Faux Copper Top) Thank you for your purchase! Our clear, easy-to-follow, step-by-step instructions will guide you through the project from start to finish. The final product will be a quality piece that will go together smoothly and give years of enjoyment.
-
Page 2: Safety Information
Safety information •Keep all children and pets away from assembly area. Children and pets should be supervised when they are in the area of the production construction. •This package contains small items and plastic bags that should be kept away from children. •Keep assembly area at least 6 ft. -
Page 3: Parts List
Parts List Description Part Label Qty. Image Gutter GZ0845XXH01 Large top roof bar GZ0845XXH03 Center hook GZ0845XXH05 Top connector GZ0845XXH07 Top roof covering GZ0845XXH09 Large roof panel 1 GZ0845XXH11 Baffle 1 GZ0845XXH13 Upper covering GZ0845XXH15 for large roof Post 2 GZ0845XXH17 Side panel 2 GZ0845XXH19... - Page 4 Description Part Label Qty. Image Corner connector GZ0845XXH02 Roof connection GZ0845XXH04 Top roof bar GZ0845XXH06 Roof panel GZ0845XXH08 Top roof GZ0845XXH10 Large roof panel 2 GZ0845XXH12 Baffle 2 GZ0845XXH14 Post 1 GZ0845XXH16 Side panel 1 GZ0845XXH18 C3-1 Baffle GZ0845XXH20 Side panel of GZ0845XXH22 planter box Plate...
-
Page 5: Hardware Pack
Hardware pack 1 Description Part Label Qty. Picture M6*35 Bolt BM06035C M6” Flat washer UD06C M6*20 Bolt BM06025C M6*15 Bolt BM06015C M6*55 Bolt SM06055C M6*55 Bolt BM06055C M6 Nut LM06C M6 Wrench W10D Ф8*260 Stake DD08260C Ф10*70 Expansion bolt PZM10070C 5 / 15... - Page 6 Fig.1: Attach Gutter (A1) to Post A3 & B3 with Bolt (g) and Washer (b). Fig.2: Attach Side panel C3-1(C3-2) to Post A3 & B3 with Bolt (h) and Washer (b). (Make sure the side with hole is outside) Fig.3: Two person set up the assembled post and another person raises Gutter (A1), the fourth person attaches (A1) to the assembled post with Bolt (g &...
- Page 7 Fig.6: Attach Corner connector (B1) to Gutter (A1) with Bolt (i) and Washer (b). Fig.7: Attach Baffle (D3) to Gutter (A1) with Bolt (g) and Washer (b). Fig.8-1: Attach Corner connector (B1) to Large top roof bar (C1) with Bolt (d), Flat washer (b) and Nut (e). Fig.8-2: Attach Large top roof bar (C1) to Roof connection (D1) with Bolt (i) and Flat washer (b).
- Page 8 Fig.9-1: Attach Center hook (H1) to Top connector (J1). Fig.9-2: Attach Top roof bar (I1) to Top connector (J1) with Bolt (h), flat Washer (b) and Nut (e). Fig.10: Attach Top roof bar (I1) to Roof connection (D1) with Bolt (c), flat Washer (b). 8 / 15...
- Page 9 Fig.11: Attach Roof panel (B2) to Top roof bar (I1) with Bolt (c) and Flat washer (b). Fig 12: Attach Top roof covering (C2) to Top roof bar (I1) with Bolt (f) and Flat washer (b). Fig 13: Attach Top roof (D2) to Top connector (J1) with Nut (k) and Flat washer (l). Fig.14-1: Attach Baffle 1 (H2) to Large roof panel 1(F2) with Bolt (i) and Flat washer (b).
- Page 10 Fig.14.3: Attach Baffle 2 (A2) to Large roof panel 2 (G2) with Bolt (i) and Flat washer (b). Fig.14.4: Attach Large roof panel 2 (G2) to the corner of Gutter (A1) with Bolt (c) and Flat washer (b). Fig.15-1: Insert Upper covering for large roof (I2) into the hole of Top roof bar (I1). Fig.15-2: Attach Upper covering for large roof (I2) to Baffle 2 (A2) with Bolt (c) and Flat washer (b).
- Page 11 Fig.16-1: Attach Side panel (F3) to Planter box (E3) with Bolt (n) and Flat washer (b). Fig.16-2: Hang the assembled planter box on the Side panel 2 (C3-2). Fig.17-1: Attach Top bracket (I3) to Side panel 1 (C3-1) with Bolt (i) and Flat washer (b); attach Slate table top (G3) to Top bracket (I3) at the same time.
-
Page 12: Spare Parts
Please do not return this product to the store. For technical assistance or replacement parts, please call Sunjoy Group at 1 (866) 578-6569 between 8:00 AM EST and 8:00 PM PST. You may fax your replacement parts form (which is included in the packaging) to 1 (740) 283-3549 or email to customer.care@sunjoygroup.com... -
Page 13: Care And Maintenance
Care & Maintenance •Before using, clean the product completely with a soft, dry towel. When not in use, wipe free of any dirt or loose objects, wash with a mild solution of soap and water; rinse thoroughly and dry completely. •Do not use strong detergent or abrasive cleaners. - Page 14 GAZEBO NETTING AND CURTAIN ASSEMBLY INSTRUCTIONS Netting / Curatin is available separately 14 / 15...
- Page 15 Fig.19-1: Raise Connector (S2/S1) and take them down. Fig.19-2: Pull out Short netting bar (T1) and Long netting bar (T2) from Connector (S1/S2). Fig.20: Hang the five rings of curtain into Short netting bar (T1) from right side, then insert Short netting bar (T1) into Right connector (S2).
