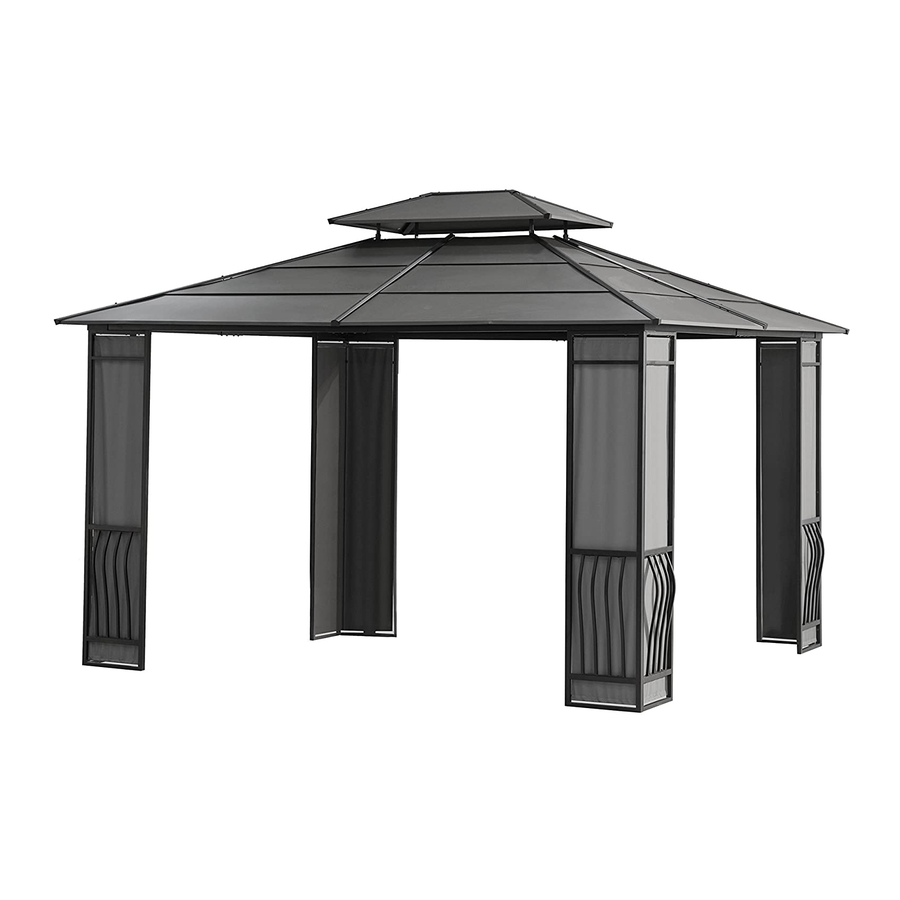

Sunjoy D-GZ840PST-C 10' x 12' Wyndham Hardtop Gazebo
- Black Top
Owner's Manual
IMPORTANT
Thank you very much for choosing Sunjoy Group.
Please take time to read these instructions thoroughly and follow each step carefully for safe and easy
operation. Keep this manual for future reference.
We would like to hear from you with any comments or suggestions. You can call us toll-free at
1-866-578-6569
from 8:00 a.m. EST to 8:00 p.m. PST. You can also send the email to
amazon@sunjoygroup.com
or visit
www.sunjoyonline.com
to get tech. assistance or to place your
replacement part order form.
Cautions:
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Sunjoy D-GZ840PST-C
Summary of Contents for Sunjoy D-GZ840PST-C
- Page 1 Sunjoy D-GZ840PST-C 10' x 12' Wyndham Hardtop Gazebo - Black Top Owner’s Manual IMPORTANT Thank you very much for choosing Sunjoy Group. Please take time to read these instructions thoroughly and follow each step carefully for safe and easy operation. Keep this manual for future reference.
- Page 2 Cautions: 1. Keep all children and pets away from assembly area. Children and pets should be supervised when they are in the area of gazebo construction. 2. The area for assembly should not be less than 6 feet from any obstruction such as fence, garage, house, overhanging branches, laundry line or electrical wires.
-
Page 3: Parts List
Parts List Big top frame 2PCS Big top bar 2PCS Small top support beam 4PCS Small top connector 1PCS Pothook 1PCS Small top roof panel 1 2PCS Small top roof panel 2 2PCS Small top cover 4PCS Small top roof cover Slanting bar connector 4PCS Beam connector (upper) - Page 4 Top slanting bar 4PCS Top beam 4PCS Long side left roof panel 1 2PCS Long side right roof panel 1 2PCS Long side left roof panel 2 2PCS Long side right roof panel 2 2PCS Long side left roof panel 3 2PCS Long side right roof panel 3 2PCS...
-
Page 5: Hardware Pack
Hardware Pack 1 M6*15 Bolt 84 PCS M6 Bigger flat washer 250PCS M6*60 Bolt 16PCS M6 Nut 32 PCS M6*35 Bolt 8 PCS M6*15 Bolt 80 PCS M6*70 Bolt 16 PCS M6*35 Bolt 16 PCS M6*25Bolt 12PCS M6*45Bolt 2 PCS M6 Wrench 2 PCS... - Page 6 Fig.1: Fix Big top frame A1 and Big top bar B1 by using AA, BB. Fig.2: Fix Small top support beam C1 and Big top frame A1 by using AA, BB. Fig.3: Fix Small top support beam C1 and Small top connector D1 by using DD, BB, CC.
- Page 7 Fig.8-2: Attach Top slanting bar A3 to Slanting bar Fig.8-1: Attach Top slanting bar A3 connector F2, Top beam B3 to Beam connector G2 by and Top beam B3 to Big top frame A1 using CC, BB, DD. (Do step fig8.1 and fig8.2 at the by using FF, BB.
- Page 8 Hardware Pack 2 M6*15 Bolt 44 PCS M6 Bigger washer 60 PCS M6*35 Bolt 16 PCS Φ6X260 Stake 16 PCS Fig.14-1: Assemble Long side left roof panel C3 and Long side left roof panel E3 for a whole piece. Fig.14-2: Attach the assembled Long side left roof panel C3 and Long side left roof panel E3 onto the top frame by using AA, BB (Repeat the procedure for D3, F3, G3, H3, I3, J3, K3, L3, M3)
-
Page 9: Backup Parts
Fig.15-1: Insert Big roof Fig.15-2: Then attach Big roof Fig.16: Attach Panel wall Fig.17: Fasten the whole panel cover N3 into the panel cover N3 to Top slanting gazebo to the ground with into tube with hole Small bar A3 by using EE, BB, lock Big Stake KK. -
Page 10: Care And Maintenance
Care & Maintenance: Our steel components for garden accessories and furniture are treated with rust inhibiting paint that protects it from rusting. However, due to the nature of steel, surface oxidation (rusting) will occur once these protective coatings are scratched. This is not a defect and thus not covered by the warranty.
