Summary of Contents for Sunjoy D-GZ007PST

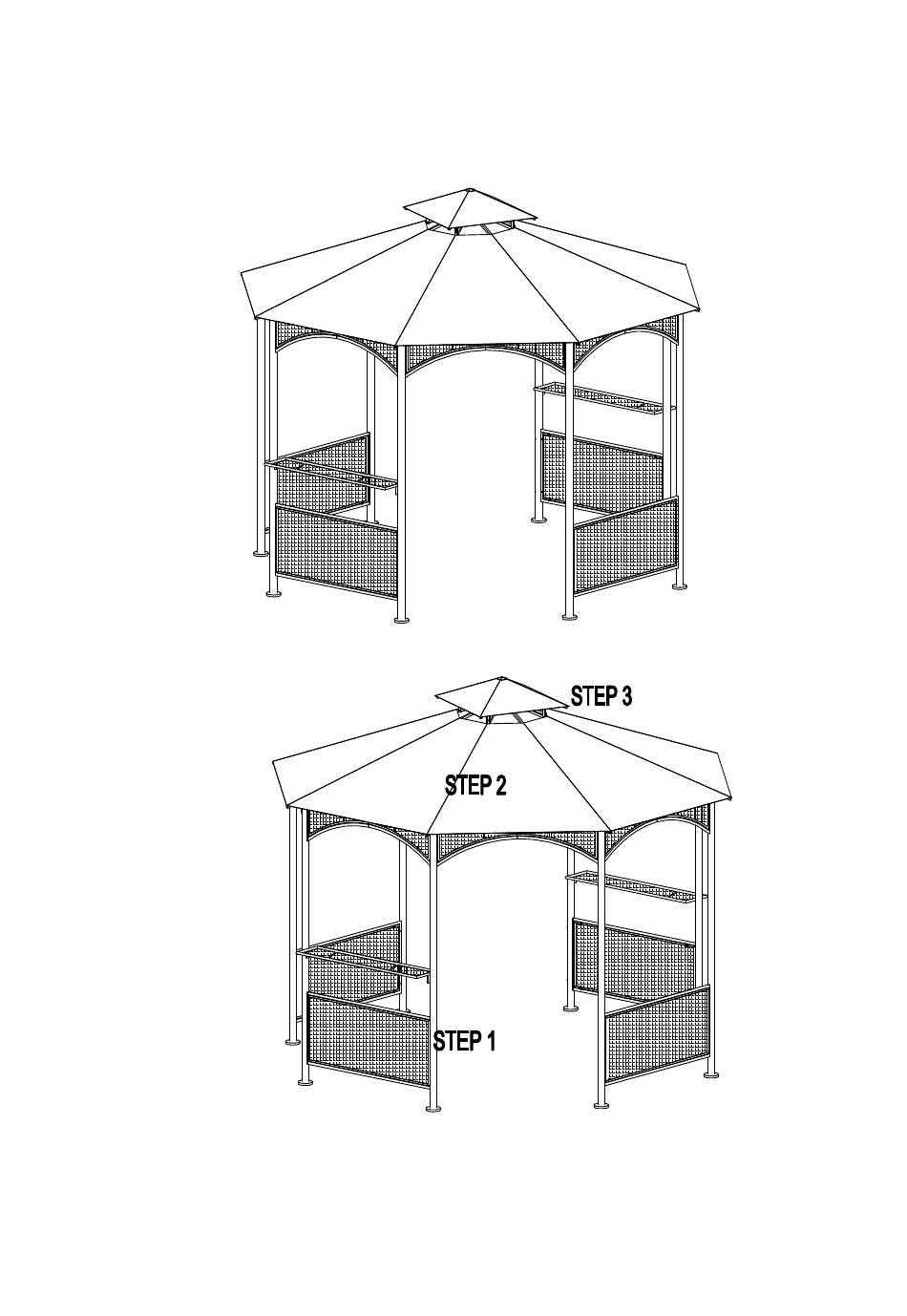

- Page 1 Assembly Instructions Item# D-GZ007PST 1 / 7...
- Page 2 Parts List Parts Name Qty. Picture Small Top Connector Hook Small Top Bar Large Top Connector Top Bar 1 Top Bar 2 Screen Pole 1 Pole 2 Pole 3 Pole 4 Fence Bar Top Big Canopy Small Canopy 2 / 7...
- Page 3 Hardware Pack 1 M6*20 Screw 56 PCS M6 Flat Washer 56 pcs M6 Wrench 1 PC Fig.1 Attach Screen (G) to Pole Fig.2 Attach Fence(I) Fig.3 Connect Bar Top (J) to Pole (H1, H2, H3, H4) by using Screw Pole(H1,H2,H3,H4)and by using (H3, H4) by using Screw (AA) and (AA) and Flat washer (BB) Screw(AA)and Flat washer(BB)
- Page 4 Hardware Pack 2 M6 Flat Washer 16pcs M6 Nut 8PCS M6*45 Screw 8pcs M6 Wrench 1 PCS Fig.5 Connect Top Bar 2(F) and Fig.4 Screw Hook (B) into Large Fig.6 Insert Top Bar 1(E) Pole (H1/H2/H3/H4) by using Top Connector (D), then insert into Large Top Connector Screw (DD), Flat Washer (BB) Top Bar 2(F) into Large Top...
- Page 5 Hardware Pack 3 Dia.6x180 Stake 16PCS Fig.12 Secure the whole gazebo Fig.11 Lay out Big Canopy (K) Fig.10 Lay out Small Canopy (L) to the ground with Dia.6x180 completely, and then tie it to Top completely and tie it to Small Top Stake (EE).
- Page 6 IMPORTANT: 1. Keep all children and pets away from assembly area. Children and pets should be supervised when they are in the area of gazebo construction. 2. The area for assembly should not be less than 6 feet from any obstruction such as fence, garage, house, overhanging branches, laundry line or electrical wires.
- Page 7 Important: Please do not return this product to the store. For technical assistance on assembly or replacement parts. Please call Sunjoy Industries at 1-866-578-6569 from 8:00 am EST to 8:00 pm PST or fax the replacement part form which is in the box to 1-740-283-3549 or Email customer.care@sunjoygroup.com for assistance.
