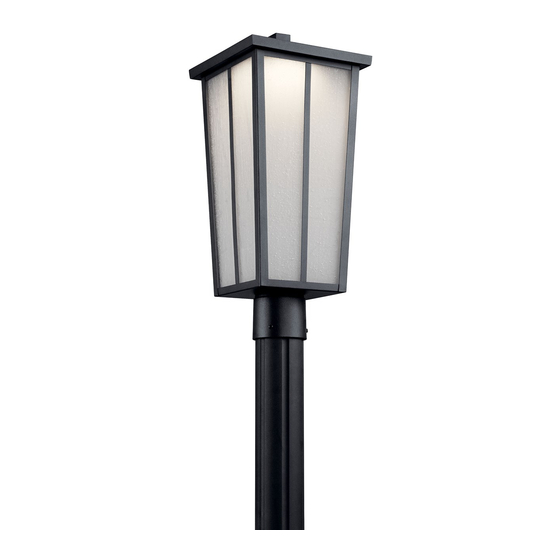

Kichler Lighting AMBER VALLEY Series Manual

WARNING:
• This fixture is intended for installation in accordance with the
National Electric Code (NEC) and all local code specifications.
• Supply wires are not intended for use through or concealed
behind walls, floors, or ceilings.
• The LED light output is strong enough to injure human eyes.
Precautions must be taken to prevent looking directly at LED's
with unaided eyes for more than a few seconds.
DIMMING: This LED fixture is compatible with most standard
incandescent dimmers, LED dimmers, and electronic low voltage
dimmers. For optimal performance, an electronic low voltage
dimmer should be used.
1) Read and understand all instructions and illustrations completely
before proceeding with assembly and installation of fixture.
2) If you have any doubts about how to install this fixture, or if the
fixture fails to operate completely, please contact a qualified
electrician.
3) All parts must be used as indicated in the instructions. Do not
substitute any parts, leave parts out, or use any parts that
are worn or broken. Failure to obey this instruction could
invalidate the UL listing, C.S.A. certification, and/or ETL listing
of this fixture.
4) Fixture is to be connected to a single branch circuit.
1) TURN OFF POWER.
IMPORTANT: Before you start, NEVER attempt any work
without shutting off the electricity until the work is done.
a) Go to the main fuse, or circuit breaker, box in your home.
Place the main power switch in the "OFF" position.
b) Unscrew the fuse(s), or switch "OFF" the circuit breaker
switch(s), that control the power to the fixture or room that
you are working on.
c) Place the wall switch in the "OFF" position. If the fixture to
be replaced has a switch or pull chain, place those in the
"OFF" position.
2) Unscrew roof retainging screws from roof of fixture.
3) Remove all packaging materials from inside fixture body.
4) Place roof down on top of fixture. Thread screws from step 2
into holes in roof. Tighten screws to secure roof to fixture.
5) If fixture is provided with ground wire, connect fixture ground
wire to supply ground wire with wire connector. Never connect
ground wire to black or white power supply wires.
6) Make wire connections. Reference chart below for correct
connections and wire accordingly.
Connect Black or
Red Supply Wire to:
Black
*Parallel cord (round & smooth)
Clear, Brown, Gold or Black
without tracer
Insulated wire (other than green)
with copper conductor
*Note: When parallel wires (SPT I & SPT II)
are used. The neutral wire is square shaped
or ridged and the other wire will be round in
shape or smooth (see illus.)
7) Slip fixture over post and secure in place using #8-32 screws
provided.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment gener-
ates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful inter-
ference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Date Issued: 10/23/15
Connect
White Supply Wire to:
White
*Parallel cord (square & ridged)
Clear, Brown, Gold or Black
with tracer
Insulated wire (other than green)
with silver conductor
Neutral Wire

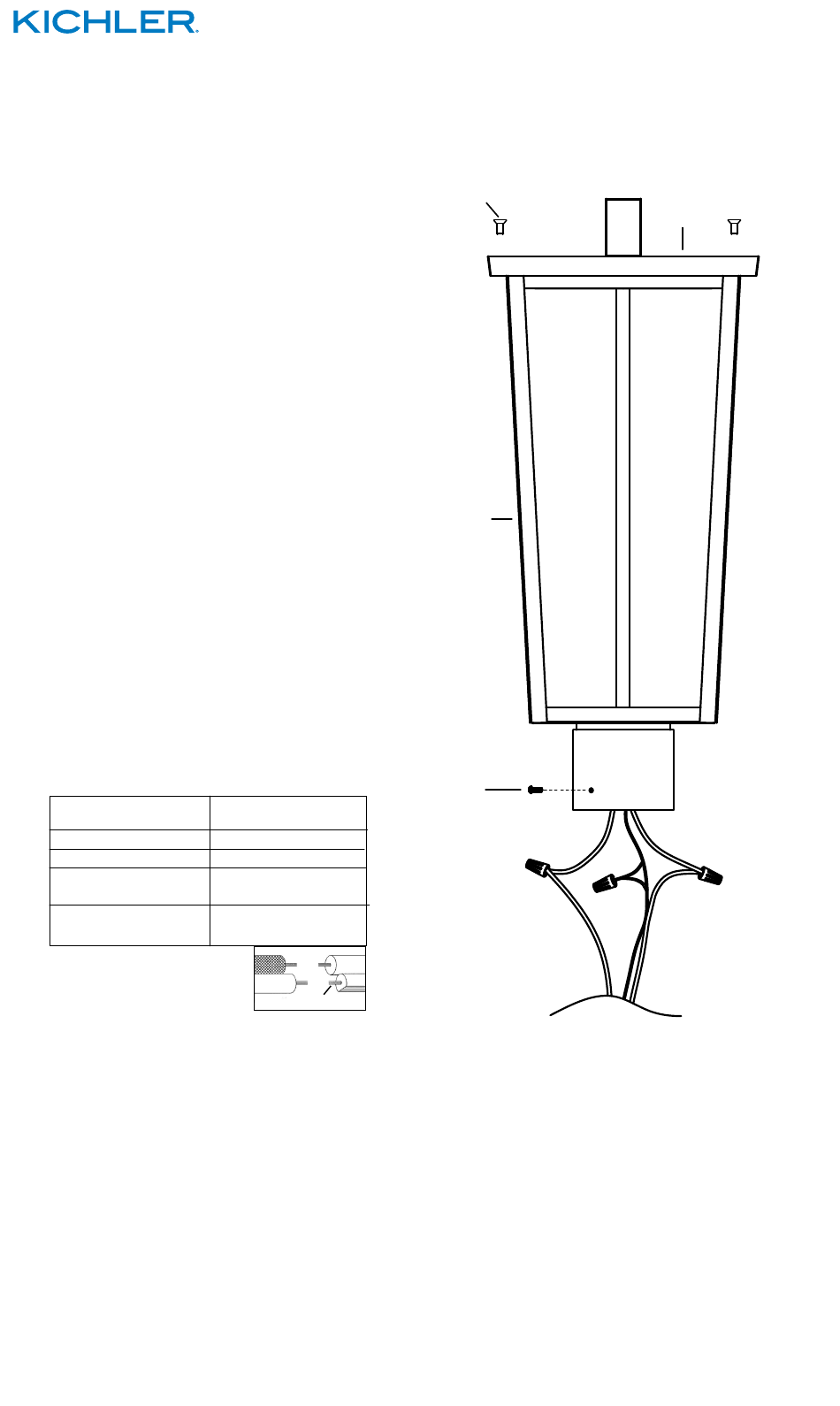

NOTE: The fixture 49625 is shown. Your fixture may
vary. The installation instructions will be the same.
ROOF RETAINING SCREW
TORNILLO
TORNILLOS QUE SUJETAN
EL TECHO
FIXTURE
ARTEFACTO
SCREW
TORNILLO
SEE OTHER SIDE FOR SPANISH TRANSLATIONS.
VEA EL OTRO LADO DE TRADUCCIONES AL ESPAÑOL.
866-558-5706
We're here to help
Hrs: M-F 9am to 5pm EST
ROOF
TECHO
IS-49625LED-US
