Summary of Contents for Belson Outdoors DELUXE PLD8NB-P

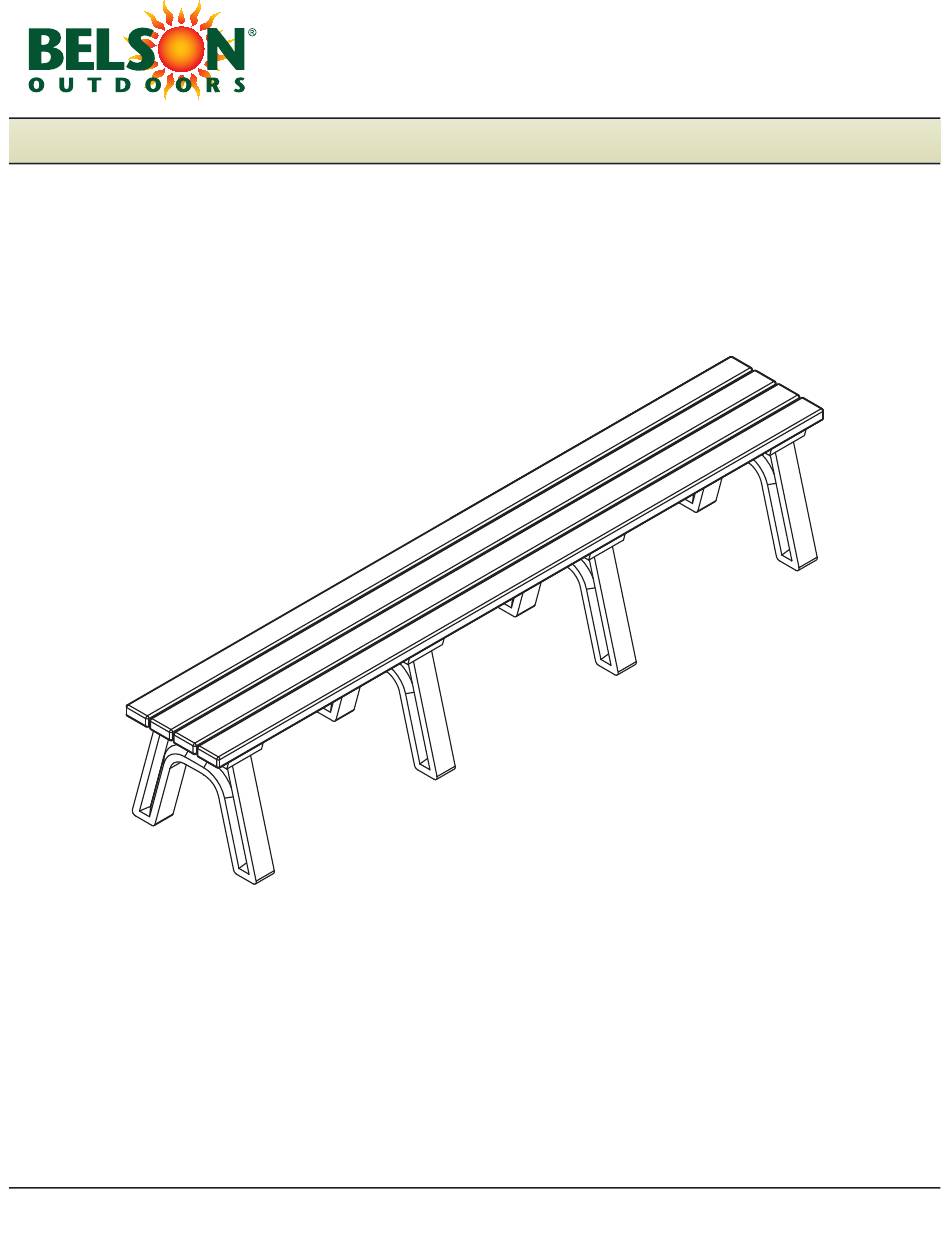

- Page 1 627 Amersale Drive Naperville, IL 60563 Phone: (800) 323-5664 Fax: (630) 897-0573 sales@belson.com Model # PLD8NB-P Instructions Sheet DELUXE RECYCLED PLASTIC BACKLESS PLANK BENCHES www.belson.com...
- Page 2 BEFORE ASSEMBLY, PLEASE MAKE SURE ALL COMPONENTS ARE INCLUDED. FP - FASTENER PACK ( 1 ) - ONE FASTENER PACK C - BENCH END ( 4 ) - FOUR BENCH ENDS B - SIDE BENCH BOARD ( 2 ) - TWO SIDE BENCH BOARDS A - CENTER BENCH BOARD ( 2 ) - TWO CENTER BENCH BOARDS www.belson.com...
- Page 3 BEFORE ASSEMBLY, PLEASE MAKE SURE ALL FASTENERS ARE INCLUDED. 32 - #12 X 2-1/2” FLAT HEAD PHILLIPS SCREWS ALSO NEEDED FOR THIS ASSEMBLY WILL BE THE FOLLOWING MATERIALS: 1 - 3” PHILLIPS DRIVE BIT www.belson.com...
- Page 4 STEP #1: PLACE THE CENTER BENCH BOARD ON A LEVEL SURFACE WITH THE PILOT HOLES FACING UP. ON EACH SIDE OF THE CENTER BENCH BOARD, PLACE ( 1 ) ONE SIDE BENCH BOARD WITH THE PILOT HOLES CLOSEST TO THE CENTER BENCH BOARD AND FACING UP. #12 X 2-1/2”...
- Page 5 #12 x 2-1/2” FLAT HEAD PHILLIPS SCREW STEP #3: PLACE THE LAST ( 2 ) TWO BENCH END IN POSITION, AS SHOWN ABOVE, BEING SRE TO ALIGN THE PRE-DRILLED HOLES TO THE PILOT HOLES IN THE BENCH BOARDS. AFTER THE HOLES ARE PROPERLY ALIGNED, FASTEN WITH ( 1 ) ONE #12 X 2-1/2”...
