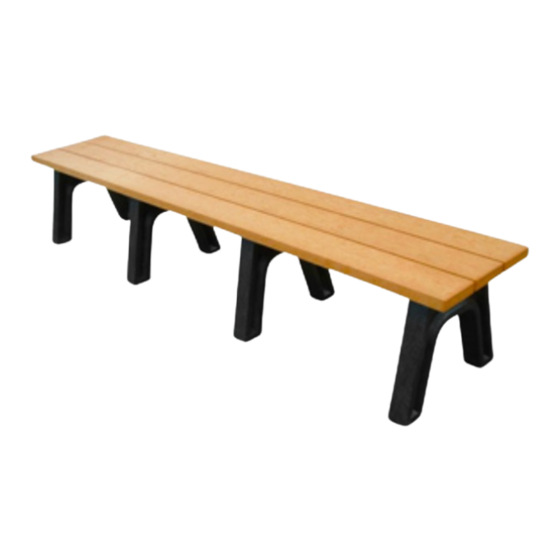

- Page 1 111 North River Road North Aurora, IL 60542 Phone: (800) 323-5664 Fax: (630) 897-0573 sales@belson.com Model # CA8NB-P Instructions Sheet CAMBRIDGE RECYCLED PLASTIC MEMORIAL PARK BENCH www.belson.com...
- Page 2 BEFORE ASSEMBLY, PLEASE MAKE SURE ALL COMPONENTS ARE INCLUDED. FP - FASTENER PACK ( 1 ) - ONE FASTENER PACK C - BENCH END ( 4 ) - FOUR BENCH ENDS B - BULL NOSED BENCH BOARD ( 2 ) - TWO BULL NOSED BENCH BOARDS A - CENTER BENCH BOARD ( 4 ) - FOUR CENTER BENCH BOARDS www.belson.com...
- Page 3 BEFORE ASSEMBLY, PLEASE MAKE SURE ALL FASTENERS ARE INCLUDED. 48 - #12 X 2-1/2” FLAT HEAD PHILLIPS SCREW ALSO NEEDED FOR THIS ASSEMBLY WILL BE THE FOLLOWING MATERIALS: 1 - 3” PHILLIPS DRIVE BIT www.belson.com...
- Page 4 STEP #1: PLACE THE CENTER BENCH BOARDS ON A LEVEL SURFACE WITH THE PILOT HOLES FACING UP. ON EACH SIDE OF THE CENTER BENCH BOARDS, PLACE ( 1 ) ONE SIDE BENCH BOARD WITH THE PILOT HOLES CLOSEST TO THE CENTER BENCH BOARDS AND FACING UP. #12 X 2-1/2”...
- Page 5 #12 X 1-1/2” FLAT HEAD PHILLIPS SCREW STEP #3: PLACE THE REMAINING BENCH ENDS IN POSITION, AS SHOWN ABOVE, BEING SURE TO ALIGN THE PRE-DRILLED HOLES TO THE PILOT HOLES IN THE BENCH BOARDS. AFTER THE HOLES ARE PROPERLY ALIGNED, FASTEN WITH ( 1 ) ONE #12 X 2-1/2” FLAT HEAD PHILLIPS SCREW PER HOLE TO SECURE.
