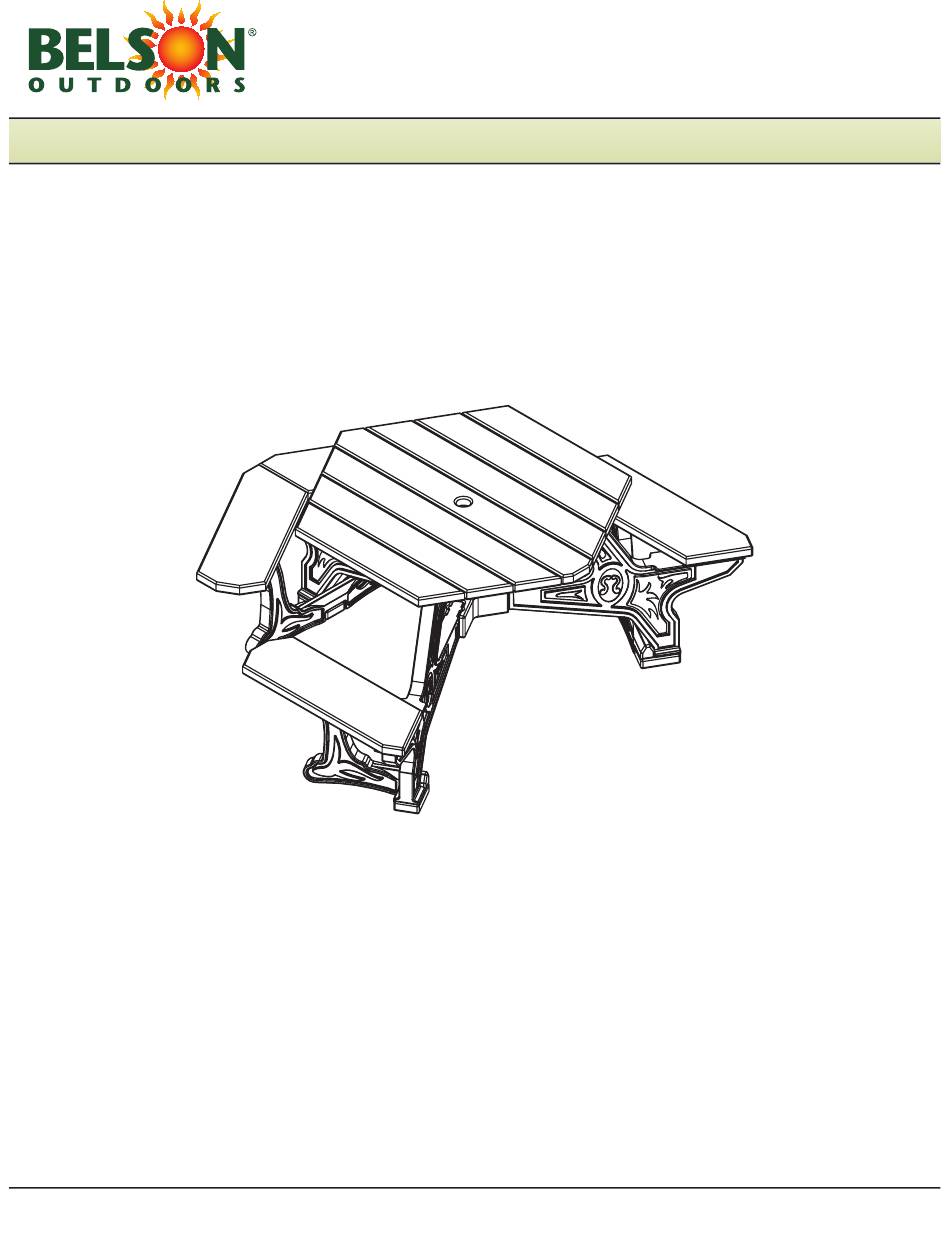

- Page 1 627 Amersale Drive Naperville, IL 60563 Phone: (800) 323-5664 Fax: (630) 897-0573 sales@belson.com Model # DF6SH-P Instructions Sheet RECYCLED PLASTIC HEXAGONAL PLAZA PICNIC TABLE UNIVERSAL ACCESS www.belson.com...
- Page 2 BEFORE ASSEMBLY, PLEASE MAKE SURE ALL COMPONENTS ARE INCLUDED. FP - FASTENER PACK ( 1 ) - ONE FASTENER PACK J - TABLE TOP ( 1 ) - ONE TABLE TOP W - LEFT LONG SEAT U - RIGHT LONG SEAT ( 1 ) - ONE LEFT LONG SEAT ( 1 ) - ONE RIGHT LONG SEAT H - TABLE LEG...
- Page 3 BEFORE ASSEMBLY, PLEASE MAKE SURE ALL FASTENERS ARE INCLUDED. 6 - 3/8” X 4-1/4” HEX HEAD BOLT 12 - 3/8” FLAT WASHER 6 - 3/8” NYLON LOCK NUT 6 - #12 X 3” FLAT HEAD PHILLIPS SCREW ALSO NEEDED FOR THIS ASSEMBLY WILL BE THE FOLLOWING MATERIALS: 1 - 3”...
- Page 4 STEP #1: PLACE THE CENTER BENCH BOARD ON A LEVEL SURFACE WITH THE PILOT HOLES FACING UP. ON EACH SIDE OF THE CENTER BENCH BOARD, PLACE ( 1 ) ONE SIDE BENCH BOARD WITH THE PILOT HOLES CLOSEST TO THE CENTER BENCH BOARD AND FACING UP. #12 X 2-1/2”...
- Page 5 #12 x 2-1/2” FLAT HEAD PHILLIPS SCREW STEP #3: PLACE THE LAST ( 2 ) TWO BENCH END IN POSITION, AS SHOWN ABOVE, BEING SRE TO ALIGN THE PRE-DRILLED HOLES TO THE PILOT HOLES IN THE BENCH BOARDS. AFTER THE HOLES ARE PROPERLY ALIGNED, FASTEN WITH ( 1 ) ONE #12 X 2-1/2”...
