Console connections

The video display(s), keyboard, mouse and speakers are attached to the various
connectors on the rear panel that constitute the console port. The unit supports video
display resolutions up to 3840 x 2160.

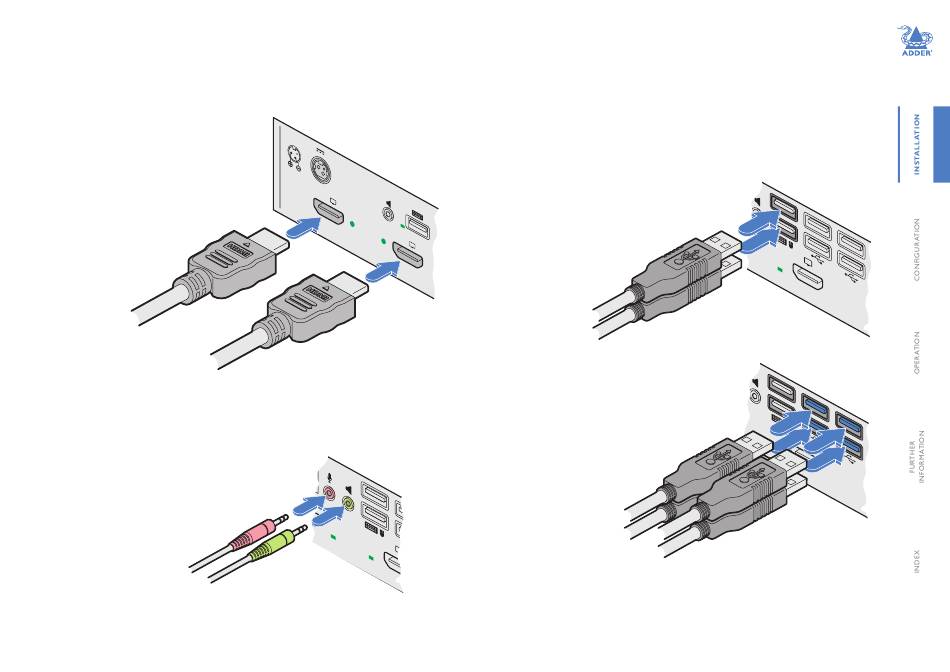

To make console connections
1 Attach the primary video display to the
HDMI connector marked '1'.
2 Where a secondary video display is also
to be used, repeat step 1 for the HDMI
connector marked '2'.
HDMI
connection
to secondary
video display
HDMI connection
to primary video
display
3 Connect the console microphone and
speakers into the 3.5mm audio output
sockets on the rear panel.
Connection
to console
microphone and
speakers
1 2 V
2 . 5
A
R C
U
2
C O
N S
O L
E
1
U
1
4 There are six USB ports within the Console section:
Two Full Speed (v2.0) type A sockets for the keyboard
and mouse as well as four SuperSpeed (v3.0) type A
blue sockets - useful when using high speed and/or
isochronous devices. Connect the required devices to
the USB sockets on the rear panel.
USB connections to
console keyboard
and mouse
USB connections to
other devices (including
SuperSpeed 3.0 and/or
isochronous devices)
