Introduction

WELCOME

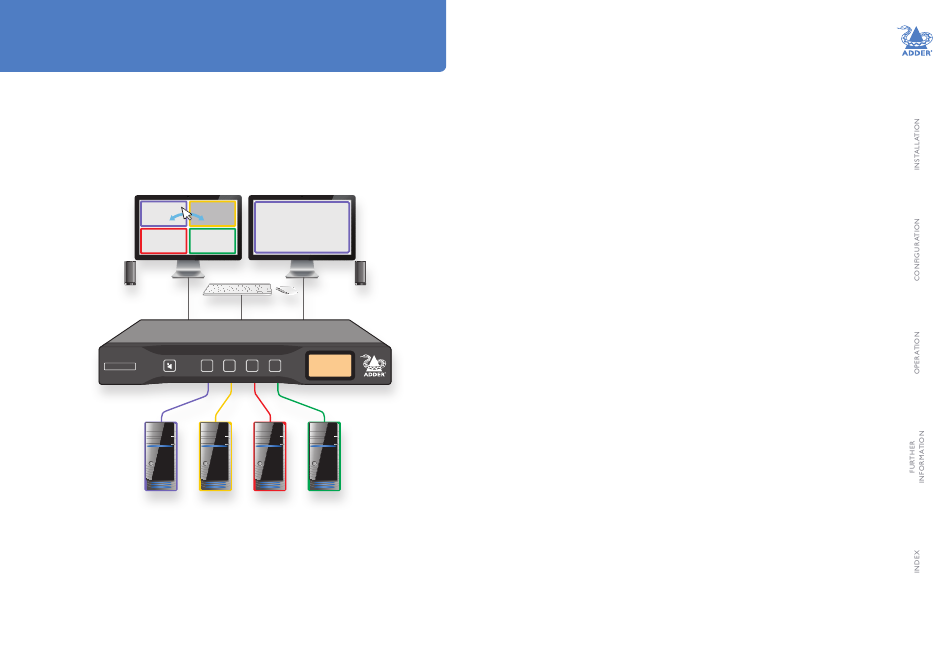

Thank you for choosing the ADDERView™ CCS-MV4224 multi-viewer switch for
working simultaneously with up to four computers. You can choose to view the output of
any computer on either connected video display or view all four outputs on one display.
Focus automatically changes between computers as the mouse pointer is moved into
each related window.
1 2
3 4
ADDERView
C C S - M V
1
4 2 2 4
1 2
Switching between computers can also be controlled from the smart front panel or by
using keyboard shortcuts or remote control API.
1
1
CH: ADDER_01
2 3 4
AUDIO: 1
3 4
Features
• Automatic switching between ports without the need to press any buttons. Simply
move the mouse between windows.
• High quality 4K video resolution.
• Dual video outputs where the second output either duplicates the first or extends the
desktop.
• Connects to either single or dual head computers.
• Analog audio with Hold feature.
• Digital audio with mixer function that combines output from multiple channel inputs.
• SuperSpeed USB 3.0 ports for isochronous and mass media devices.
• Clear channel identification to reduce the chances of operator error by displaying a
user defined name for each channel on the status display. The color of the channel
indicators may also be configured.
Safety
Please refer to the safety booklet provided in the box before use of this product.
