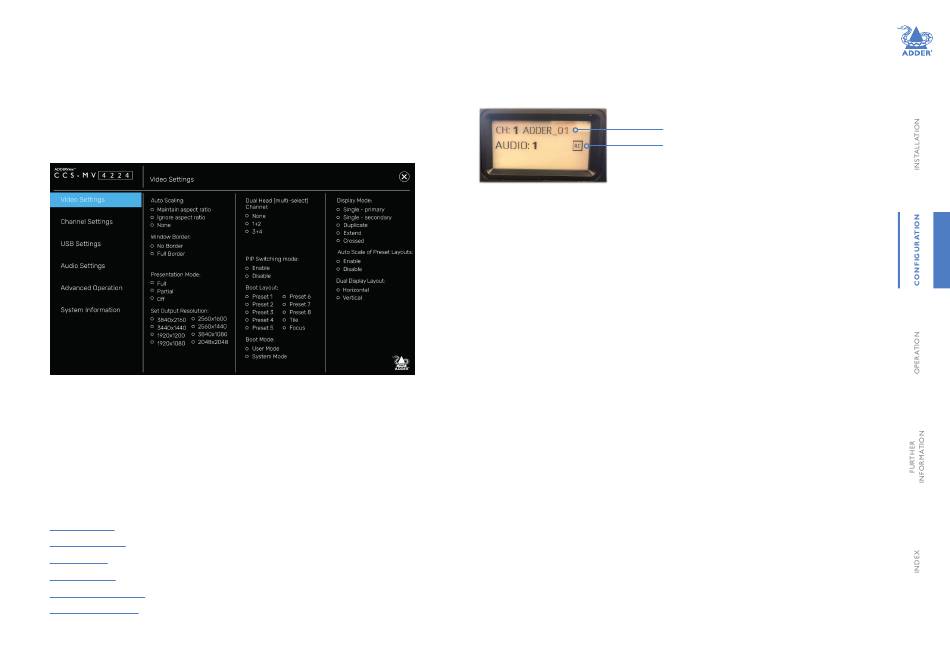

USING THE OSD
The OSD deals with settings that may need to be occasionally changed after the initial
commissioning process, such as video, channel and USB settings. The various options
within the OSD are divided into five distinct pages.
To enter the OSD
1 On the console keyboard, enter the following in succession:
• Left Ctrl then Right Ctrl then o
The menu will appear in the bottom left part of the primary screen.
2 Use your mouse to click the required option(s). There is no Apply button, all changes
are actioned as soon as you click an option.
To exit the OSD
1 Click the X in the top right corner or press the Esc key.
OSD pages
The OSD options are separated into five distinct pages:
•
Video Settings
•
Channel Settings
•
USB Settings
•
Audio Settings
•
Advanced Operation
•
System Information
(upper or lower case is accepted)
Channel names
The front panel display screen clearly shows the currently selected channel number (and
audio channel) source(s). In addition, you can optionally choose to show a channel name:
To enter/edit a channel name
1 Access the OSD and select the Channel Settings page (see page 13).
2 Use the Channel Name option to enter the required name.
Changing channel indicator colors
On the front panel there is a numbered button for each channel. To assist with visual
feedback for the operator you can change the highlight color for each button that will
be shown as each channel is selected. The same color choice will also be used on the
optional remote control, when used as well as for each window border.
To enter/edit a channel color
1 Access the OSD and select the Channel Settings page (see page 13).
2 Use the Channel Color option to select the required color.
Channel number and name plus audio source
Shown when remote control is connected
Note: If the selected channel is connected to a dual
head PC (see page 12), then a '+' symbol will be
displayed next to the channel number, eg CH: 1+
ADDER_01
11
