Remote control connection

The RCU port allows the switch unit to be connected
to, and controlled by an external source. Refer to the API
Manual (MAN-0000023) for further details.

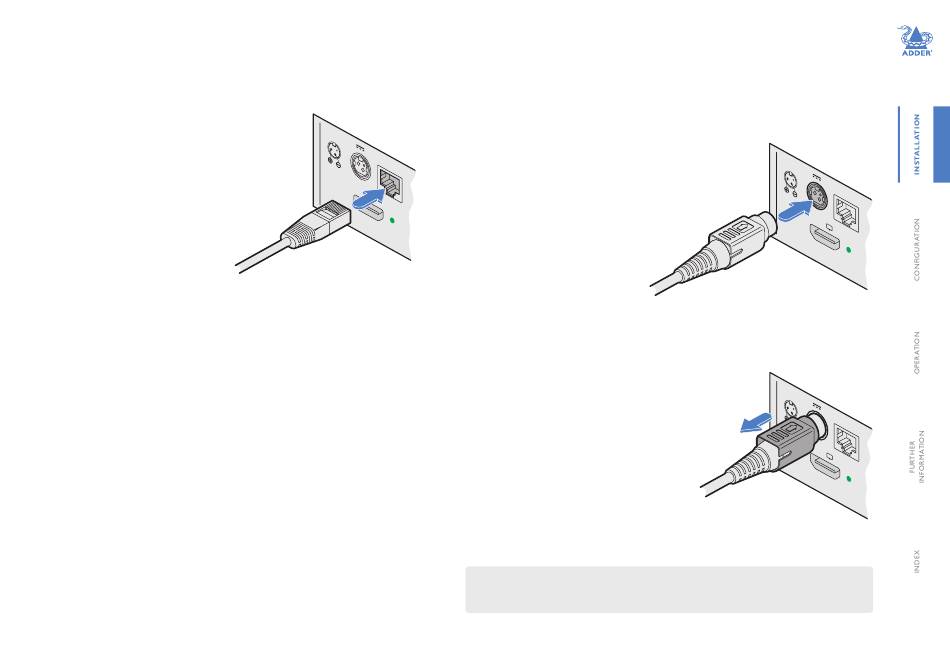

To connect a remote control source
1 Insert the plug from a remote control source cable
into the RCU socket on left side of the rear panel.
From the
remote control
source
Note: When the switch is under remote control, the front panel indicators will continue
to reflect the current selected channel, however, the buttons will have no effect.

Power connection

IMPORTANT: Ensure that the video displays connected to the multi-viewer switch are
powered on before applying power to the multi-viewer switch itself.
The supplied power adapter uses a locking-type plug to help prevent accidental
disconnection from the multi-viewer switch; please follow the instructions below when
disconnecting the power adapter.
To connect the power adapter
1 2 V
1 Attach the output plug of the supplied power adapter to
2 . 5
A
the power input socket on the left side of the rear panel.
R C
U
As you insert the plug, pull back slightly on the outer
body to assist the locking mechanism until the plug is fully
2
inserted.
C O
N S
O L
E
2 Attach the appropriate country-specific plug to the power adapter body and insert it
into a nearby mains outlet.
To disconnect the power adapter
1 Isolate the power adapter from the mains
supply.
2 Grasp the outer body of the power adapter
plug where it connects with the node.
3 Gently pull the body of the outer plug away
from the node. As the body of the plug slides
back, it will release from the socket and you
can fully withdraw the whole plug.
IMPORTANT: Please read and adhere to the electrical safety information
given within the supplied safety guide. In particular, do not use an unearthed
power socket or extension cable.
From the
power adapter
Gently pull back the
plug outer body to
release the lock
1 2 V
2 . 5
A
R C
U
2
C O
N S
O L
E
1 2 V
2 . 5
A
R C
U
2
C O
N S
O L
E
