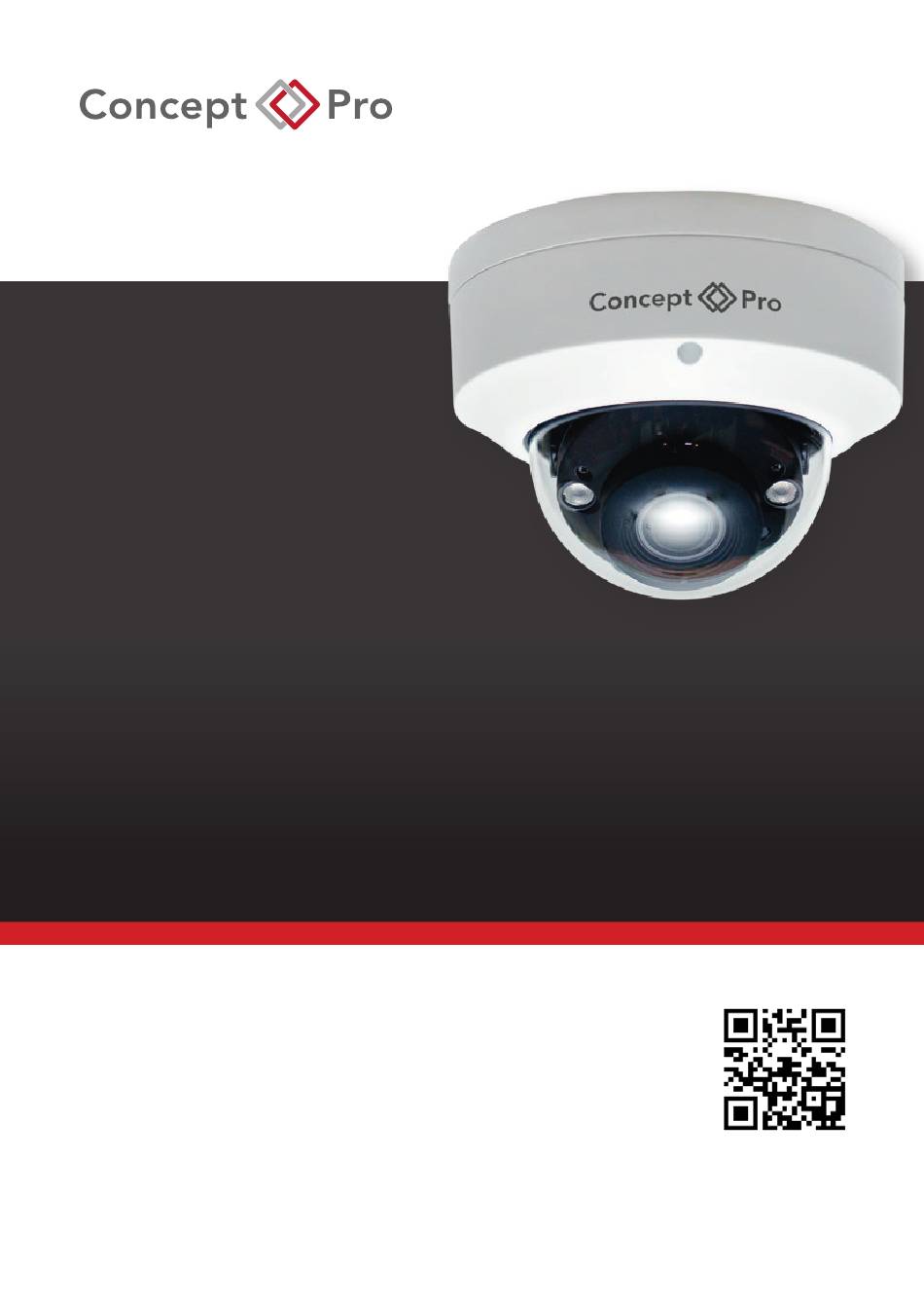

- Page 1 CBP6325EL-AHD2M CBP6325IREL-AHD2M CBP6325IREL-AHD5M CBP6325IREL-AHD5M-Z AHD Internal Dome Camera QUICK START GUIDE Technical Documents AHD CAMERA QUICK START GUIDE...
-
Page 2: Installation
1. CONTENTS Packaging Contents Technical Documents 4-in-1 AHD Camera x1 Silica Gel x1 Quick Start Guide x1 Fitting Screws x3 Mounting Template x1 Screw Anchors x3 DC12V/AC24V Power Input Cable x1 2. INSTALLATION Important: Ensure all precautionary procedures are observed during installation. It is recommended that the camera is tested in low light and harsh lighting conditions during installation to ensure continuity of effective CCTV monitoring. -
Page 3: Camera Configuration
3. Connect the camera BNC video output to a video monitoring device BNC video input, such as a Concept Pro digital video recorder, with RG56/RG6 coaxial cable. Alternatively, connect CAT5E/CAT6 Ethernet cable to the UTP+/- Video Output terminals and change the video output on the camera using the SW1 DIP switch shown on the diagram below. - Page 4 Built-in Control Board Functions DC12V/AC24V Power Input. Note: Reverse polarity protected. Video Format Selector (AHD/TVI/CVI/CVBS) Note: Only AHD2M models have the Video Format Selector DIP switch. Motorised 5-megapixel (AHD5M) models can be changed to a different video format via the OSD menu. Press the OSD joystick button to open the OSD menu, then use the joystick to navigate to VIDEO SETTING menu, select AHD/TVI/CVI/CVBS and resolution, then return, apply, and reboot.
- Page 5 4. ON-SCREEN DISPLAY MENU AHD2M MENU STRUCTURE LENS Lens Mode EXPOSURE Exposure Settings WHITE BAL White Balance Settings BACKLIGHT Backlight Mode Digital Noise Reduction Settings (OFF/LOW/MIDDLE/HIGH) MAIN DAY & NIGHT Day & Night Settings IMAGE Image Settings SPECIAL System Settings Auto Focus &...
- Page 6 4. ON-SCREEN DISPLAY MENU AHD2M MENU STRUCTURE NORMAL: Apply ROI: TWDR settings - WINDOW ZONE: Select ROI zone. Enter to across entire - WINDOW USE: Turn ON to configure true image. change zone position. MODE wide dynamic ROI: Configure - H-POS: Set horizontal position. range settings.
- Page 7 4. ON-SCREEN DISPLAY MENU AHD2M MENU STRUCTURE Displays current video resolution OUTPUT output (1080p). COLOUR Colour format (HD-CbCr/YUV/ SPACE SD-CbCr). CVBS Select video format (PAL/NTSC). Enter to configure SYSTEM Displays current video frame rate system settings. FRAME RATE (25/30FPS). BLACK Adjust image black levels.
-
Page 8: Image Enhance
4. ON-SCREEN DISPLAY MENU AHD5M MENU STRUCTURE AWB - WHITE BALANCE MODE PRO/GREY WORLD RGAIN RED GAIN: 0-100 BGAIN BLUE GAIN: 0-100 DAY/NIGHT MODE EXT/AUTO/COLOUR/B&W IMAGE ENHANCE AUTO: Automatically adjust image contrast depending upon environment. CONTRAST MANUAL: Manually set static image contrast level (0-20). -
Page 9: Special Features
Variable Bit Rate Recording on Concept Pro Analogue Recorders When this camera is used with a Concept Pro digital video recorder product, image quality can be balanced with recording time by selecting the Variable Bit Rate (VBR) bit rate control option from the DVR Record Setup menu. -
Page 10: Safety Precautions
7. Caution Safety Precautions Carefully read all instructions and warnings prior to using this device. Installation should be made by qualified service personnel and should adhere to all local codes. Do not install this device near water or in excessively humid conditions. Do not install this device near any heat sources such as radiators or stoves. - Page 11 8. Dimensions All measurements are in mm. AHD CAMERA QUICK START GUIDE...
- Page 12 Design and specification are subject to change without notice.
