- Page 1 AIR3526-AHD AIR3526-AHD -Z Weatherproof Colour/Mono IR Camera USER MANUAL...
- Page 2 CAUTION Installation should be made by a qualified service person and should adhere to all local codes. In order to prevent electric shock and avoid damage to waterproof seals, do not loosen any screws on the camera body. Adjust the sunshield to avoid exposing the lens to direct sunlight. Do not touch the front glass.
-
Page 3: Packing Contents

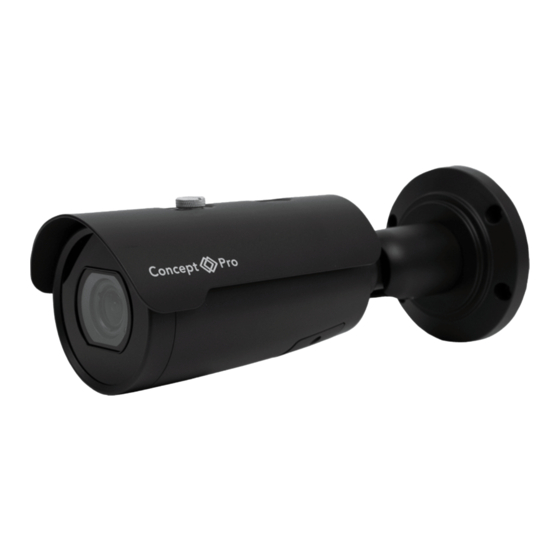

The Concept Pro AIR35 Range is a weatherproof IR camera, suitable for monitoring areas in hostile conditions and in low light. Fixing Bolt for Sunvisor Tri- Axis Points Photo Sensor 12V DC Connector IR LED Video Out Connector Sunvisor External Lens... -
Page 4: Installation
INSTALLATION Important: Ensure all precautions are observed during installation. It is recommended the camera is tested during the most demanding environmental conditions such as low light or bright sunlight to ensure continuity of effective CCTV monitoring. You may find the use of an ND filter helpful. Remove the camera unit carefully from the box,and keep the accessories in a safe place. - Page 5 POSITIONING Point the Camera towards the area to be monitored.
-
Page 6: On-Screen Display (Osd)
ON SCREEN DISPLAY (OSD) OSD Controller LEFT Press and hold UP for 5 seconds. This will switch to a 960H ready output. Press and hold LEFT for 5 seconds. This will switch to the 1080p AHD output. MENU / ENTER DOWN RIGHT Enter the service hatch on the underside of the camera via the 2 hex screws. -
Page 7: Video Setting
ON SCREEN DISPLAY (OSD) MAIN MENU ⏎ ⏎ DAY-NIGHT ⏎ VIDEO SETTING ⏎ LANGUAGE: ENGLISH, CHINESE, SPANISH, KOREAN, ITALIAN RESET ⏎ SAVE-EXIT ⏎ EXIT EXPOSURE BRIGHTNESS: 1-20 EXPOSURE MODE: GLOBE, CENTER, BLC, FLC LV (EXPOSURE MODE = BLC): GAIN: RETURN ⏎... -
Page 8: Specification
SPECIFICATION AIR3526-AHD AIR3526-AHD-Z MODEL IMAGE SENSOR SIGNAL SYSTEM MIN. ILLUMINATION S/N RATIO DAY & NIGHT SHUTTER SPEED WIDE DYNAMIC RANGE DIGITAL NOISE REDUCTION LENS 2.8 - 12mm Varifocal Lens 2.8-12mm Motorized Zoom Lens FIELD OF VIEW IR LED IR RANGE... - Page 9 DIMENSIONS 93mm 250mm...
- Page 10 NOTES...
- Page 11 NOTES...
- Page 12 OCTOBER 17 Design and specification are subject to change without notice.
