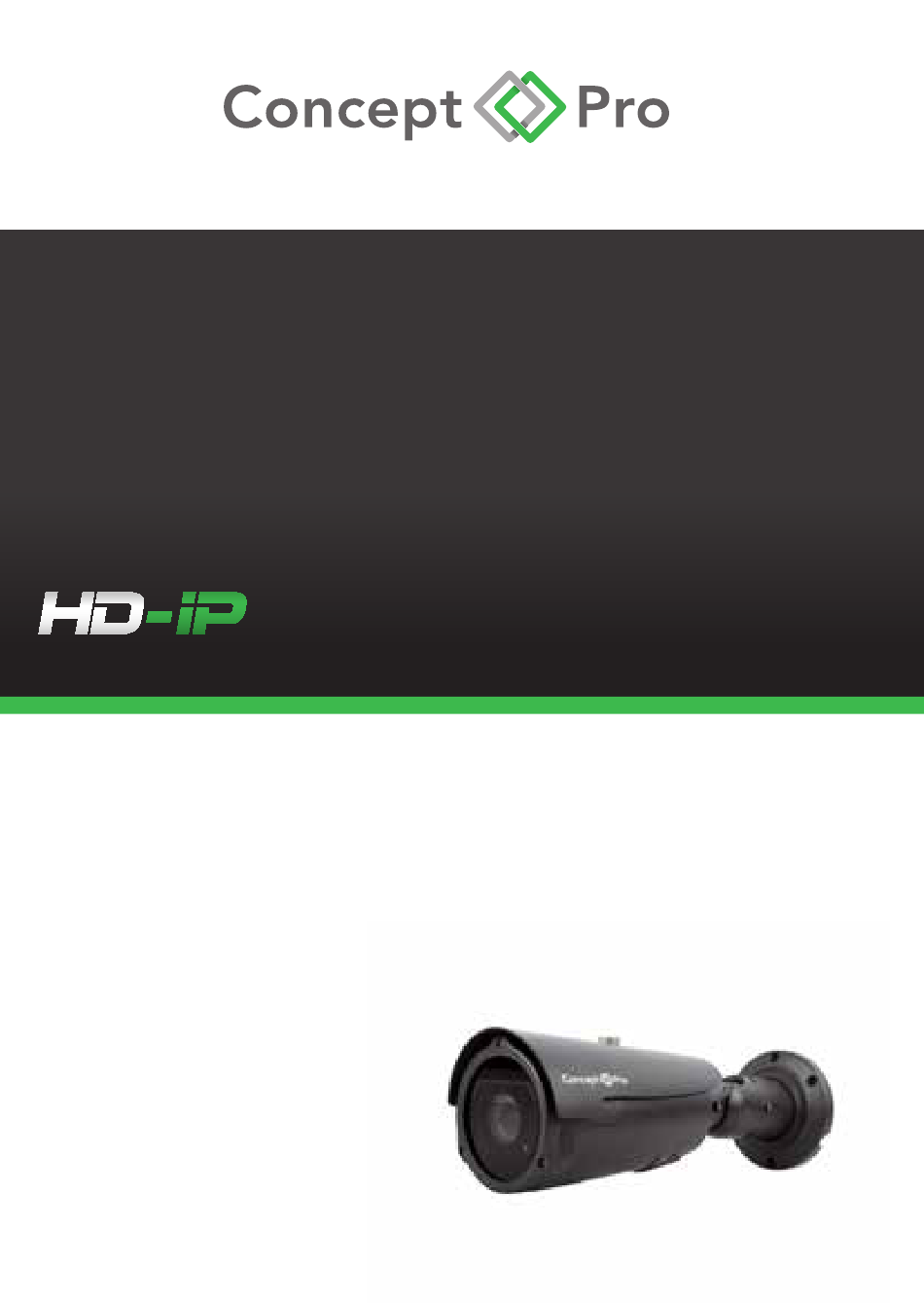

- Page 1 AIR45 IP4M Range Weatherproof Colour/Mono IP Camera USER MANUAL...
- Page 2 CAUTION Installation should be made by a qualified service person and should adhere to all local codes. In order to prevent electric shock and avoid damage to waterproof seals, do not loosen any screws on the camera body. Adjust the sunshield to avoid exposing the lens to direct sunlight. Do not touch the front glass.
- Page 3 The Concept Pro AIR45 is a weatherproof IR camera, suitable for monitoring areas in hostile conditions and in low light. Fixing Bolt for Sunvisor Audio Output Power Connector Photo Sensor IR LED Network RJ45 Connector External Lens Adjustment Sunvisor Micro SD Slot...
-
Page 4: Installation
INSTALLATION Important: Ensure all precautions are observed during installation. It is recommended the camera is tested during the most demanding environmental conditions such as low light or bright sunlight to ensure continuity of effective CCTV monitoring. You may find the use of an ND filter helpful. Remove the camera unit carefully from the box,and keep the accessories in a safe place. - Page 5 POSITIONING Point the Camera towardsthe area to be monitored.
- Page 6 Alarm Cable CONNECTION Audio Input Audio Output Power Connector Network Cable (RJ45) SWITCH PC/Laptop MODEM Check the power supply is the correct level and connect your power supply into the power port on the camera. Connect the RJ45 connector to your network switch. If you are using PoE Switch (Power over Ethernet) ...
-
Page 7: Finding The Camera's Ip Address Using Upnp In Windows
FINDING THE CAMERA’S IP ADDRESS FINDING THE CAMERA’S IP ADDRESS Use the steps below to find the camera’s IP address and connect to the camera over the local area network (LAN) using UPnP on Windows®7 or Bonjour in Mac OS® 1. - Page 8 Bookmarks button Bonjour Double-click the camera’s IP address 4. Under User Name and Password, enter the camera’s User Name (default: admin) and Password (default: admin) and click Login. Enter Camera User name (default: admin) Click To Login Enter Camera Password (default: admin)
- Page 9 EXTERNAL LENS ADJUSTMENT Open the lens adjuster cover and adjust focus and zoom. Loose the screw on the lens adjuster cover. Lens Adjustment Tool Focus and Zoom Adjustments Zoom Turn clockwise to zoom wide anti-clockwise to zoom narrow Focus Turn clockwise to focus far Anti-clockwise to focus near EXTERNAL LENS ADJUSTMENT NOTES...
- Page 10 NOTES...
- Page 11 DIMENSIONS 334mm...
-
Page 12: Troubleshooting
TROUBLESHOOTING Can’t find the camera IP address: Make sure Ethernet and/or DC power cables are correctly connected to the camera. Make sure the PoE switch or DC power source meets the camera’s power requirements. If using PoE,make sure the PoE switch is powered on. Make sure the PC is on the same network as the camera. - Page 13 Number Plate Capture camera will be ready to go. 1. Please connect the Concept Pro IP camera to a POE switch and PC. Navigate to the IP cameras web interface.
- Page 14 3. To alter the Sensor Setting, select Debug mode. 4. Select Exposure Tab and apply these settings; • Mode > Manual • Meter Area > Whole • Fix shutter > 1/20000 • Fixed Gain > 50* • Iris > Auto* •...
- Page 15 5. Select DayNight Tab and apply these settings; • D/N Setting > Night Mode • IR > fixed @ 50%* *This setting may need adjusting depending on the environment, please test and adjust for optimal performance. 6. Select Enhanced Image Tab and apply these settings; •...
