- Page 1 DELPHIN AC PRO IBC PRO_X Installaltion, use and maintenance Bulletin M0502EN _ 00...
- Page 2 Installaltion, use and maintenance ENGLISH Bulletin M0502ITEN 2 /28 M0502...
-
Page 3: Table Of Contents
Direct modification of k-factor 13.9 Meter configuration Leaving the system unused for long periods of time Washing the dispensing system Maintenance Troubleshooting Scrapping and disposal 3 /28 /124 This manual is the property of PIUSI S.p.A. Any reproduction, even partial, is forbidden. -
Page 4: Conformity
- Machinery Directive 2006/42/EC - Electromagnetic Compatibility Directive 2014/30/EC Documents are made available to the appropriate authority on request at Piusi S.p.A. Alternatively, it can be requested writing to: e-mail: doc_tec@piusi.com The person in charge of writing both the technical file and the conformity statement is Otto Varini as the legal representative. -
Page 5: General Precautions
THIS MANUAL IS THE PROPERTY OF Piusi S.p.A. ANY REPRODUCTION, EVEN PARTIAL, IS FORBIDDEN. This manual belongs to Piusi S.p.A., which is the sole proprietor of all rights indicated by applicable laws, including, by way of example, laws on copyrights. All the rights deriving from such laws are reserved to Piusi S.p.A.: the reproduction, including par-... -
Page 6: Safety Warnings
Installaltion, use and maintenance ELECTRIC This equipment must be grounded. Improper grounding, setup or usage of the SHOCK system can cause electric shock. Turn off and disconnect power cord before servicing equipment. Electrocution Connect only to a grounded electrical outlets. or death Use only 3 wire extension cords in accordance with local electrical codes. -
Page 7: First Aid Measures
In order to open the cardboard box, use scissors or a cutter, paying attention not to damage the distribution system or its components. Open the packaging and make sure it contains the following components provided: 7 /28 /124 This manual is the property of PIUSI S.p.A. Any reproduction, even partial, is forbidden. -

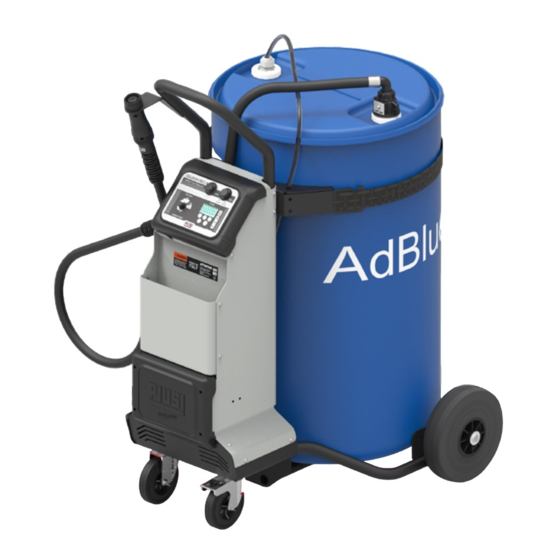

Page 8: Delphin Composition
Installaltion, use and maintenance NOTE In case one or more herewith described components should not be in the box, contact Manufacturer's technical assistance service. ATTENTION Make sure the plate data correspond to the desired ones. In case of anomalies, promptly contact the supplier, signalling the nature of the problems and, in case you should doubt the device safety, do not use it. -
Page 9: Plates Positions
- protective gloves - safety glasses - close-fitting clothes - see user and maintenance manual - safety shoes 3 - CE plate with technical data 9 /28 /124 This manual is the property of PIUSI S.p.A. Any reproduction, even partial, is forbidden. -
Page 10: Technical Characteristics
Installaltion, use and maintenance TECHNICAL CHARACTERISTICS DELPHIN AC PRO DELPHIN AC IBC DELPHIN AC PRO-X 800 mm 500 mm 800 mm Length (A) 860 mm 340 mm 860 mm Depth (B) Height (C) 1200 mm 590 mm 1200 mm Weight 43 Kg 23 Kg 43 Kg... -
Page 11: Installation
FLUID LEAKS CAN DAMAGE OBJECTS AND INJURE PERSONS. Strictly observe the maximum capacity limits indicated on the dataplate. 11 /28 /124 This manual is the property of PIUSI S.p.A. Any reproduction, even partial, is forbidden. -
Page 12: Display
Installaltion, use and maintenance WARNING Under no circumstances must the data on the dataplate, the closure and au- thentication seals be modified or removed. Any tampering or removal will result in immediate nullification of the warranty and the manufacturer will not be held liable for any material or economic dam- age resulting thereof. - Page 13 If the labels is damaged, DO NOT use the machine and replace the label imme- diately. FOR THE OPERATION OF THE DELPHIN PRO-X MODEL, REFER TO THE ATTENTION QUICK GUIDE M0495 13 /28 /124 This manual is the property of PIUSI S.p.A. Any reproduction, even partial, is forbidden.
-
Page 14: Flow Rate Adjusment Lever
Installaltion, use and maintenance 12.2 FLOW RATE ADJUSMENT LEVER NOTE The adjustment lever is located on the side of the trolley. ATTENTION This function is only valid for the DELPHIN PRO and DELPHIN IBC models. In the DELPHIN PRO-X model the flow rate is regulated by the management sys- tem. -
Page 15: System Customization
Normal Mode: Mode with display of Partial and Total dispensed quanti- ties 2 - Flow rate Mode Flow Rate Mode: Mode with display of Flow Rate, as well as Partial dis- pensed quantity. 15 /28 /124 This manual is the property of PIUSI S.p.A. Any reproduction, even partial, is forbidden. -
Page 16: Daily Use
Installaltion, use and maintenance 13.3 DAILY USE FOREWORD The only operations that need to be done for daily use are partial and/or reset- table total register resetting. The user should use only the dispensing system of measurement device. Occasionally the meter may need to be configured or calibrated. -
Page 17: Partial Reset (Normal Mode)
5 - The display screen again shows all the segments of the display followed by all the switched-off segments and finally shows the display page where the reset Reset Total is shown. 17 /28 /124 This manual is the property of PIUSI S.p.A. Any reproduction, even partial, is forbidden. -
Page 18: Dispensing With Flow Rate Mode Display
Installaltion, use and maintenance 13.7 DISPENSING WITH FLOW RATE MODE DISPLAY It is possible to dispense fluids, displaying at the same time:: the dispensed partial. the Flow Rate in [Partial Unit / minute] as shown on the following display page: Procedure for entering this mode: wait for the Remote Display to go to Standby, meaning the display screen shows Total only quickly press the MODE key. -
Page 19: Calibration
The word “Fact” abbreviation for “factory” shows that the factory calibration factor is being used 19 /28 /124 This manual is the property of PIUSI S.p.A. Any reproduction, even partial, is forbidden. -
Page 20: Direct Modification Of K-Factor
Installaltion, use and maintenance If, on the other hand, calibrations have been made by the user, the display page will appear showing the cur- rently used calibration factor ( in our example 0,998) . The word “user” indicates a calibration factor set by the user is being used.. - Page 21 The Meter stores the new work calibration factor and is ready to begin dispensing, using the USER K FACTOR that has just been changed. 21 /28 /124 This manual is the property of PIUSI S.p.A. Any reproduction, even partial, is forbidden.
- Page 22 Installaltion, use and maintenance 13.9 METER CONFIGURATION The METER feature a menu with which the user can select the main measurement unit, Quarts (Qts), Pints (Pts), Litres (Lit), Gallons (Gal); The combination of the unit of measurement of the Partial register and that of the Totals is predefined according to the following table: Combination no.
-
Page 23: Leaving The System Unused For Long Periods Of Time
Liquids resulting from washing must be disposed of in accordance with the laws prevailing in the country of use. 23 /28 /124 This manual is the property of PIUSI S.p.A. Any reproduction, even partial, is forbidden. -
Page 24: Maintenance
Installaltion, use and maintenance MAINTENANCE Safety warnings The distribution system has been designed and built to require minimum main- tenance. Before carrying out any maintenance work, disconnect the dispensing system from any electrical and hydraulic power source. During maintenance procedures, using personal protection equipment (PPE) is mandatory. -
Page 25: Troubleshooting
LED flashes Damaged sensor Replace the delivery pipe 2 times Oxidized internal connection The tank is full Check the level in the tank 25 /28 /124 This manual is the property of PIUSI S.p.A. Any reproduction, even partial, is forbidden. -
Page 26: Scrapping And Disposal
Release the brake on the front Difficult to move front wheel wheel Technical Customer care Service: Piusi S.p.A. - tel. 0039 0376 234561 e-mail: customercare@piusi.com SCRAPPING AND DISPOSAL Foreword If the system needs to be disposed, the parts which make it up must be delivered... - Page 28 © PIUSI S.p.A. EN. This document has been drawn upwith the greatest attention to precision and accuracy of all data herein contained. Nevertheless, PIUSI S.p.A. denies liability for any possible mistake or omission. Download the manual in your language! http://www.piusi.com/manual-delphin-pro-pro-x-ibc...
