  • Page 1 E300 Installazione, uso e manutenzione | IT Instalación, uso y mantenimiento | ES Installation, use and maintenance | EN Bulletin M0362 a ml _...
  • Page 2 E300 ENGLISH (Translated from Italian) ENGLISH Bulletin M0362 A ML /124 This manual is the property of PIUSI S.p.A. Any reproduction, even partial, is forbidden.
  • Page 3: Table Of Contents

    Installation, use and maintenance INDEX INDEX MACHINE AND MANUFACTURER IDENTIFICATION DECLARATION OF CONFORMITY MACHINE DESCRIPTION HANDLING AND TRANSPORT PACKAGING GENERAL WARNINGS FIRST AID RULES GENERAL SAFETY RULES TECHNICAL SPECIFICATIONS OPERATING CONDITIONS ENVIRONMENTAL CONDITIONS POWER CONSUPTION WORKING CYCLE PERMITTED AND NON-PERMITTED FLUIDS INSTALLATION ASSEMBLY HYDRAULIC CONNECTION...
  • Page 4: Bmachine And Manufacturer Identification

    - Machine Directive 2006/42/EC - Electromagnetic Compatibility Directive 2004/108/EC The documentation is at the disposal of the competent authority following motivated request at Piusi S.p.A. or following request sent to the email address: doc_tec@piusi.com The person authorised to compile the technical file and draw up the declaration is Otto Varini as legal representative.
  • Page 5: Dmachine Description

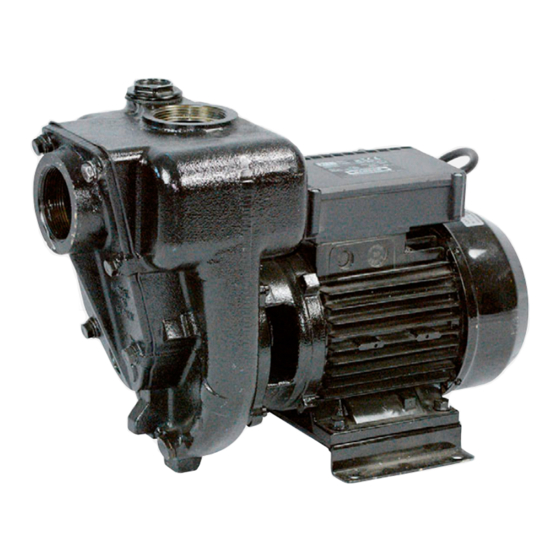

    SINGLE PHASE E300 2” 2” PACKAGING FOREWORD E300 comes packed in a cardboard box with a label indicating the following data: 1 - contents of the package 2 - weight of the contents 3 - description of the product 000000000...
  • Page 6: Egeneral Warnings

    Avoid touching the injured person with your bare hands until he is far away from any conductor. Immediately call for help from qualified and trained personnel. Do not operate switches with wet hands. /124 This manual is the property of PIUSI S.p.A. Any reproduction, even partial, is forbidden.
  • Page 7: General Safety Rules

    Installation, use and maintenance GENERAL SAFETY RULES Essential Wear protective equipment that is: protective suited to the operations that need to be performed; equipment resistant to cleaning products. characteristics Personal Wear the following personal protective equipment during handling and protective installation: equipment that safety shoes;...
  • Page 8: Technical Specifications

    SINGLE- SINGLE- PHASE PHASE lt/min. 200 300 1000 1200 230 V - 50 1 x 230 V TOTAL GAUGE HEAD IN m.C.A. E300 H (m) /124 This manual is the property of PIUSI S.p.A. Any reproduction, even partial, is forbidden.
  • Page 9: Operating Conditions

    Installation, use and maintenance OPERATING CONDITIONS ENVIRONMENTAL CONDITIONS TEMPERATURE min. 20 °C / max +60 °C RELATIVE max. 90% HUMIDITY LIGHTING The environment must conform to directive 89/654/EEC on work environ- ments. In case of non-EU countries, refer to directive EN ISO 12100-2 § 4.8.6.
  • Page 10: Linstallation

    Do not use conical threaded joints that could damage the threaded pump openings if excessively tightened. The MINIMUM recommended characteristics for hoses are as follows: /124 This manual is the property of PIUSI S.p.A. Any reproduction, even partial, is forbidden.
  • Page 11 Installation, use and maintenance SUCTION - Install the suction hose in ascending position towards the pump. Do not install the suction hose beyond the pump height (air bubbles in the suction HOSE hose). - Install the suction hose so as not to exert any mechanical pressure on the pump.
  • Page 12: L3 Considerations Regarding Delivery And Suction Lines

    IT IS THE INSTALLER'S RESPONSIBILITY TO CARRY OUT THE ELECTRI- CAL CONNECTIONS IN COMPLIANCE WITH THE RELEVANT STAND- ARDS. /124 This manual is the property of PIUSI S.p.A. Any reproduction, even partial, is forbidden.
  • Page 13: Electrical Connections

    Installation, use and maintenance ELECTRICAL CONNECTIONS FOREWORD The electrical connections must be performed in a workmanlike manner by skilled personnel, respecting the regulations in effect in the country of instal- lation. To make the necessary connections, refer to the electrical wiring diagram in this manual.
  • Page 14: Minitial Start-Up

    INITIAL START-UP FOREWORD The pump E300 are self-priming and, therefore, able to draw oil from the tank even when the suction hose is empty on start-up. The priming height (distance between the surface of the oil and the inlet opening) must not exceed 2,5 meters.
  • Page 15: Start-Up And Every Day Use

    Installation, use and maintenance START-UP AND EVERY DAY USE GENERAL INFORMATION FOREWORD Make sure that the hoses and line accessories are in good condition. Oil leaks can damage objects and injure persons. Extreme operating conditions can raise the motor temperature and, consequently, cause the thermal protection switch to stop it.
  • Page 16: Maintenance

    If the fault cannot be removed, contact the authorised service department nearest to you. To avoid any damage during transport, PLEASE CARRY OUT THE SHIPMENT WITH ORIGINAL PACKAG- ING. /124 This manual is the property of PIUSI S.p.A. Any reproduction, even partial, is forbidden.
  • Page 17: Demolition And Disposal

    Installation, use and maintenance DEMOLITION AND DISPOSAL Foreword If the system needs to be disposed, the parts which make it up must be delivered to companies that specialize in the recycling and disposal of indus- trial waste and, in particular: Disposing of The packaging consists of biodegradable cardboard which can be delivered packing materi-...
  • Page 18: Sexploded View

    E300 ENGLISH (Translated from Italian) EXPLODED VIEW /124 This manual is the property of PIUSI S.p.A. Any reproduction, even partial, is forbidden.
  • Page 19 Installation, use and maintenance M0362 A ml...
