Piusi E80 M Use And Maintenance Manual

ENGLISH
A INDEX
A Index H2 Preliminary Inspection
B Machine and Manufacturer Identification H3 Positioning the Pump
C Declaration of Incorporation H4 Connecting the Tubing
D Machine Description H5 Considerations Regarding
E Technical Specifications Delivery and Suction Lines
E1 Performance Specifications H6 Line Accessories
E2 Electrical Specifications H7 Electrical Connections
F Operating Conditions I Initial Start-Up
F1 Environmental Conditions L Daily Use
F2 Electrical Power Supply M Problems and Solutions
F3 Working Cycle N Maintenance
F4 Fluids Permitted / Fluids Not Permitted O Noise Level
G Moving and Transport P Disposing of Contaminated Materials
H Installation Q Exploded Diagrams
H1 Disposing of the Packing Material R Dimensions and Weights
B MACHINE AND MANUFACTURER IDENTIFCATION
Available Models:
• E 80
• E 120
MANUFACTURER: PIUSI SPA
VIA PACINOTTI - Z.I. RANGAVINO
46029 SUZZARA (MN)
IDENTIFICATION PLATE (EXAMPLE WITH THE FIELDS IDENTIFIED):
PRODUCT
CODE
PRODUCTION
YEAR
MODEL
TECHNICAL
DATA
MANUAL
ATTENTION
Always check that the revision level of this manual coincides with what is shown on the identification plate.
C DECLARATION OF INCORPORATION
DECLARATION OF INCORPORATION
The undersigned PIUSI S.p.A.
Via Pacinotti, Z.I. Rangavino
46029 Suzzara (Mantova) – Italy
Declares under its own responsibility that the machine:
E 80 - E 120
described below:
Machine for transferring lubricant oil
is manufactured to be incorporated into a machine or to be assembled with other machinery to
build a machine according to the Machine Directive 98/37/CE.
Moreover, we declare that the machinery cannot be put into operation until the machine in
which it will be incorporated and of which it will become a component, has been identified and
its compliance with the Machine Directive 98/37/CE has been declared.
Suzzara 01.09.2005
________________________
OTTO VARINI, Chairman
D MACHINE DESCRIPTION

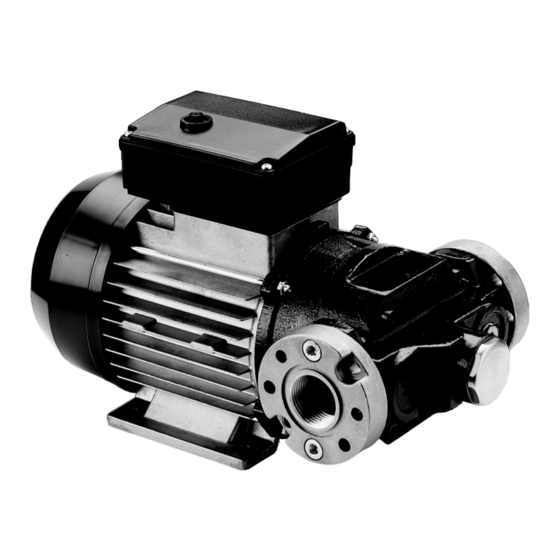

PUMP: Self-Priming, volumetric, rotating electric vane pump, equipped with by-pass valve.
MOTOR: Asynchronous motor, single-phase and three-phase, 4 pole, closed type
(protection class IP55 in conformance with EN 60034-5-86 regulations)
self-ventilated, directly flanged to the pump body.
E TECHNICAL SPECIFICATIONS
E1 PERFORMANCE SPECIFICATIONS
The performance diagram shows flow rate as a function of back pressure.
Typical Delivery Configuration
Functioning Back
Model Flow Rate
Point Pressure
E 80 60 0.6 • •
A
(Maximum
E 120 110 0.5 • •
Flow Rate)
B E 80 75 1.8
• • •
(Maximum
Back E 120 95 1.7 • • •
Pressure)
E 80 0 2.2
C
Delivery Closed
(Bypass)
E 120 0 2.8
A
B
C C
O
Back Pressure
ATTENTION
The curve refers to the following operating conditions:
Fluid Diesel Fuel
Temperature 20 o C
Suction Conditions The tube and the pump position relative to the fluid level is such
that a pressure of 0.3 bar is generated at the nominal flow rate.
Under different suction conditions higher pressure values can be created that reduce the
flow rate compared to the same back pressure values.
To obtain the best performance, it is very important to reduce loss of suction pressure as
much as possible by following these instructions:
• Shorten the suction tube as much as possible
• Avoid useless elbows or throttling in the tubes
• Keep the suction filter clean
• Use a tube with a diameter equal to, or greater than, indicated (see Installation)
ENGLISH
E2 ELECTRICAL SPECIFICATIONS
ALIMENTAZIONEELECTRICAL POWER CURRENT
PUMP MODEL
Voltage Frequency Max. Absorption (*)
Current
(V) (Hz) (Amp)
E80 M AC 230 50 4.0
E120 M AC 230 50 5.6
E80 T AC 400 50 1.6
E120 T AC 400 50 2.2
E80 110V AC 110 60 10.8
E120 110V AC 110 60 12.5
(*) Refers to functioning with maximum back pressure.
F OPERATING CONDITIONS
F1 ENVIRONMENTAL CONDITIONS
TEMPERATURE: RELATIVE HUMIDITY:
min. -20 o C / max +60 o C max. 90%
ATTENTION
The temperature limits shown apply to the pump components and must be respected to
avoid possible damage or malfunction.
F2 ELECTRICAL POWER SUPPLY
Depending on the model, the pump must be The maximum acceptable variations from the
supplied by a single-phase alternating current electrical parameters are:
line whose nominal values are shown in the table voltage: +/- 5% of the nominal value
in Paragraph E2 - ELETRICAL SPECIFICATIONS. frequency: +/- 2% of the nominal value
ATTENTION
Power from lines with values outside the indicated limits can damage the electrical
components.
F3 WORKING CYCLE
The pumps are designed for continuous use under conditions of maximum back pressure.
ATTENTION
Functioning under by-pass conditions is only allowed for brief periods of time (2-3
minutes maximum).
F4 FLUIDS PERMITTED / FLUIDS NOT PERMITTED
PERMITTED:
• Diesel fuel at a viscosity of from 2 to 5.35 cSt (at a temperature of 37.8 o C)
Minimum Flash Point (PM): 55 o C
NOT PERMITTED: RELATED DANGERS:
• GASOLINE FIRE - EXPLOSION
• INFLAMMABLE LIQUIDS WITH PM < 55 O C FIRE - EXPLOSION
• LIQUIDS WITH VISCOSITY > 20 cSt MOTOR OVERLOAD
• WATER PUMP OXIDATION
• FOOD LIQUIDS CONTAMINATION OF THE SAME
• CORROSIVE CHEMICAL PRODUCTS PUMP CORROSION
INJURY TO PERSONS
• SOLVENTS FIRE - EXPLOSION
DAMAGE TO GASKET SEALS
G MOVING AND TRANSPORT
Given the limited weight and size of the The pumps were carefully packed before
pumps (see overall dimensions), moving the shipment.
pumps does not require the use of lifting Check the packing material on delivery and
devices. store in a dry place.
H INSTALLATION
H1 DISPOSING OF THE PACKING MATERIAL
The packing material does not require spe- any way dangerous or polluting.
cial precautions for its disposal, not being in Refer to local regulations for its disposal.
H2 PRELIMINARY INSPECTION
• Check that the machine has not suffered • Make sure that the motor shaft turns
any damage during transport or storage. freely.
• Clean the inlet and outlet openings, • Check that the electrical specifications
removing any dust or residual packing correspond to those shown on the
material. identification plate.
H3 POSITIONING THE PUMP
• The pump can be installed in any position diameter for the attachment holes provided
(pump axis vertical or horizontal) in the base of the pump (see the section
"OVERALL DIMENSIONS" for their position
• Attach the pump using screws of adequate and dimension).
ATTENTION
THE MOTORS ARE NOT OF AN ANTI-EXPLOSIVE TYPE.
Do not install them where inflammable vapors can be present.
H4 CONNECTING THE TUBING
• Before connection, make sure that the partially fill the pump body with diesel fuel
tubing and the suction tank are free of dirt to facilitate priming.
and thread residue that could damage the
pump and its accessories. • Do not use conical threaded joints that
could damage the threaded pump
• Before connecting the delivery tube, openings if excessively tightened.
SUCTION TUBING:
- Minimum recommended nominal diameter: 1-1/4" (model E80)
1-1/2" (model E120)
- Nominal recommended pressure: 10 bar
- Use tubing suitable for functioning under suction pressure
DELIVERY TUBING
- Minimum recommended nominal diameter: 1"
- Nominal recommended pressure: 10 bar
ATTENTION
It is the installer's responsibility to use tubing with adequate characteristics.
The use of tubing unsuitable for use with Diesel fuel can damage the pump, injure
persons and cause pollution.
Loosening of the connections (threaded connections, flanging, gasket seals) can cause
serious ecological and safety problems.
Check all the connections after the initial installation and on a daily basis after that.
Tighten the connections, if necessary.
ENGLISH
H5 CONSIDERATIONS REGARDING DELIVERY AND SUCTION LINES
DELIVERY (partial) opening of the pump by-pass with
the consequent noticeable reduction of the
The choice of pump model must be made flow rate supplied.
keeping the characteristics of the system
in mind. In such cases, to allow correct functioning
of the pump, it is necessary to reduce
The combination of the length of the tubing, system resistance, using shorter tubing
the diameter of the tubing, the flow rate of the and/or of wider diameter and line
diesel fuel and the line accessories installed accessories with less resistance (e.g., an
can create back pressure greater than the automatic dispensing nozzle for greater flow
maximums anticipated such as to cause the rates).
SUCTION can work with pressure at the inlet as high as
0.5 bar, beyond which cavitation phenomena
E 80 / E120 pumps are self-priming and can begin, with a consequent loss of flow
characterized by good suction capacity. rate and increase of system noise.
During the start-up phase, with an empty
As we have said up to this point, it is impor-
suction tube and the pump wetted with fluid, tant to guarantee low suction pressure by
the electric pump unit is capable of suctio- using short tubing of a diameter equal to or
ning the liquid with a maximum difference in larger than recommended, reducing curves
height of 2 meters. It is important to point out to a minimum and using suction filters of
that the priming time can be as long as one wide cross-section and foot valves with the
minute and the presence of an automatic lowest possible resistance.
dispensing nozzle on the delivery line pre- It is very important to keep the suction filters
vents the evacuation of air from the installa- clean because, once clogged, they increase
tion, and, therefore, prevents proper priming. system resistance.
For this reason, it is always advisable to The difference in height between the pump
prime the pump without an automatic deli- and the fluid level must be kept as small as
very nozzle, verifying the proper wetting of possible and, at any rate, within the 2 meters
the pump. The installation of a foot valve is anticipated for the priming phase.
recommended to prevent the emptying of the If this height is exceeded, it will always be
suction tube and keep the pump wet. In this necessary to install a foot valve to allow for
way, the pump will subsequently always start the filling of the suction tube and provide
up immediately. tubing of wider diameter. It is recommended
that the pump not be installed at a difference
When the system is functioning, the pump in height greater than 3 meters.
ATTENTION
In the case that the suction tank is higher than the pump, it is advisable to install an anti-
siphon valve to prevent accidental diesel fuel leaks.
H6 LINE ACCESSORIES
The pumps are furnished without line accessories. accessories whose use is compatible with the
Following is a list of the most common line proper functioning of the pumps.
DELIVERY SUCTION
Automatic dispensing nozzle Foot valve with filter
Manual dispensing nozzle Rigid and flexible tubing
Meter Pump suction filter
Flexible tubing
ATTENTION
It is the installer's responsibility to provide the line accessories necessary for the safe
and proper functioning of the pump.
The use of accessories unsuitable for use with diesel fuel can damage the pump, injure
persons and cause pollution.
H7 ELECTRICAL CONNECTIONS
SINGLE-PHASE MOTORS To change the cable, open the terminal strip
Single-phase motors are supplied with a cover and connect the line according to the
pre-existing 2-meter cable with electric plug. following diagram:
THREE PHASE SINGLE
A.C. LINE PHASE
TO MOTOR
TO
MOTOR
Single-phase motors are supplied with a the identification plate for each pump model.
bipolar switch and capacitor wired and
installed inside the terminal strip box (see The switch has the sole function of
diagram). starting/stopping the pump and cannot in any
way substitute for the main circuit breaker
The characteristics of the capacitor are shown on provided for in the applicable regulations.
ATTENTION
The pumps are supplied without electrical safety equipment such as fuses, motor protectors,
systems to prevent accidental restarting after power failures or others. It is indispensable to
install an electric panel, upstream from the pump's power supply line, equipped with an
appropriate residual current operated circuit breaker.
It is the installer's responsibility to perform the electrical connections with respect for the
applicable regulations.
THREE-PHASE MOTORS
Three-phase motors are supplied with a power line, open the terminal strip cover
terminal strip box and terminal strip. and connect the cables according to the
To connect the electric motor to the electric diagram.
ATTENTION
Verify that the terminal strip blades are positioned according to the diagram provided for the
available power supply voltage. Verify the correct direction of rotation of the motor (see the
paragraph overall dimensions), and, if not correct, invert the connection of the two cables in
the power supply plug or on the terminal strip.
Respect the following (not exhaustive) instructions to ensure a proper electrical installation:
• During installation and maintenance, make direction of rotation (see Paragraph R -
sure that the electric supply lines are not live DIMENSIONS AND WEIGHTS)
• Use cables characterized by the • All motors are equipped with a ground
minimum cross-sections, nominal terminal to connect to the ground line of
voltages and wiring-type adequate to the the electrical network.
electrical characteristics shown in
Paragraph E2 - ELECTRICAL SPECIFICA- • Always close the cover of the terminal strip
TIONS and the installation environment. box before supplying electrical power, after
ascertaining the integrity of the gasket seals
• In three-phase motors verify the correct that ensure protection grade IP 55.
I INITIAL START-UP
• Check that the quantity of diesel fuel in • Always install a suction filter to protect the
the suction tank is greater than the pump.
amount you wish to transfer.
• Never start or stop the pump by inserting
• Make sure that the residual capacity of or removing any plugs.
the delivery tank is greater than the
quantity you wish to transfer. • Do not operate switches with wet hands.
• Do not run the pump dry. • Prolonged contact with diesel fuel can
This can cause serious damage to its damage the skin.
components. The use of glasses and gloves is recom-
mended.
• Make sure that the tubing and line accesso-
ries are in good condition. Diesel fuel leaks • Single-phase motors are provided with an
can damage objects and injure persons. automatic thermal protection switch.
ENGLISH
ATTENTION
Extreme operating conditions can raise the motor temperature and, consequently,
cause the thermal protection switch to stop it.
Turn off the pump and wait for it to cool before resuming use.
The thermal protection automatically turns off when the motor is sufficiently cool.
In the priming phase the pump must blow the Therefore it is necessary to keep the outlet
air initially present in the entire installation open to permit the evacuation of the air.
out of the delivery line.
ATTENTION
If an automatic type dispensing nozzle is installed on the end of the delivery line, the
evacuation of the air will be difficult because of the automatic stopping device that keeps the
valve closed when the line pressure is too low. It is recommended that the automatic
dispensing nozzle be temporarily disconnected during the initial start-up phase.
The priming phase can last from several seconds to a few minutes, as a function of the
characteristics of the system. If this phase is prolonged, stop the pump and verify:
• That the pump is not running completely • That the suction height is not greater than
dry; 2 meters (if the height is greater than 2
• That the suction tubing is not allowing air meters, fill the suction tube with fluid);
to seep in; • That the delivery tube is allowing the
• That the suction filter is not clogged; evacuation of the air.
When priming has occurred, verify that the pump is operating within the anticipated range, in
particular:
• That under conditions of maximum back than 0.5 bar;
pressure, the power absorption of the • That the back pressure in the delivery line
motor stays within the values shown on is not greater than the maximum back
the identification plate; pressure anticipated for the pump.
• That the suction pressure is not greater
L DAILY USE
a. If using flexible tubing, attach the ends of delivery closed for only brief periods.
the tubing to the tanks. In the absence of
an appropriate slot, solidly grasp the d. Open the delivery valve, solidly grasping
delivery tube before beginning the end of the tubing.
dispensing.
e. Close the delivery valve to stop
b. Before starting the pump make sure that dispensing.
the delivery valve is closed (dispensing
nozzle or line valve). f. When dispensing is finished, turn off the
pump.
c. Turn the ON/OFF switch to ON. The
by-pass valve allows functioning with the
ATTENTION
Functioning with the delivery closed is only allowed for brief periods (2-3 minutes maximum).
After use, make sure the pump is turned off.
LACK OF ELECTRIC POWER:
A lack of electric power, with the consequent accidental stopping of the pump, can be cau-
sed by:
- A safety device tripping
- A drop in line voltage
In either case, act as follows:
a. Close the delivery valve
b. Attach the end of the delivery to the slot provided on the tank
c. Turn the ON/OFF switch to the OFF position.
Resume operations as described in Paragraph L - DAILY USE, after determining the cause of
the stoppage.
M PROBLEMS AND SOLUTIONS
Problem Possible Cause Correttive Action
Check the electrical connec-
Lack of electric power
tions and the safety systems
Check for possible damage or
Rotor jammed
obstruction of the rotating
components
THE MOTOR IS NOT
Wait for the motor to cool,
TURNING
The motor protecting thermal verify that it restarts, and
switch has tripped research the cause of the
overheating
Motor problems Contact the Service Department
THE MOTOR TURNS
Low voltage in the electric Bring the voltage back within
SLOWLY WHEN
power line the anticipated limits
STARTING
Low level in the suction tank Refill the tank
Foot valve blocked Clean and/or replace the valve
Filter clogged Clean the filter
Lower the pump with respect to
Excessive suction pressure the level of the tank or increase
the cross-section of the tubing
High loss of head in the circuit Use shorter tubing or of greater
(working with the by-pass open) diameter
LOW OR NO FLOW Dismantle the valve, clean
By-pass valve blocked
RATE and/or replace it
Air entering the pump or the Check the seals of the
suction tubing connections
Use tubing suitable for working
A narrowing in the suction tubing
under suction pressure
Check the voltage at the pump.
Low rotation speed Adjust the voltage and/or use
cables of greater cross-section
The suction tubing is resting
Raise the tubing
on the bottom of the tank
Cavitation occurring Reduce suction pressure
INCREASED PUMP Irregular functioning of the Dispense until the air is
NOISE by-pass purged from the circuit
Air present in the diesel fuel Verify the suction connections
Check and replace the
LEAKAGE FROM THE
Seal damaged
mechanical seal
PUMP BODY
N MAINTENANCE
E 80 / E 120 pumps are designed and constructed to require a minimum of maintenance.
• On a weekly basis, check that the tubing • On a monthly basis, check and keep the
joints have not loosened, to avoid any pump filter clean and any other filters
leakage. installed.
• On a monthly basis, check the pump • On a monthly basis, check that the electric
body and keep it clean of any impurities. power supply cables are in good condition.
O NOISE LEVEL
Under normal working conditions the noise the value of 70 db at a distance of 1 meter
emission from all models does not exceed from the electric pump.
P DISPOSING OF CONTAMINATED MATERIALS
In the event of maintenance or demolition of the the environment.
machine, do not disperse contaminated parts into Refer to local regulations for their proper disposal.
Bulletin
M0064
Rev. 2
MANUALE
D'USO E
ITALIANO
MANUTENZIONE
USE AND
MAINTENANCE
ENGLISH
MANUAL
Bulletin M0064 Rev. 2 Copyright
