Summary of Contents for Piusi E80

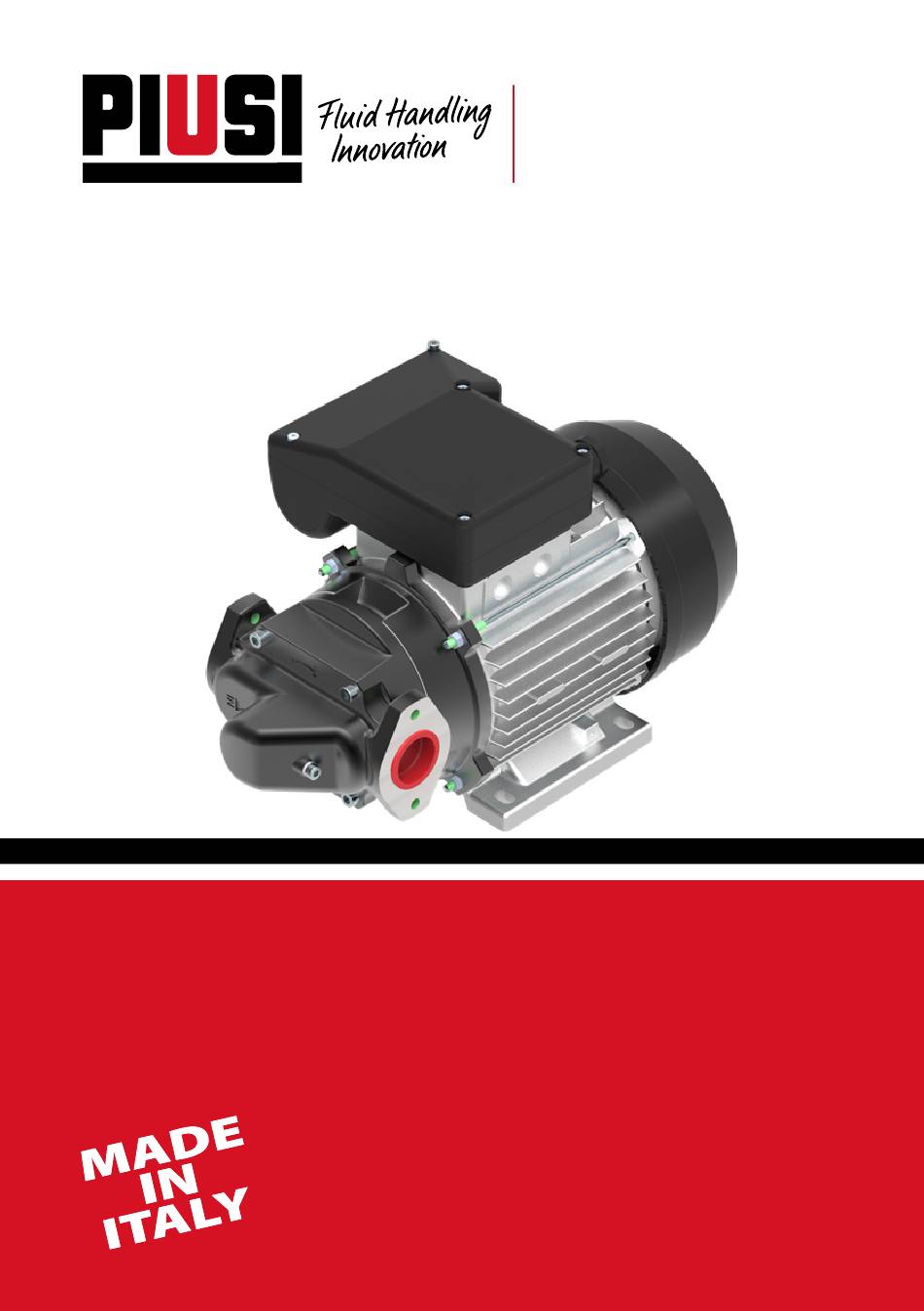

- Page 1 E80 • E120 Installaltion, use and maintenance manual Bulletin M0064I EN_...
-
Page 2: Table Of Contents
Installation, use and maintenance ENGLISH INDEX MACHINE AND MANUFACTURER IDENTIFICATION FACSIMILE COPY OF EU DECLARATION OF CONFORMITY MACHINE DESCRIPTION HANDLING AND TRANSPORT GENERAL WARNINGS SAFETY INSTRUCTIONS FIRST AID RULES GENERAL SAFETY RULES TECHNICAL DATA OPERATING CONDITIONS 10.1 ENVIRONMENTAL CONDITIONS 10.2 ELECTRICAL POWER SUPPLY 10.3 DUTY CYCLE... -
Page 3: Machine And Manufacturer Identification
- Machinery Regulations - Electromagnetic compatibility The technical file is at the disposal of the competent authority following motivated request at PIUSI S.p.A. or following request sent to the e-mail address: doc_tec@piusi.com. THE ORIGINAL DECLARATION OF CONFORMITY IS PROVIDED SEPARATELY WITH THE... -
Page 4: Machine Description

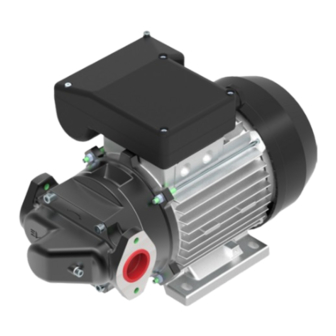

Installation, use and maintenance MACHINE DESCRIPTION PUMP Self-Priming, volumetric, rotating electric vane pump, equipped with by-pass valve. MOTOR Asynchronous motor, single-phase and three-phase, 2 pole, closed type (protec- tion class IP55 in conformance with EN 60034-5-86 regulations) self-ventilated, directly flanged to the pump body. HANDLING AND TRANSPORT Foreword Due to the limited weight and dimensions of the pumps, special lifting equipment... -
Page 5: General Warnings
THIS MANUAL IS THE PROPERTY OF Piusi S.p.A. ANY REPRODUCTION, EVEN PARTIAL, IS FORBIDDEN. This manual belongs to Piusi S.p.A., which is the sole proprietor of all rights indicated by applicable laws, including, by way of example, laws on copyrights. All the rights deriving from such laws are reserved to Piusi S.p.A.: the reproduction, including partial, of this... - Page 6 Installation, use and maintenance ELECTRIC This device must be grounded. Improper grounding setup or usage of the system SHOCK can cause electric shock. Turn off and disconnect power cord before servicing equipment. Electrocution Connect only to a grounded electrical outlets. or death Ensure ground prongs are intact on power and extension cords.
-
Page 7: First Aid Rules
Other instruction manual equipment Protective Prolonged contact with the treated product may cause skin irritation; always wear protective gloves during dispensing. gloves 7/124 7 /20 This manual is the property of PIUSI S.p.A. Any reproduction, even partial, is forbidden. -
Page 8: Technical Data
Installation, use and maintenance TECHNICAL DATA E80 M E80 T E120 M E120 T E120M Voltage/Frequency 400/50 110/50 230/50 400/50 230/50 (V/Hz) 460/60 120/60 Absorption (A) Power (W) 1000 1000 1450 1450 1400 1450 2900 1750 1750 Nominal Flow Rate... -
Page 9: Operating Conditions
DANGERS - CORROSIVE CHEMICAL PRODUCTS - PUMP CORROSION - INJURY TO PERSONS - SOLVENTS - FIRE - EXPLOSION - DAMAGE TO GASKET SEALS 9/124 9 /20 This manual is the property of PIUSI S.p.A. Any reproduction, even partial, is forbidden. -
Page 10: Installation
Installation, use and maintenance INSTALLATION ATTENTION The pump must never be operated before the delivery and suction lines have been connected. PRELIMINARY - Verify that all components are present. Request any missing parts from the manufacturer. INSPECTION - Check that the pump has not suffered any damage during transport or storage. - Carefully clean the suction and delivery inlets and outlets, removing any dust or other packaging material that may be present. -
Page 11: Notes On Suction And Delivery Lines
Dimen- sion the installation in order to control the back pressures due to water hammering. 11/124 11 /20 This manual is the property of PIUSI S.p.A. Any reproduction, even partial, is forbidden. -
Page 12: Connections
Installation, use and maintenance CONNECTIONS 12.1 ELECTRICAL CONNECTIONS ATTENTION IT IS THE INSTALLER’S RESPONSIBILITY TO CARRY OUT THE ELEC- TRICAL CONNECTIONS IN COMPLIANCE WITH THE RELEVANT STAN- DARDS. WARNING Comply with the following (not exhaustive) instructions to ensure a proper electri- cal connection: ATTENTION - During installation and maintenance make sure that power supply to the... -
Page 13: Piping Connections
Check all the connections after the initial installation and on a daily basis after that. Tighten the connections, if necessary. NOTE Screw M8, tightening torque 25 Nm 13/124 13 /20 This manual is the property of PIUSI S.p.A. Any reproduction, even partial, is forbidden. -
Page 14: Initial Start-Up
Installation, use and maintenance INITIAL START-UP FOREWORD - Check that the quantity of fluid in the suction tank is greater than the amount you wish to transfer. - Make sure that the residual capacity of the delivery tank is greater than the quantity you wish to transfer. -
Page 15: Every Day Use
MAINTENANCE Safety instruc- E80 and E120 pumps are designed and constructed to require a minimum of maintenance. Before carrying out any maintenance work, disconnect the dispensing system from any tions electrical and hydraulic power source. During maintenance, the use of personal protective equipment (PPE) is compulsory. -
Page 16: Problems And Solutions
Installation, use and maintenance PROBLEMS AND SOLUTIONS For any problems contact the authorised dealer nearest to you. PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION Lack of electric power Check the electrical connections and the safety systems. Rotor jammed Check for possible damage or obstruction of the rotating components. -
Page 17: Demolition And Disposal
Some components may vary in shape and color or not be present. Always follow codes and quantity shown in list. ○ fixed components □ variable components - - - only reference 17/124 17 /20 This manual is the property of PIUSI S.p.A. Any reproduction, even partial, is forbidden. -
Page 18: Overall Dimensions
Installation, use and maintenance OVERALL DIMENSIONS E80 M Ø7 DIRECTION OF ROTATION E120 M Ø9 DIRECTION OF ROTATION 18 /20 M0064I... - Page 20 ¡Descarga el manual en tu idioma! Lataa käsikirja omalla kielelläsi! Téléchargez le manuel dans votre langue! Download de handleiding in uw taal! Pobierz instrukcję w swoim języku! Baixe o manual em seu idioma! Загрузите руководство на вашем языке https://www.piusi.com/ support/search-manuals Bulletin M0064I EN_ 01.2024...
