en 6 | EV 300 | Product Description
!
To reduce the risk of serious injury or death
and damage to the EV 300, this device
should be installed by a licensed and
insured electrician. Failure to observe this
precaution could result in death or severe
injury.
4.

Product Description

4.1

Intended Use

The EV 300 is an electrical vehicle charging
station used to safely provide AC power to an
Electric Vehicle.
!
If the EV 300 and the scope of delivery
are operated contrary to the way specified
by the manufacturer in the operating
instructions, the protection provided by the
EV 300 and the supplied accessories may be
compromised.
4.2

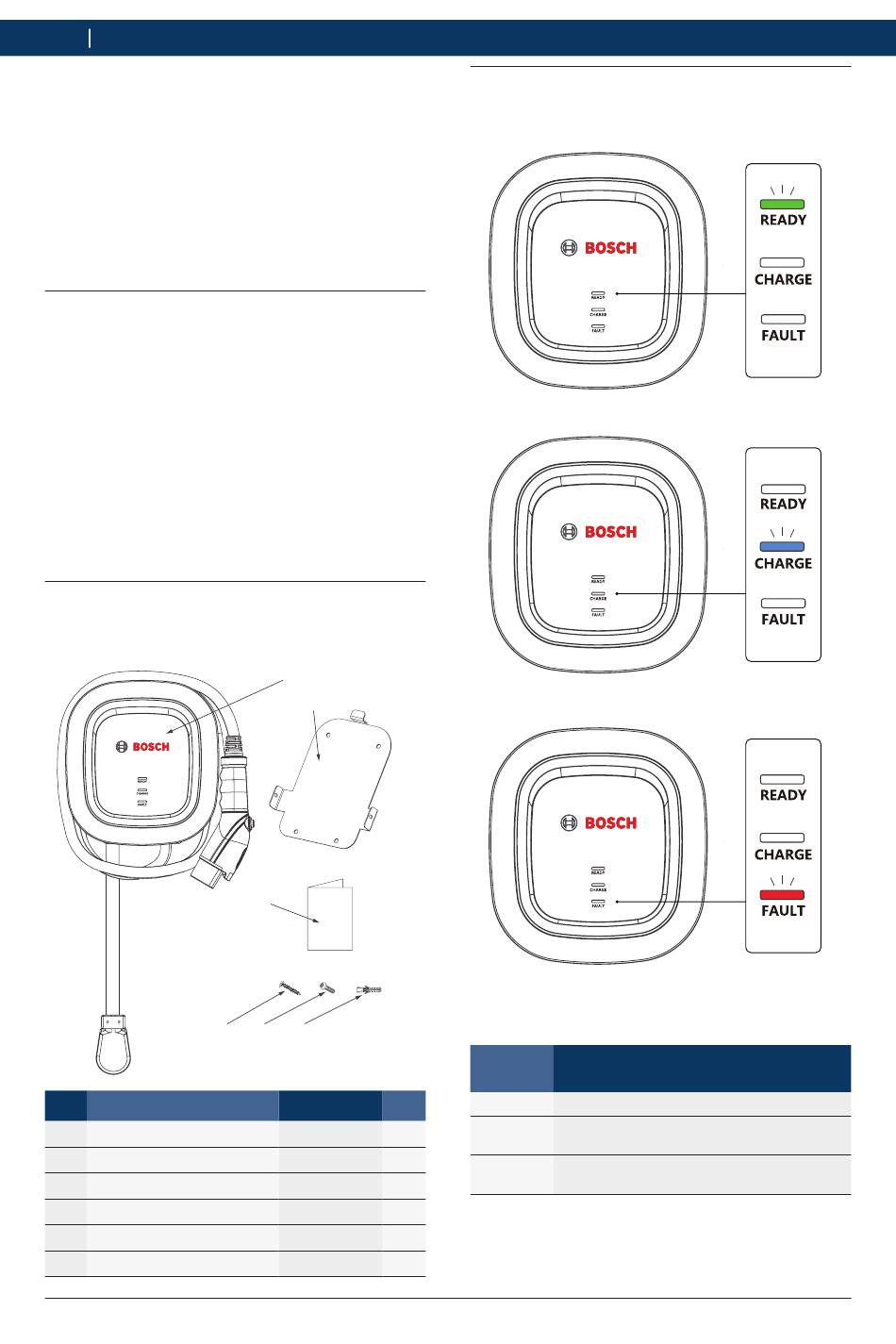

Scope of Delivery

The EV 300 includes the AC charging unit,
charging connector, and wall-mounting bracket.
Item Kit Component
1 AC Charger
2 Wall-Mounting Bracket
3 User Manual
4 Expansion Screw
5 M4 Screw
6 M6 Self-Tapping Screws
|
SP01502138 Ver.00
1
2
3
6 5 4
Part number Qty.
1 699 200 338 1
1 699 200 366 1
SP01502138 1
– 4
– 2
– 4
4.3

EV 300 Status Indicator LEDs

The EV 300 front panel LEDs indicate the pres-
ent status, as shown below.
Fig. 1: Green Status LED
Fig. 2: Blue Status LED
Fig. 3: Red Status LED
Color LED Function
Status
Green EV 300 standby mode (Fig. 1)
Flashing EV 300 providing charge (Fig. 2)
blue
EV 300 fault detected (Fig. 3) (see Trou-
Red
bleshooting on page 7)
