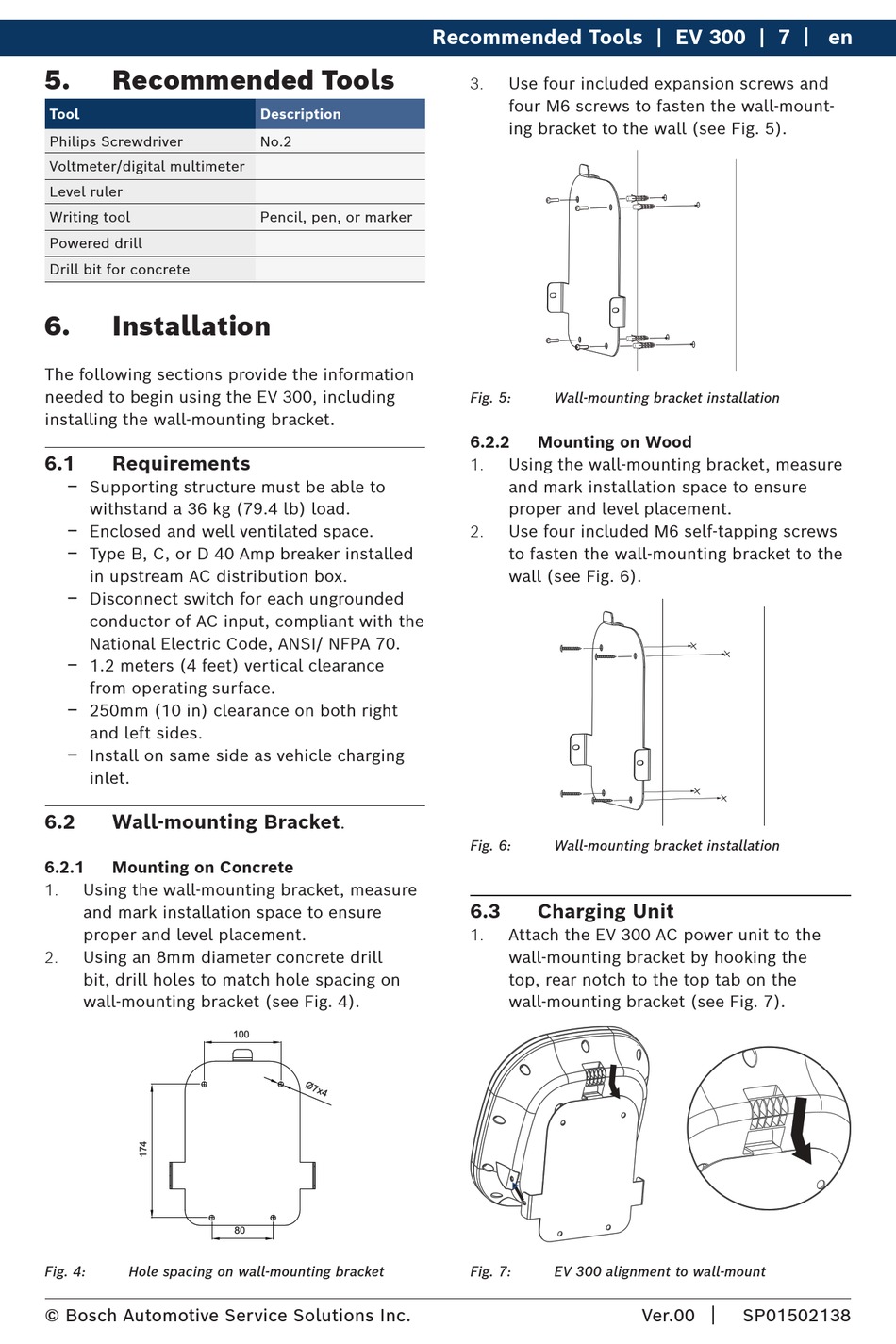

5.

Recommended Tools

Tool
Philips Screwdriver
Voltmeter/digital multimeter
Level ruler
Writing tool
Powered drill
Drill bit for concrete
6.

Installation

The following sections provide the information
needed to begin using the EV 300, including
installing the wall-mounting bracket.
6.1

Requirements

$
Supporting structure must be able to
withstand a 36 kg (79.4 lb) load.
$
Enclosed and well ventilated space.
$
Type B, C, or D 40 Amp breaker installed
in upstream AC distribution box.
$
Disconnect switch for each ungrounded
conductor of AC input, compliant with the
National Electric Code, ANSI/ NFPA 70.
$
1.2 meters (4 feet) vertical clearance
from operating surface.
$
250mm (10 in) clearance on both right
and left sides.
$
Install on same side as vehicle charging
inlet.
6.2

Wall-mounting Bracket

6.2.1

Mounting on Concrete

1. Using the wall-mounting bracket, measure
and mark installation space to ensure
proper and level placement.
Using an 8mm diameter concrete drill
2.
bit, drill holes to match hole spacing on
wall-mounting bracket (see Fig. 4).
Fig. 4: Hole spacing on wall-mounting bracket
© Bosch Automotive Service Solutions Inc.
Description
No.2
Pencil, pen, or marker
.
100
80
Recommended Tools | EV 300 | 7
3. Use four included expansion screws and
four M6 screws to fasten the wall-mount-
ing bracket to the wall (see Fig. 5).
Fig. 5: Wall-mounting bracket installation
6.2.2

Mounting on Wood

Using the wall-mounting bracket, measure
1.
and mark installation space to ensure
proper and level placement.
2. Use four included M6 self-tapping screws
to fasten the wall-mounting bracket to the
wall (see Fig. 6).
Fig. 6: Wall-mounting bracket installation
6.3

Charging Unit

Attach the EV 300 AC power unit to the
1.
wall-mounting bracket by hooking the
top, rear notch to the top tab on the
wall-mounting bracket (see Fig. 7).
Fig. 7: EV 300 alignment to wall-mount
|
Ver.00 SP01502138
en
