Hearth & Home MEDIA-AMBER-MS Installation Instructions

MEDIA-AMBER-MS, MEDIA-CLEAR-MS, MEDIA-COBALT-MS,
Leave this manual with party responsible for use
and operation.
WARNING! Choking Hazard! Keep media out of reach
of children.
CAUTION! Risk of Burns! The fi replace should be turned
off and cooled before media is installed.
CAUTION! Risk of Cuts, Abrasions or Flying Debris.
Wear protective gloves and safety glasses during instal-
lation. Sheet metal edges are sharp.

Cleaning the Media

During shipment of the media, dust and debris can ac-
cumulate. It is recommended that the media be rinsed
thoroughly with water to remove dust and small particles.
An easy method to clean the media is to place the media
into a pail and rinse thoroughly. Spread the media out over
paper towels and allow the media to dry before installing
them into the fi replace.

INSTALLATION

Note: This media is only approved with the use of the
STPR-MOD-KIT modern kit which must be installed prior
to media placement.
1. The rock stop jig, included with the STPR-MOD-KIT,
shown in Figure 1, MUST be used any time media is
placed on the burner to ensure that none ends up in
the burner lighting area. Verify that the rock stop jig is
correctly installed in the appliance. See Figure 1.
WARNING
Delayed Ignition Risk
• Place media according to instructions.
• Do NOT place media in area in front of pilot
• Do NOT place media in a position that they may
fall into area in front of pilot.
• Do NOT use any media other than the media
supplied with this fi replace.
• Do NOT exceed one layer of media on base pan.
Fireplace will not function properly.
Delayed ignition may occur.
Hearth & Home Technologies • Media Instructions for Appliances Fitted with STPR-MOD-KIT • 2488-945 • 2/17
MEDIA-EBONY-MS, MEDIA-FOG-MS, MEDIA-RED-MS
MODELS: Appliances Fitted with STPR-MOD-KIT
- Installation Instructions -

ROCK STOP JIG

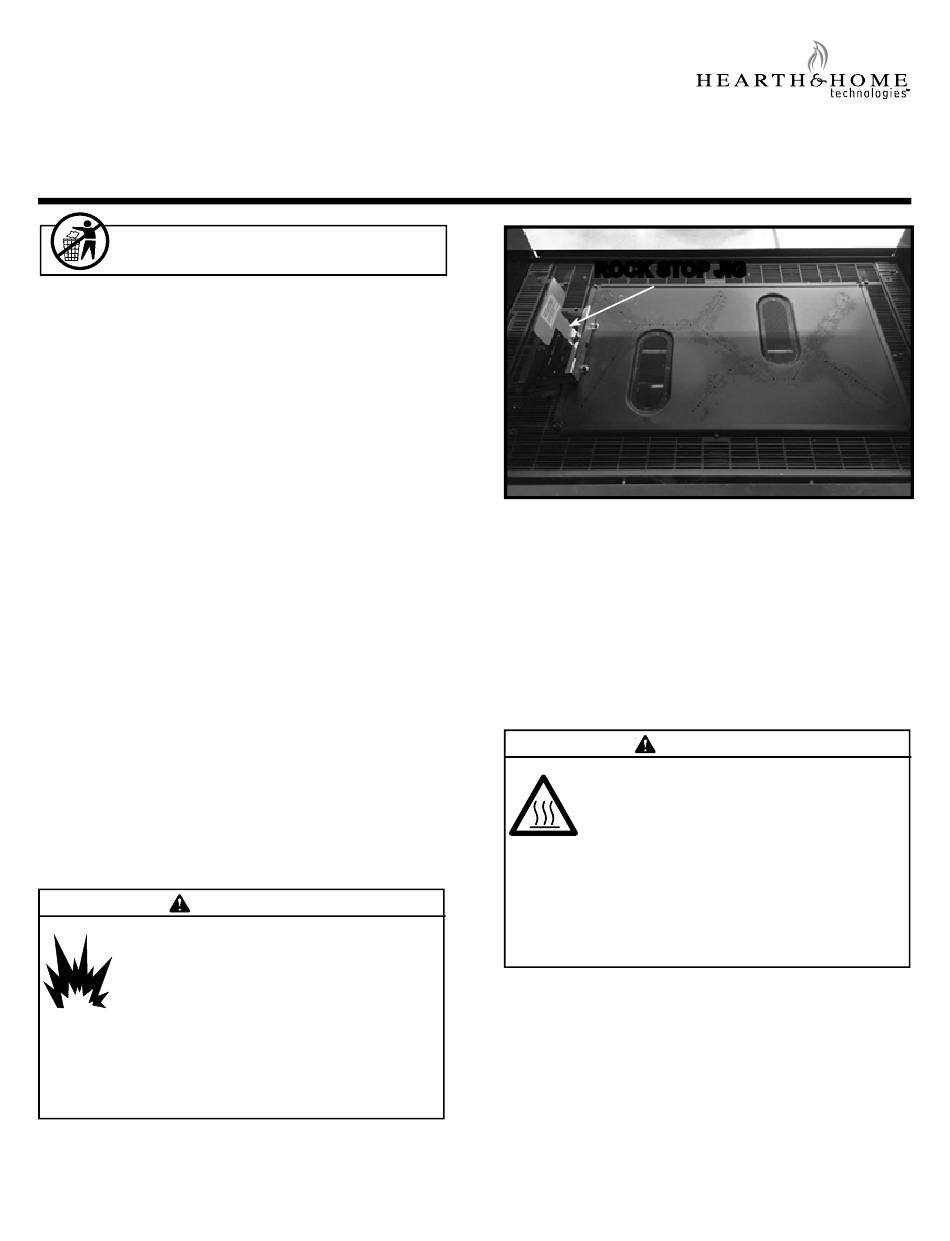

Figure 1. Rock Stop Jig Location
2. Spread an even layer of media on the burner, base
pan and pilot shield as shown in Figure 2. For optimal
performance and fl ame appearance, ensure the media
is spread evenly.
NOTICE! Use only the bags of media provided in this
kit. Additional or excessive media could cause sooting.
WARNING
Risk of Asphyxiation or Fumes.
• Place media according to instructions.
• Do NOT place media in area between glass and
fi rebox.
• Do NOT place media in a position that they may
fall into area between glass and fi rebox.
• Do NOT use any media other than the media
supplied with this fi replace.
Fireplace will not function properly.
Gas leak may occur.
1
