Gen5 POD EDSFF Edition Assembly Reference

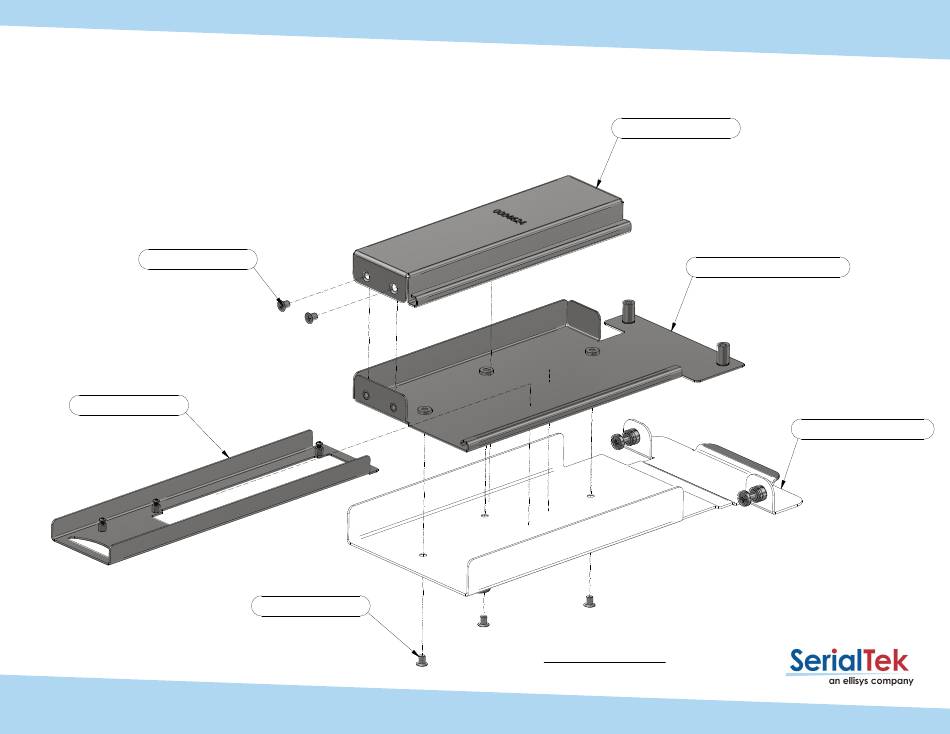

Fix the SFF-TA-1006/7 Spacer Base Assembly to the EDSFF Device Adaptor
Base Tray using three M3 x 4mm Flat Head screws.
Slide the SFF-TA-1007 Uncased Spacer over the SFF-TA-1006/7 Spacer Base
Assembly and secure at one end with two M3 x 4mm Flat Head Screws.
Slide the SFF-TA-1006 Uncased Tray along runners on the Uncased Spacer
and Spacer Base Assembly .
M3 x 4mm Flat Head Screw
SFF-TA-1006 Uncased Tray
0004642 - R1.4
Page 3 of 9
M3 x 4mm Flat Head Screw
SFF-TA-1007 Uncased Spacer
SFF-TA-1006/7 Spacer Base Assembly
UNCASED OPTION (E1)
EDSFF Device Adaptor Base Tray
