Ellisys SerialTek Gen5 POD EDSFF Assembly page 2

Gen5 POD EDSFF Edition Assembly Reference
M3 x 4mm Flat Head Screw
M3 x 4mm Flat Head Screw
0004642 - R1.4
Page 2 of 9

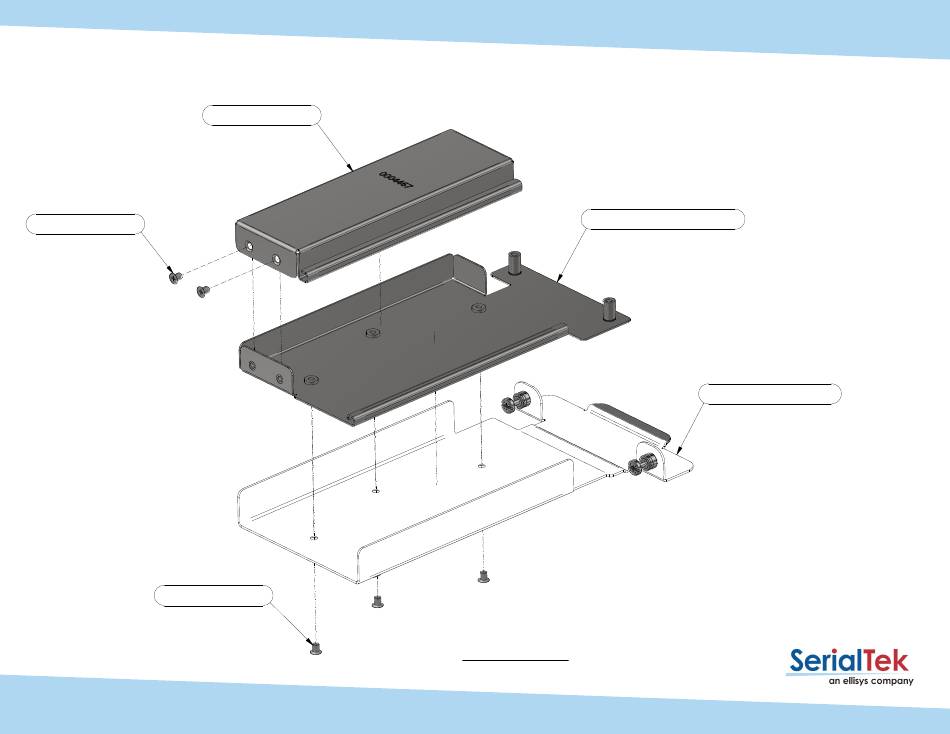

SFF-TA-1006 Cased Spacer
Fix the SFF-TA-1006/7 Spacer Base Assembly to the EDSFF Device
Adaptor Base Tray using three M3 x 4mm Flat Head screws.
Slide the SFF-TA-1006 Cased Spacer over the SFF-TA-1006/7
Spacer Base Assembly and secure at one end with two M3 x 4mm
Flat Head Screws
SFF-TA-1006/7 Spacer Base Assembly
CASED OPTION (E1)
EDSFF Device Adaptor Base Tray
