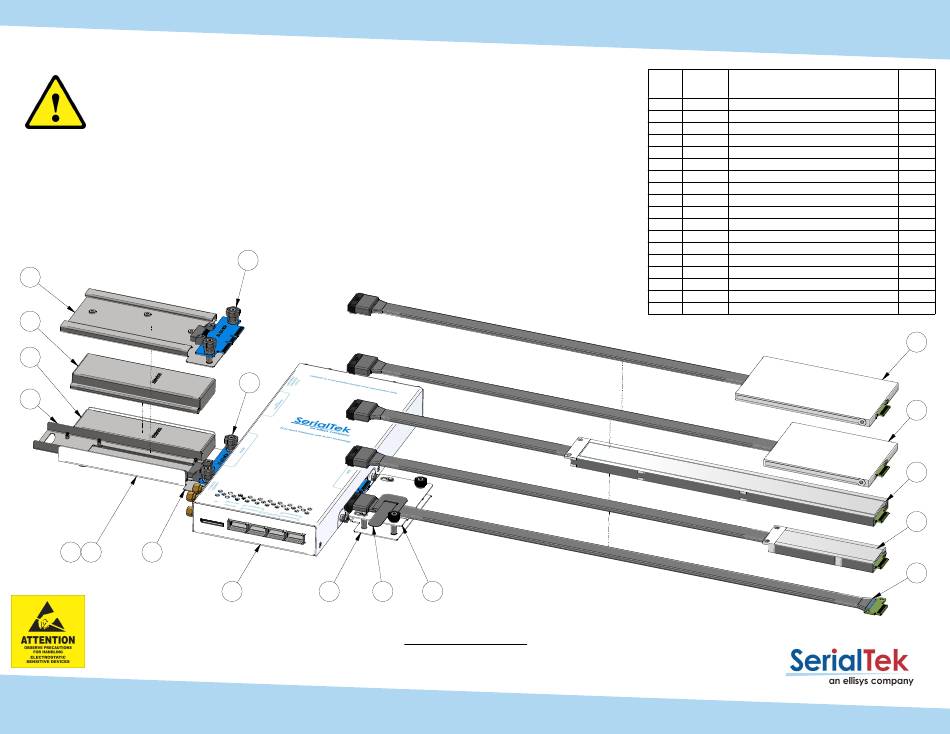

Gen5 POD EDSFF Edition Assembly Reference
CAUTION :
Failure to do the following may DAMAGE the interposer and VOID the warranty.
•
Secure adapters as shown in this guide
•
Do NOT change adapters while powered
•
Do NOT hot plug
•
Turn on interposer power BEFORE host power
7
4
5
6
8
2
3
0004642 - R1.4
Page 1 of 9
10
9
1
11
13
EDSFF Variations
12
Part
Part Description
Item
Number
1
4631
POD Main Unit
4687
EDSFF Device Adaptor Base Tray
2
3
4466
SFF-TA-1006/7 Spacer Base Assembly
4
4702
SFF-TA-1006 Cased Spacer
5
4703
SFF-TA-1007 Uncased Spacer
SFF-TA-1006 Uncased Tray
6
4697
4464
SFF-TA-1008 Spacer Base
7
8
3736
M3x4mm Black Flat Head Screw
9
4991
4CM - 1CF E1 Device PCBA
10
4992
4CM - 1CF E3 Device PCBA
Host/Device Cable Adaptor Tray
11
4679
HCBL-EDSFF Support Tray
12
3972
13
4061
Hook & Loop Cable Tie
14
4698
SFF-TA-1007 E1.L HSA
15
4699
SFF-TA-1006 E1.S HSA
16
4700
SFF-TA-1008 E3.S HSA
17
4762
SFF-TA-1008 E3.L HSA
18
4974
PCI5-EDSFFMF
Qty
1
1
1
1
1
1
1
3
1
1
1
1
1
1
1
1
1
1
17
16
14
15
18

Advertisement

loading
Need help?

Need help?

Do you have a question about the SerialTek Gen5 POD EDSFF and is the answer not in the manual?

Questions and answers

Related Manuals for Ellisys SerialTek Gen5 POD EDSFF

Summary of Contents for Ellisys SerialTek Gen5 POD EDSFF

  • Page 1 Gen5 POD EDSFF Edition Assembly Reference Part Part Description Item CAUTION : Number 4631 POD Main Unit Failure to do the following may DAMAGE the interposer and VOID the warranty. 4687 EDSFF Device Adaptor Base Tray 4466 SFF-TA-1006/7 Spacer Base Assembly •...
  • Page 2 Gen5 POD EDSFF Edition Assembly Reference Fix the SFF-TA-1006/7 Spacer Base Assembly to the EDSFF Device Adaptor Base Tray using three M3 x 4mm Flat Head screws. SFF-TA-1006 Cased Spacer Slide the SFF-TA-1006 Cased Spacer over the SFF-TA-1006/7 Spacer Base Assembly and secure at one end with two M3 x 4mm Flat Head Screws SFF-TA-1006/7 Spacer Base Assembly M3 x 4mm Flat Head Screw...
  • Page 3 Gen5 POD EDSFF Edition Assembly Reference Fix the SFF-TA-1006/7 Spacer Base Assembly to the EDSFF Device Adaptor Base Tray using three M3 x 4mm Flat Head screws. Slide the SFF-TA-1007 Uncased Spacer over the SFF-TA-1006/7 Spacer Base SFF-TA-1007 Uncased Spacer Assembly and secure at one end with two M3 x 4mm Flat Head Screws.
  • Page 4 Gen5 POD EDSFF Edition Assembly Reference Fix the SFF-TA-1008 Spacer Base to the EDSFF Device Adaptor Base Tray using three M3 x 4mm Flat Head screws SFF-TA-1008 Spacer Base EDSFF Device Adaptor Base M3 x 4mm Flat Head Screw SFF-TA-1008 (E3) 0004642 - R1.4 Page 4 of 9...
  • Page 5 Gen5 POD EDSFF Edition Assembly Reference Slide the EDSFF Device Adaptor Base Tray into the slot on the DEVICE side on the underside of the POD Main Unit at an angle of about 60 ~ . Rotate the EDSFF Device Adaptor Base Tray so it is horizontal and tighten the M3 Captive Panel Screws to the POD Main Unit, ensuring not to over tighten.
  • Page 6 Gen5 POD EDSFF Edition Assembly Reference Raise M3 Captive Screws till it resists and screw thread clears the underside of PCBA, then slide the 4CM - 1CF E1 Device PCBA into the connector on the DEVICE side of the POD Unit and secure in position on the SFF-TA-1006-7 Spacer Base Assembly with M3 Captive Screws.
  • Page 7 Gen5 POD EDSFF Edition Assembly Reference Raise M3 Captive Screws till it resists and screw thread clears the underside of PCBA, then slide the 4CM - 1CF E3 Device PCBA into the connector on the DEVICE side of the POD Unit and secure in position on the SFF-TA-1008 Spacer Base Plate with M3 Captive Screws.
  • Page 8 Gen5 POD EDSFF Edition Assembly Reference Slide the Host/Device Cable Adaptor Tray into the slot on the HOST side on the underside of the POD Main Unit at an angle of about 60 ~ . Rotate the Cable Adaptor Tray so it is horizontal and tighten the M3 Captive Panel Screws to the POD Main Unit, ensuring not to over tighten.
  • Page 9 Gen5 POD EDSFF Edition Assembly Reference Raise the Caps of the M3 Spring Loaded Screws and secure the M3 Spring Loaded Screw HCBL-EDSFF Support Tray in position on the Host/Device Cable Adaptor Tray with the M3 Spring Loaded Screws HCBL-EDSFF Support Tray POD Main Unit Hook &...
