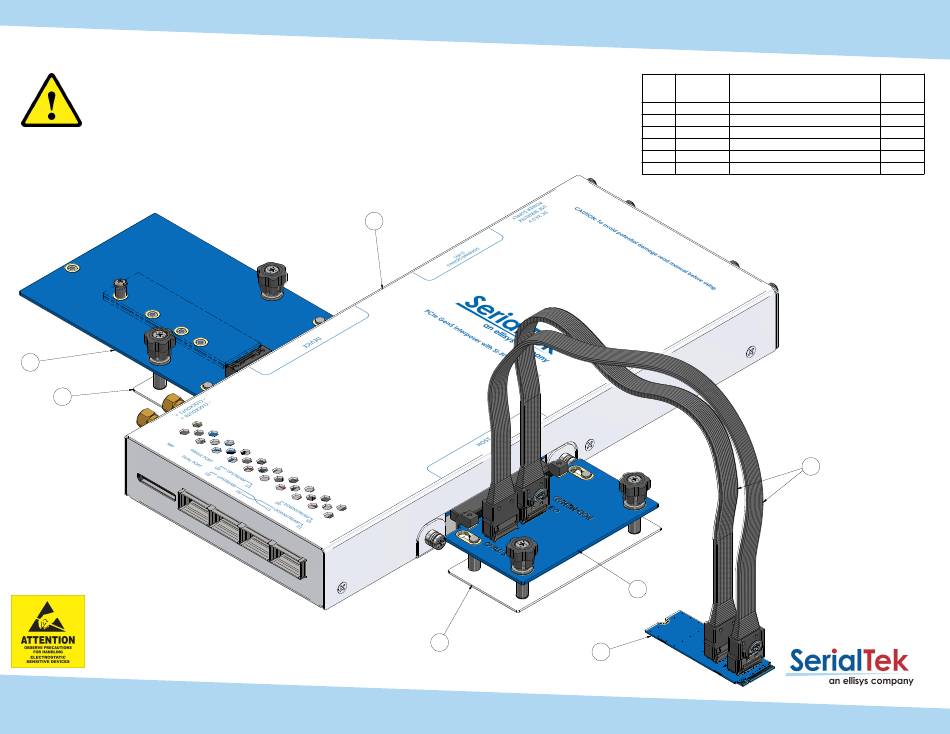

Gen5 POD M.2 Edition Assembly Reference
CAUTION :
Failure to do the following may DAMAGE the interposer and VOID the warranty.
•
Secure adapters as shown in this guide
•
Do NOT change adapters while powered
•
Do NOT hot plug
•
Turn on interposer power BEFORE host power
3
2
0004648 - R1
Page 1 of 5
1
2
Part
Part Description
Item
Number
1
4631
POD Main Unit
Host/Device Cable Adaptor Tray
2
4679
3
4696
M2 Device PCBA
4
4695
M2 Host PCBA
5
3361
MCIO x4x4 Cable
EGP M.2 HSA PCBA (4 sizes)
6
3243
4
6
Connect cables to HSA
of appropriate size
Qty
1
2
1
1
2
1
5
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Ellisys SerialTek Gen5 POD M.2
Summary of Contents for Ellisys SerialTek Gen5 POD M.2
- Page 1 Gen5 POD M.2 Edition Assembly Reference Part Part Description Item CAUTION : Number 4631 POD Main Unit Failure to do the following may DAMAGE the interposer and VOID the warranty. Host/Device Cable Adaptor Tray 4679 4696 M2 Device PCBA • Secure adapters as shown in this guide 4695 M2 Host PCBA...
- Page 2 Gen5 POD M.2 Edition Assembly Reference Slide the Host/Device Cable Adaptor Tray into the slot on the DEVICE side on the underside of the POD Main Unit at an angle of about 60 ~ . Rotate the Cable Adaptor Tray so it is horizontal and tighten the M3 Captive Panel Screws to the POD Main Unit, ensuring not to over tighten.
- Page 3 Gen5 POD M.2 Edition Assembly Reference Raise M3 Captive Screws till it resists and screw thread clears the underside of PCBA, then slide the M.2 Device PCBA into the connector on the DEVICE side of the POD Unit and secure in position on the Host/Device Cable Adaptor Tray with M3 Captive Screws.
- Page 4 Gen5 POD M.2 Edition Assembly Reference Slide the Host/Device Cable Adaptor Tray into the slot on the HOST side on the underside of the POD Main Unit at an angle of about 60 ~ . Rotate the Cable Adaptor Tray so it is horizontal and tighten the M3 Captive Panel Screws to the POD Main Unit, ensuring not to over tighten.
- Page 5 Gen5 POD M.2 Edition Assembly Reference Raise M3 Captive Screws till it resists and screw thread clears the underside of PCBA, then slide the M.2 Host PCBA into the connector on the HOST side of the POD Unit and secure in position M3 Captive Screw on the Host/Device Cable Adaptor Tray with M3 Captive Screws.
