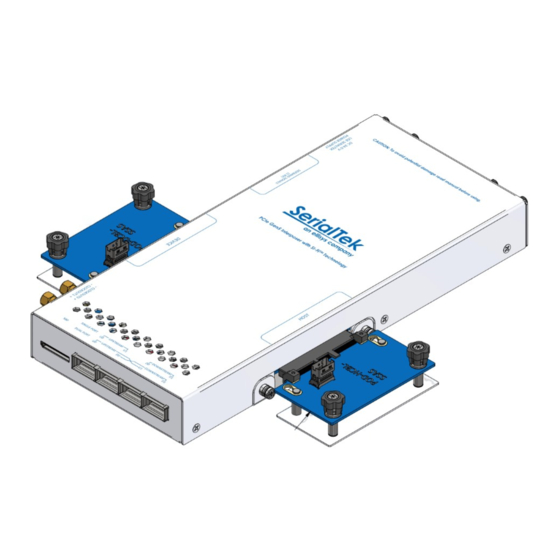

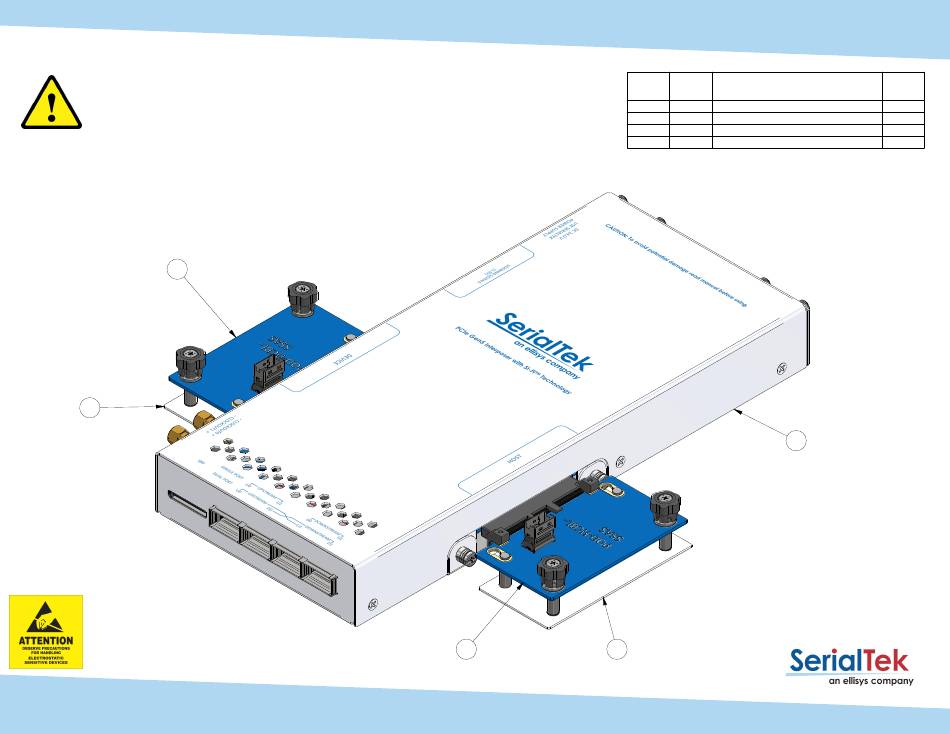

Gen5 POD SSAS Edition Assembly Reference
CAUTION :
Failure to do the following may DAMAGE the interposer and VOID the warranty.
•
Secure adapters as shown in this guide
•
Do NOT change adapters while powered
•
Do NOT hot plug
•
Turn on interposer power BEFORE host power
4
2
0004646 - R1.4
Page 1 of 5
Item
3
2
Part
Part Description
Number
1
4631
POD Main Unit
2
4679
3
4235
4
4236
1
Qty
1
2
1
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Ellisys SerialTek Gen5 POD SSAS
Summary of Contents for Ellisys SerialTek Gen5 POD SSAS
- Page 1 Gen5 POD SSAS Edition Assembly Reference Part CAUTION : Part Description Item Number 4631 POD Main Unit Failure to do the following may DAMAGE the interposer and VOID the warranty. Host/Device Cable Adaptor Tray 4679 • Secure adapters as shown in this guide 4235 SSAS Host PCBA 4236...
- Page 2 Gen5 POD SSAS Edition Assembly Reference Slide the Host/Device Cable Adaptor Tray into the slot on the DEVICE side on the underside of the POD Main Unit at an angle of about 60 ~ . Rotate the Cable Adaptor Tray so it is horizontal and tighten the M3 Captive Panel Screws to the POD Main Unit, ensuring not to over tighten.
- Page 3 Gen5 POD SSAS Edition Assembly Reference Raise M3 Captive Screws till it resists and screw thread clears the underside of PCBA, then slide the SSAS Device PCBA into the connector on the DEVICE side of the POD Unit and secure in position on the Host/Device Cable Adaptor Tray with M3 Captive Screws.
- Page 4 Gen5 POD SSAS Edition Assembly Reference Slide the Host/Device Cable Adaptor Tray into the slot on the HOST side on the underside of the POD Main Unit at an angle of about 60 ~ . Rotate the Cable Adaptor Tray so it is horizontal and tighten the M3 Captive Panel Screws to the POD Main Unit, ensuring not to over tighten.
- Page 5 Gen5 POD SSAS Edition Assembly Reference Raise M3 Captive Screws till it resists and screw thread clears the underside of PCBA, then slide the SSAS Host PCBA into the connector on the HOST side of the POD Unit and secure in position on the Host/Device Cable Adaptor Tray with M3 Captive Screws.
