Gen5 POD SSAS Edition Assembly Reference

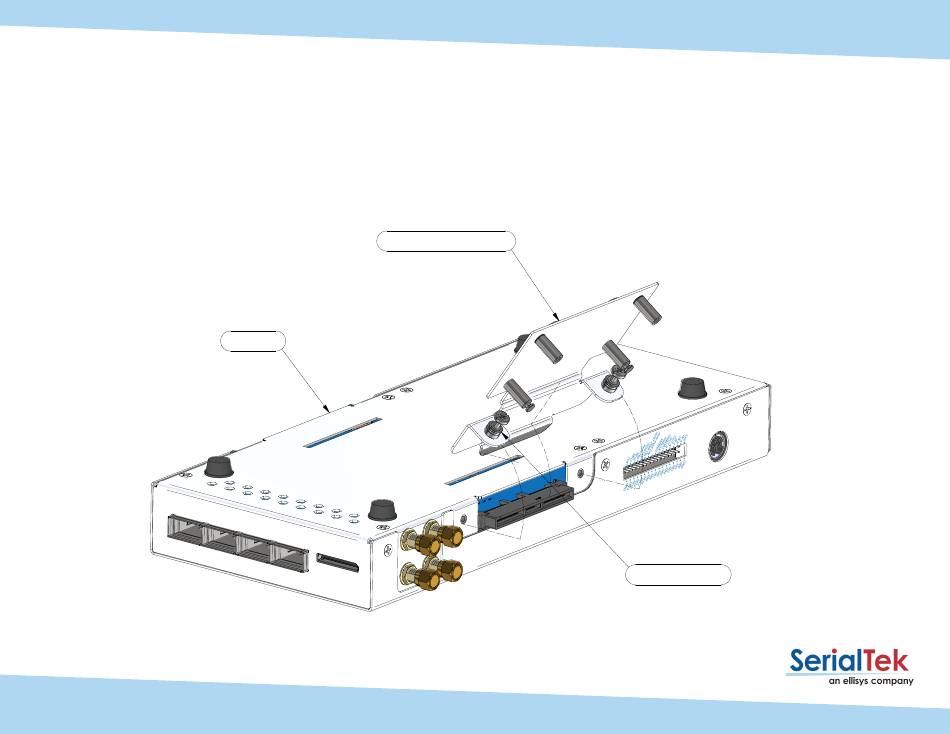

Slide the Host/Device Cable Adaptor Tray into the slot on the DEVICE side
on the underside of the POD Main Unit at an angle of about 60 ~ .
Rotate the Cable Adaptor Tray so it is horizontal and tighten the M3
Captive Panel Screws to the POD Main Unit, ensuring not to over tighten.
0004646 - R1.4
Page 2 of 5
Host/Device Cable Adaptor Tray
POD Main Unit
M3 Captive Panel Screw
