LNX-1204G-10G-SFP
12-Port Industrial Gigabit Unmanaged Ethernet Switch, w/8*10/100/1000Tx, 2*1000
SFP Slots, and 2*10G SFP+ Slots
Hardware Manual
Version 1.0
(July 2020)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LNX-1204G-10G-SFP and is the answer not in the manual?

Questions and answers

Summary of Contents for ANTAIRA LNX-1204G-10G-SFP

  • Page 1 LNX-1204G-10G-SFP 12-Port Industrial Gigabit Unmanaged Ethernet Switch, w/8*10/100/1000Tx, 2*1000 SFP Slots, and 2*10G SFP+ Slots Hardware Manual Version 1.0 (July 2020)
  • Page 2 LLC. may make improvements and/or changes to the product and/or specifications of the product described in this manual, without prior notice. Antaira Technologies, LLC. will not be liable for any technical inaccuracies or typographical errors found in this guide. Changes are periodically made to the information contained herein and will be incorporated into later versions of the manual.
  • Page 3 Antaira Technologies - Industrial Ethernet Switches LNX-1204G-10G-SFP Hardware Manual V1.0 FCC Warning This equipment has been tested and found to comply with the limits for a Class-A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 4 Antaira Technologies - Industrial Ethernet Switches LNX-1204G-10G-SFP Hardware Manual V1.0 CE Mark Warning This is a Class-A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.
  • Page 5: Table Of Contents

    Antaira Technologies - Industrial Ethernet Switches LNX-1204G-10G-SFP Hardware Manual V1.0 Table of Contents 1. Introduction ..............6 1.1 Product Overview ..............6 1.2 Product Hardware Features ............6 1.3 Package Contents ..............6 1.4 Safety Precaution ..............7 2. Hardware Description ............8 2.1 Physical Dimensions ..............
  • Page 6: Introduction

    The LNX-1204G-10G-SFP are IP30 rated and DIN-rail mountable. These Ethernet switches are designed to support an operating temperature range from -40° to 65°C and are perfect industrial...
  • Page 7: Safety Precaution

    Antaira Technologies - Industrial Ethernet Switches LNX-1204G-10G-SFP Hardware Manual V1.0 ➢ 1 – LNX-1204G-10G-SFP ➢ 1 – Quick Installation Guide ➢ 1 – Wall mounting bracket set with screws ➢ 1 – DC cable – 18 AWG & DC jack 5.5 x 2.1mm 1.4 Safety Precaution...
  • Page 8: Hardware Description

    Antaira Technologies - Industrial Ethernet Switches LNX-1204G-10G-SFP Hardware Manual V1.0 2. Hardware Description 2.1 Physical Dimensions Figure 2.1, below, shows the physical dimensions of Antaira’s LNX-1204G-10G-SFP: (W x D x H) is 54mm x 99mm x 142mm Figure 2.1 LNX-1204G-10G-SFP Physical Dimensions...
  • Page 9: Front Panel

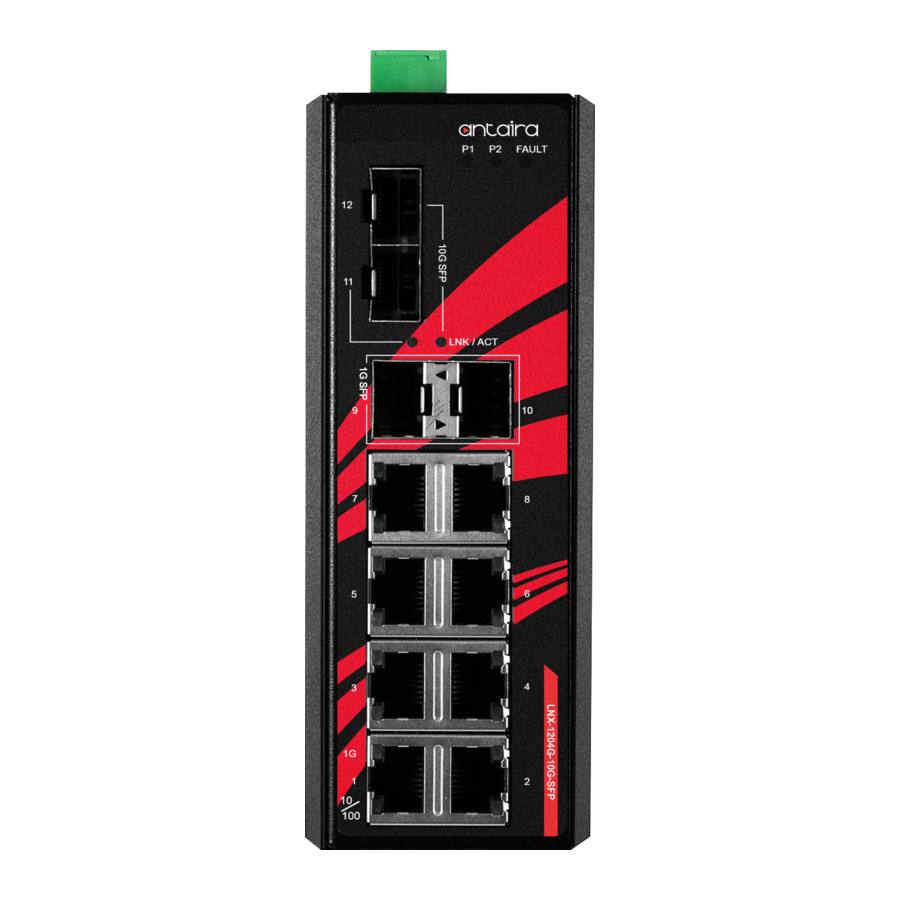

    Figure 2.2 - The Front Panel of LNX-1204G-10G-SFP 2.3 Top View Figure 2.3, below, shows the top panel of the LNX-1204G-10G-SFP switch that is equipped with one 6-pin removal terminal block connector for dual DC power inputs (12~48VDC). 6-Pin Removal Terminal Block Grounding Screw Figure 2.3...
  • Page 10: Led Indicators

    Networking is active 11~12 Not connected to network Table 2.1 - LED Indicators for LNX-1204G-10G-SFP Note: "P1" is the abbreviation for "Power 1", “P2” is for “Power 2”, “LNK” is for “Link”, and "ACT" is for "Activity". 2.5 Ethernet Ports •...
  • Page 11: Cabling

    Antaira Technologies - Industrial Ethernet Switches LNX-1204G-10G-SFP Hardware Manual V1.0 Pin Number Assignment Table 2.3 - RJ45 Pin Assignments The “+” and “-” signs represent the polarity of the wires that make up each wire pair. Note: All ports on this industrial Ethernet switch support automatic MDI operations. Users can use straight-through cables (see figure below) for all network connections to PCs, servers, and other switches or hubs.
  • Page 12: Wiring The Power Inputs

    Antaira Technologies - Industrial Ethernet Switches LNX-1204G-10G-SFP Hardware Manual V1.0 The small form-factor pluggable (SFP) is a compact optical transceiver used in optical communications for both telecommunication and data communication applications. Caution: Please employ optional optical transceiver (SFP/Fixed Fiber) that complies with IEC-60825-1 and classified as Class 1 laser product.
  • Page 13: Wiring The Fault Alarm Contact

    Antaira Technologies - Industrial Ethernet Switches LNX-1204G-10G-SFP Hardware Manual V1.0 • Only use copper conductors, 125°C, tighten to 5 lbs. • The wire gauge for the terminal block should range between 18~20 AWG. Caution: • Utilisez uniquement des conducteurs en cuivre, 125°C, serrez à 5 lb.
  • Page 14 Antaira Technologies - Industrial Ethernet Switches LNX-1204G-10G-SFP Hardware Manual V1.0 Grounding and wire routing help limit the effects of noise due to Electromagnetic Interference (EMI). Run the ground connection from the ground screw to the grounding surface prior to connecting devices. The grounding screw symbol is shown blow in Figure 2.9.
  • Page 15: Mounting Installation

    Antaira Technologies - Industrial Ethernet Switches LNX-1204G-10G-SFP Hardware Manual V1.0 3. Mounting Installation 3.1 DIN-Rail Mounting The DIN-Rail is pre-installed on the industrial Ethernet switch from the factory. If the DIN-Rail is not on the industrial Ethernet switch, please see Figure 3.1 to learn how to install the DIN-Rail on...
  • Page 16: Wall Mounting

    Antaira Technologies - Industrial Ethernet Switches LNX-1204G-10G-SFP Hardware Manual V1.0 3.2 Wall Mounting Follow the steps below to mount the industrial Ethernet switch using the wall mounting bracket as shown below in Figure 3.4. Caution: “Wall” means industrial control panel wall Attention: “Wall”...
  • Page 17: Hardware Installation

    LNX-1204G-10G-SFP Hardware Manual V1.0 4. Hardware Installation 4.1 Installation Steps This section will explain how to install Antaira’s LNX-1204G-10G-SFP: Caution: This device is intended for use indoor. Attention: Cet appareil est destiné à être utilisé à l'intérieur. Caution: The device is intended to be installed in an industrial control enclosure and panel.
  • Page 18: Maintenance And Service

    • If the power indicator LED does not turn on when the power cord is plugged in, the user may have a problem with the power cord. Check for loose power connections, power losses or surges at the power outlet. Please contact Antaira or Antaira’s authorized channel partners for technical support service, if the problem still cannot be resolved.
  • Page 19: Technical Specifications

    Antaira Technologies - Industrial Ethernet Switches LNX-1204G-10G-SFP Hardware Manual V1.0 Technical Specifications Table 5.1 has the technical specifications for Antaira’s LNX-1204G-10G-SFP: IEEE 802.3 10Tx Ethernet IEEE 802.3u 100Tx Fast Ethernet IEEE 802.3ab 1000Tx Gigabit Ethernet Standards IEEE 802.3z 1000X Gigabit Fiber IEEE 802.3ae 10 Gigabit Ethernet...
  • Page 20 Antaira Customer Service and Support (Antaira US Headquarter) + 844-268-2472 (Antaira Europe Office) + 48-22-862-88-81 (Antaira Asia Office) + 886-2-2218-9733 Please report any problems to Antaira: www.antaira.com support@antaira.com www.antaira.eu info@antaira.eu www.antaira.com.tw info@antaira.com.tw Any changes to this material will be announced on the Antaira website.
