- Page 1 Ruijie RG-EAP602 Series Access Points Hardware Installation and Reference Guide...
- Page 2 This document is provided “as is”. The contents of this document are subject to change without any notice. Please obtain the latest information through the Ruijie Networks website. Ruijie Networks endeavors to ensure content accuracy and will not shoulder any responsibility for losses and damages caused due to content omissions, inaccuracies or errors.
- Page 3 It is intended for the users who have some experience in installing and maintaining network hardware. At the same time, it is assumed that the users are already familiar with the related terms and concepts. Obtaining Technical Assistance Ruijie Networks Website: https://www.ruijienetworks.com/ Technical Support Website: https://ruijienetworks.com/support...
-
Page 4: Product Overview
EAP602 supports security, radio frequency (RF) control, mobile access, Quality of Service (QoS) and seamless roaming. Teaming up with Ruijie RG-WS Wireless Controller Series, wireless data forwarding, high performance security and access control can be accomplished with ease. EAP602 supports PoE to take over challenges in a wide variety of deployment scenarios, including large-scaled campuses, enterprises, hospitals and WIFI hotspots. -
Page 5: Product Appearance
Hardware Installation and Reference Guide Product Overview · EN/IEC 60950-22 · GB9254-2008 EN301 489 EMC Standards EN 55022 FCC Part15 RSS-210 Table 1-2 LEDs of RG-EAP602 Indicator Status Meaning Blinking Data is transmitted by WiFi. WiFi (Blue) Solid on WiFi is enabled and no data is transmitted. WiFi is disabled. -
Page 6: Power Supply
3. 10/100/1000BASE-T Ethernet port/PoE port 1.3 Power Supply The AP supports 802.3af PoE or 12V DC power supply (If needed, you can buy the adapter from Ruijie). When PoE power supply is adopted, please make sure the peer end support 802.3af too. -
Page 7: Preparing For Installation
Hardware Installation and Reference Guide Preparing for Installation · · 2 Preparing for Installation To prevent device damage and physical injury, please read carefully the safety recommendations described in this chapter. Recommendations do not cover all possible hazardous situations. 2.1 Grounding and Lightning Protection ... -
Page 8: Temperature And Humidity
Hardware Installation and Reference Guide Preparing for Installation · 2.2.1 Temperature and Humidity · Table 2-1 Required Temperature and Humidity for the RG-EAP602 Series -40° C to 65° C (-40° F to 149° F) Operating Temperature Operating Humidity 0% to 100% (non-condensing) 2.2.2 Outdoor Installation... -
Page 9: Checking Before Installation
Hardware Installation and Reference Guide Preparing for Installation · · 2.4 Checking before Installation Please check your materials carefully against the package contents. If there are any errors, please contact your distributor. -
Page 10: Installing The Access Point
Hardware Installation and Reference Guide Installing the Access Point · · 3 Installing the Access Point Before installing the AP, make sure you have carefully read the requirements described in Chapter 2. 3.1 Installation Flowchart 3.2 Before You Begin Before you install the AP, verify that all the parts in the package contents are there and make sure that: ... -
Page 11: Installing The Ap

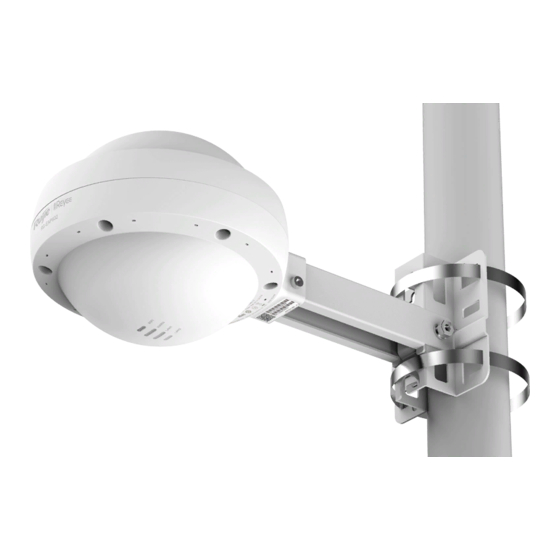

Hardware Installation and Reference Guide Installing the Access Point · · 3.3 Precautions RG-EAP602 can be mounted on a wall and a pole (diameter: 50mm to 70mm, thickness: ≥2.5mm). Otherwise, the AP could fall down and cause injuries. The installation site can vary due to on-the-spot surveys conducted by technical personnel. - Page 12 Hardware Installation and Reference Guide Installing the Access Point · · Pole mount (Vertical) Attach the bracket to a pole with hose clamps and fasten the clamps with screws and nuts. Figure 3-3 Mounting the Bracket on a Pole Align the host with bracket and mounting plate to the bracket on the pole, and tighten the M8×40 screws to complete installation.
- Page 13 Hardware Installation and Reference Guide Installing the Access Point · · Pole mount (Horizontal) Figure 3-5 Mounting the Bracket on a Pole Figure 3-6 Horizontal Pole Mounting The horizontal pole mounting is the same with the vertical pole mounting.
-
Page 14: Connecting Cables
Hardware Installation and Reference Guide Installing the Access Point · · 3.5 Connecting Cables Connecting the network cable Waterproofing material is customer-supplied. Trim the network cable according to the distance between the AP and the power supply. And put the trimmed cable through the bracket. -
Page 15: Appendix A Connectors And Media
Hardware Installation and Reference Guide Appendix A Connectors and Media · · Appendix A Connectors and Media 1000BASE-T/100BASE-TX/10BASE-T The 1000BASE-T/100BASE-TX/10BASE-T is a 10/100/1000 Mbps auto-negotiation port that supports auto MDI/MDIX. Compliant with IEEE 802.3ab, 1000BASE-T requires Category 5e 100-ohm UTP or STP (STP is recommended) with a maximum distance of 100 meters (328 feet). - Page 16 Hardware Installation and Reference Guide Appendix A Connectors and Media · Fiber Connection · You can choose to use single mode or multimode fibers according to the transceiver module types. Figure A-4 shows connection of fiber cables. Figure A-4 Fiber Connection...
-
Page 17: Appendix B Mini-Gbic Module Specifications
· Appendix B Mini-GBIC Module Specifications Ruijie provides various Gigabit SFP transceivers (Mini-GBIC modules) for interfaces of wireless access controllers. You can select the most suitable SFP modules as needed. This appendix describes the models and specifications of some of the Gigabit SFP transceivers for your reference.
