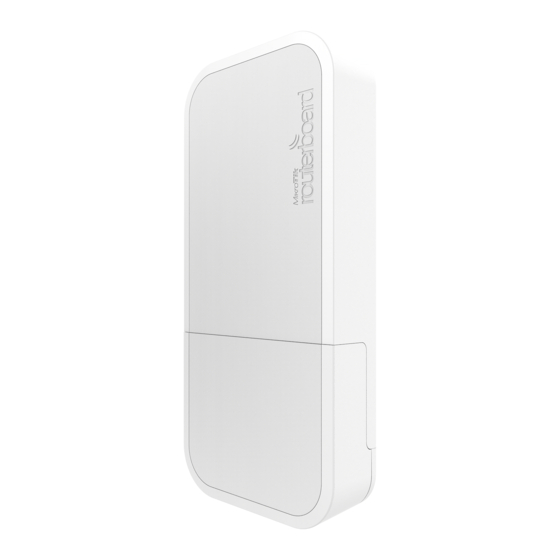

wAP ac-series
wAP ac
(RBwAPG-5HacD2HnD)
wAP ac
(
RBwAPG-5HacD2HnD-BE
Quickstart
Make sure your Internet service provider is allowing hardware change and will issue an IP address.
Open the bottom lid.
Plug the included PoE injector into the ISP outlet and attach an Ethernet cable to it.
Connect the other end of the Ethernet cable to this router.
Plug the provided power supply into the PoE injector.
Connect your computer to the wireless network.
Open
https://192.168.88.1
User name:
admin
and there is no password by default.
You will be logged into the configuration screen.
Click the "
Check_for_updates
connection.
The device will reboot.
Choose your country on the left side of the screen, to apply country regulation settings.
Set up your wireless network password, the password must be at least eight symbols.
Set up your router password in the bottom field to the right and repeat it, it will be used to login next time.
Mounting
)
in your web browser to start the configuration.
" button on the right side and update your RouterOS software to the latest version. Must have an active Internet
Advertisement
Table of Contents
Related Manuals for MikroTik wAP ac Series
Summary of Contents for MikroTik wAP ac Series
- Page 1 wAP ac-series wAP ac (RBwAPG-5HacD2HnD) wAP ac RBwAPG-5HacD2HnD-BE Quickstart Make sure your Internet service provider is allowing hardware change and will issue an IP address. Open the bottom lid. Plug the included PoE injector into the ISP outlet and attach an Ethernet cable to it. Connect the other end of the Ethernet cable to this router.
- Page 2 The device can be mounted in several ways: wall, ceiling, pole or it can be placed in a specially designed Mikrotik holder that comes with the package. The package includes a drill hole template with instructions, to help you with the Ethernet cable installation and attachment to a ceiling or a wall. The package also includes a steel bracket to put on the other side of a dropdown ceiling tile and two screws and wall anchors.
- Page 3 It's recommended to secure Ethernet cable to the pole using zip ties. With the distance from the device approximately 30 cm. Mounting unit on the wall: Use included a template to mark spots for drilling holes. And if needed for Ethernet cable. Align accordingly, it will depend on how the device will be mounted finally.
- Page 4 Avoid mounting the device on the low ground spot, as you won't be able to attach and close the bottom latch. Mounting on the ceiling: A Special bracket is included in the package to mount on the drop ceiling. As it consists of two parts, to be attached on both sides of the ceiling tile. Use the template to mark spots for holes.
-
Page 5: Expansion Slots And Ports
Pull the cover in the opposite direction from the device to remove it. Reassemble. Powering The device accepts power from the Ethernet port: Ethernet port accepts 802.3af/at, Power over Ethernet 11-57 V DC. The power consumption under maximum load can reach 12 W. Please attach ground (earth) wire to the screw under the bottom lid. Expansion slots and ports Integrated two Wireless modules operating at 2.4 GHz and 5 GHz, supporting AP/CPE/P2P/repeater modes. -
Page 6: Buttons And Jumpers
It is the end users responsibility to follow local country regulations, including operation within legal frequency channels, output power, cabling requirements, and Dynamic Frequency Selection (DFS) requirements. All MikroTik radio devices must be professionally installed. Federal Communication Commission Interference Statement... -
Page 7: Innovation, Science And Economic Development Canada
BG С настоящото Mikrotīkls SIA декларира, че този тип радиосъоръжение RouterBOARD е в съответствие с Директива 2014/53/ЕС. Цялостният текст на ЕС декларацията за съответствие може да се намери на следния интернет адрес: https://mikrotik.com/products CS Tímto Mikrotīkls SIA prohlašuje, že typ rádiového zařízení RouterBOARD je v souladu se směrnicí 2014/53/EU. Úplné znění EU prohlášení o shodě... - Page 8 EN Hereby, Mikrotīkls SIA declares that the radio equipment type RouterBOARD is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://mikrotik.com/products ES Por la presente, Mikrotīkls SIA declara que el tipo de equipo radioeléctrico RouterBOARD es conforme con la Directiva 2014/53/UE. El texto completo de la declaración UE de conformidad está...
- Page 9 Konformitätserklärung / Cet appareil MikroTik respecte les limites de puissance de transmission maximale conformément aux réglementations ETSI. Pour plus d'informations, voir la déclaration de conformité ci-dessus / Questo dispositivo MikroTik è conforme ai limiti di potenza massima di trasmissione in conformità...
